Specification
Brand : KUNYANG
BulletPoint1 : This list include 1 transmitter and 1 receiver
BulletPoint2 : Support up to 480P,720P,1920*1080P@60Hz
BulletPoint3 : Up to 250m over a single CAT5e CAT6 cable
BulletPoint4 : H.264 compressed Technology,less than 70ms delay
BulletPoint5 : Compliance with HDMI 1.3 and HDCP 1.2 standard
BulletPoint6 : Plug and play
Color : Black
CompatibleDevices : All
CustomerPackageType : FFP
DataLinkProtocol : IEEE 802.3
ExternallyAssignedProductIdentifier : 7647187527529
ExternallyAssignedProductIdentifier1 : 0762833855263
ExternallyAssignedProductIdentifier2 : 762833855263
HardwareInterface : usb2.0
IncludedComponents : TX and RX body

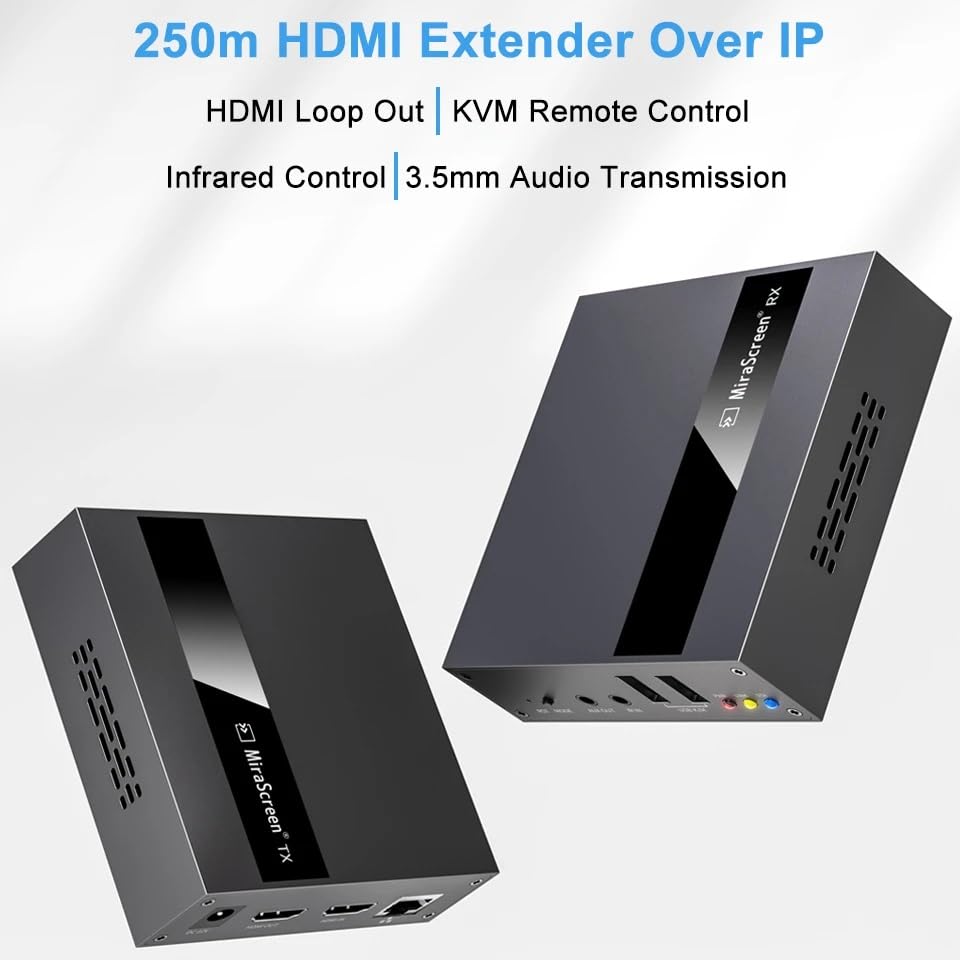

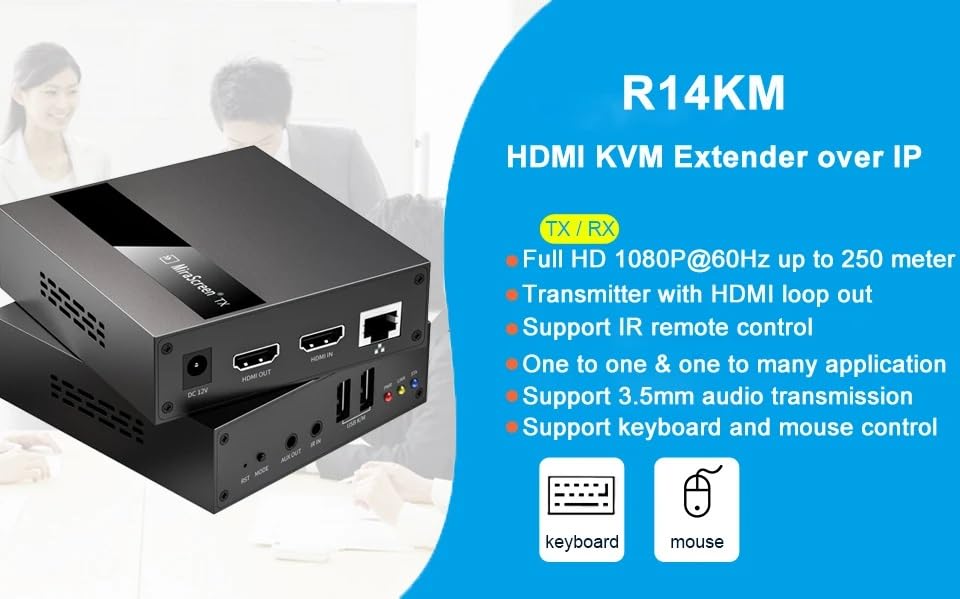

ItemName : HDMI KVM Extender Over IP RJ45 Ethernet Network 1080P 60Hz Up to 250M HDMI USB Mouse Keyboard Extender Over UTP/STP CAT5 CAT6 for PC
ItemPackageDimensions_Height : 6 centimeters
ItemPackageDimensions_Length : 24 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : computer-dvi-hdmi-cable-adapters
Manufacturer : KUNYANG
ModelNumber : LKV473
NumberOfItems : 1
PackageLevel : unit
PartNumber : JXY-812P
PowerPlugType : no_plug
ProductDescription : 250m HDMI KVM Extender over RJ45 Ethernet Network cable Extender HDMI Video Transmitter and Receiver sharing keyboard Mouse

Description:
This HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6/7 cable, it supports high resolution up to 1920x1080@60Hz, Infrared signal,stereo audio signal ,Keyboard and mouse signal and hdmi loop out transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:
KVM Extender 250M 1080P HDMI-compatible Over cat5e/6 Ethernet RJ45 LAN Cable USB-A
Keyboard Mouse KVM Video Extend TX RX Adapter
Transmission Distance:up to 250m over a single CAT5e CAT6 cable;
Video resolution:up to 480P,720P,1920*1080P@60Hz;
Audio sampling rate:32kHz, 44.1kHz and 48kHz ;
Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;
USB KVM function:Support keyboard and mouse romote control;
HDMI Loop out:The transmitter with one HDMI local output;
Infrared remote control:support 20~60 KHz IR romote control;
Support 3.5mm Stereo audio transmission;
H.264 compressed Technology,less than 70ms delay;
Male to male:one TX to one RX applicataion;
Male to female:TCP/IP,one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router;
IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps;
Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;
Local EDID :match many kinds of display devices;
Built-in automatic adjustment system:make the image smooth, clear and stable;
Built-in ESD protection system：make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play
Simple to install, plug and play

Specifications:
Video
Standards----------HDMI 1.4; HDCP 1.4
Maximum pixel clock------165MHz
Maximum data rate-------10.2Gbps
Resolution ------1920X1080@60Hz
Connector-----HDMI-A
Impedance--------100Ω

USB
Interface-------PC: Type B USB interface; connect to pc;K/M: connect USB keyboard and mouse
USB signal----------HID Signal

IR
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------Digital
IR frequency--------20~60kHz ;

AUX
Interface----3.5mm seat
Signal direction--------Unidirectional
Signal type----------stereo audio

UTP
Interface-----RJ45
Transmission distance--------CAT5:100m,CAT5:120m,CAT6:200m

Other
Power supply-----The power adapter: DC 12V/1A
Power dissipation------MAX 3.6W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------98*92*28mm
The warranty--------1 year free warranty

Package:
HDMI KVM transmitter ……………………….……. 1 pcs
HDMI KVM receiver ………………………………... 1 pcs
IR cable.................................................................. 2 pcs
USB Cable …………………………….…………. ... 1 pcs
Power adapter ………………………………............ 2 pcs
User manual …………………………………..…...... 1 pcs
ProductSiteLaunchDate : 2025-03-24T07:00:00.000Z
ShipsGlobally : 1
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 43210000
WarrantyDescription : 1
