Specification
Brand : HW HOBBYWING
BulletPoint : 4PCS FVT LITTLEBEE BLHeli-s SPRING 30A ESC 2-6S Supports Mulitshot DSHOT Oneshot42 OneShot125 Multicopter For FPV RC Drone QAV-X
BulletPoint1 : XeRun AXE R3 Applications: 1/10th and 1/8th crawler, 1/7th and 1/6th crawler Cont./Peak Current: 135A/600A LiPo Cells: 2-6S Lipo Motor Type: Only the XERUN AXE R3/R2 Series BEC Output: 6V/7.4V/8.4V adjustable, Continuous Current of 6A Size/Weight (including wire): 49.5*37.9*22.8mm(without fan)/126.5g Programming port: iOS or Android smart phone (installed with the HW LINK app)
BulletPoint2 : Widely applicable 6S high-power Crawler ESC The ESC supports up to 6S LiPo battery. It has a maximum output current of up to 135A. The AXE R3 can be used on 1/10th and 1/8th crawler, also compatible with 1/7th and 1/6th crawler. New compact design. Compatible with all Axe R2 motors. *Note: The AXE R3 is 2.1mm longer, 1.7mm wider and 3.7mm shorter than the R2 ESC
BulletPoint3 : Dual external control channels, Real-time adjustment of parameters Connect the white and yellow signal cables to open channels of the receiver to adjust parameters in real time. Note: The actual functions of the white and yellow wires correspond to the setting parameters of channel 3/4 in the parameter table respectively.
BulletPoint4 : Smart torque output, easy to control The ESC automatically increases the torque output to overcome resistance and accelerate up the hill. Vice versa, the ESC automatically reduces the torque output and stabilizes the vehicle speed when going down the hill. Provides excellent control going Up, or Down hills
BulletPoint5 : Supports Flysky i-BUS2 protocol Achieve real-time ESC parameter adjustments using the I-BUS2 protocol on the Flysky Noble controllers. Additionally, the data return function has been implemented to the Flysky Noble remote controllers. You will be able to view data such as battery voltage, motor rpm, operating current, ESC/motor temperature, etc in real time on the transmitter.
BulletPoint6 : Compatible with AXE R2 motor AXE R3 ESC supports both AXE 4274 R3 motor and AXE 550/540L/540 R2 motor. *Note: AXER2motor,2800KV/2100KV/1400KV/2300KVarerecommended to use 3-4S.
BulletPoint7 : Obtain AXE Running Status with Real-time Data Function with ease Connect the ESC to the HW Link mobile app and turn on the real-time data function. You are able to view throttle, voltage, current, temperature, speed and other data in real time, and obtain the ESC and motor operating status with ease. *Note: Theeffectivedistanceisonlyabout5mduetotransmission distance of bluetooth.
Color : black color t
CpsiaCautionaryStatement : no_warning_applicable
ExternallyAssignedProductIdentifier : 4174125529855
ExternallyAssignedProductIdentifier1 : 088718508704
ExternallyAssignedProductIdentifier2 : 0088718508704
IncludedComponents1 : (1) AXE R3 ESC
IncludedComponents2 : (1) Manual

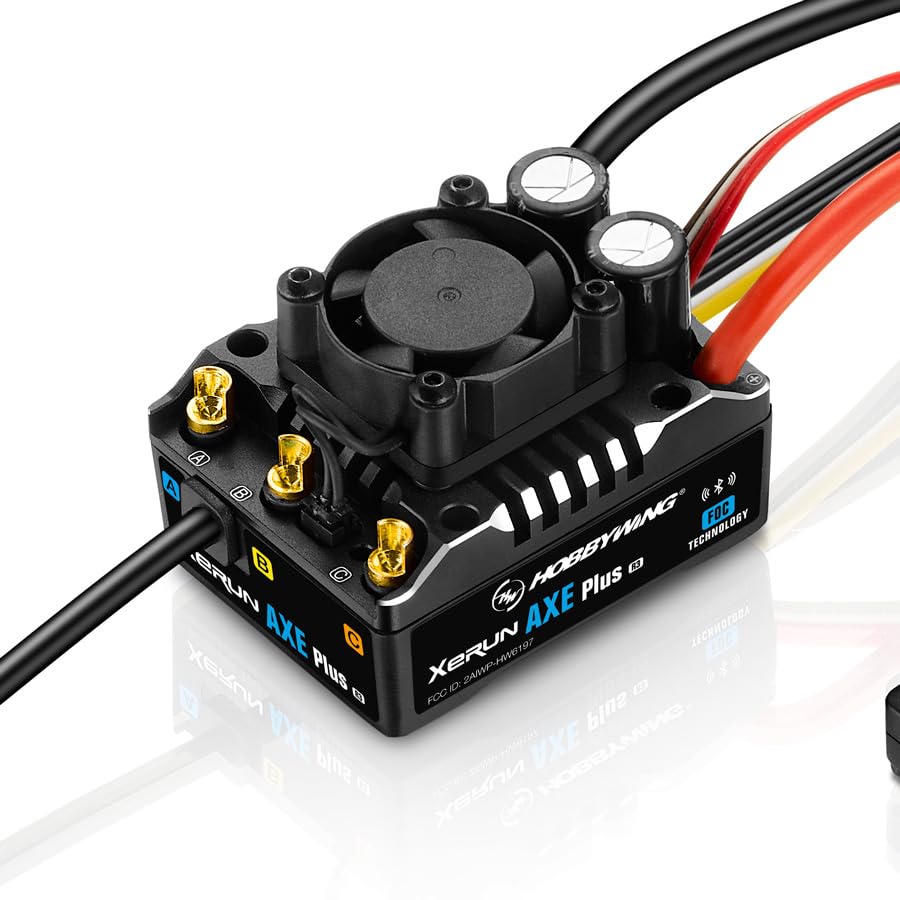

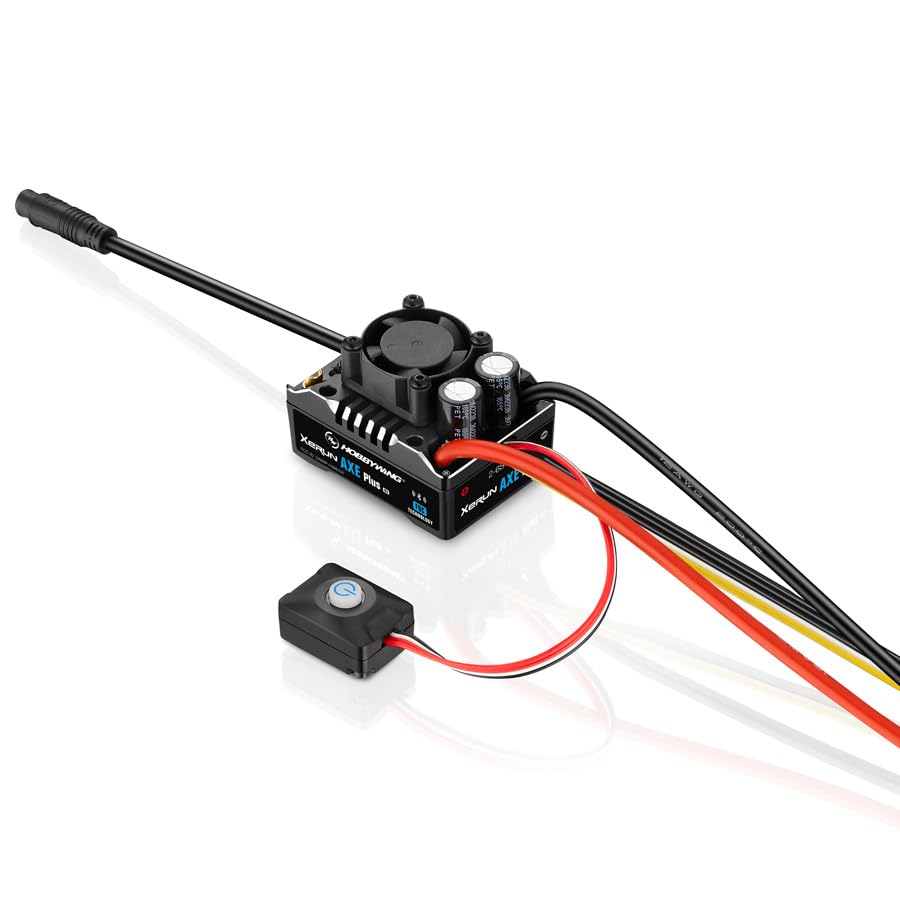

ItemName : HOBBYWING XERUN Axe R3 ESC
ItemPackageDimensions_Height : 1.9 inches
ItemPackageDimensions_Length : 4.2 inches
ItemPackageDimensions_Width : 2.8 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-vehicle-speed-controls
Manufacturer : Hobbywing Technology
ManufacturerMinimumAge : 108
Material : Plastic and Aluminum Waterproof casing
ModelName : AXE R3 ESC
ModelNumber : 30113201
NumberOfItems : 1
PartNumber : 30113201
ProductDescription : Elevate Your Rock Crawler's Performance with the AXE Brushless Power System Unmatched Torque with FOC Technology Experience the power of our Field Oriented Control (FOC) driving mode, delivering incredibly strong low-speed torque. This advanced technology surpasses standard brushless setups and is even preferred over traditional brushed systems for its superior feel and performance. Precision Control with Magnetic Encoder Our chip-type magnetic encoder ensures perfect synchronization of the three-phase signals, consistently delivering pure and precise rotor position feedback. This guarantees exceptional control and reliability for your rock crawler. All-Weather Durability: IP67 Waterproof and Dustproof Designed to withstand the harshest conditions, the AXE brushless power system meets IP67 waterproof and dustproof standards. Tackle any track or weather condition with confidence, knowing your system is protected against water and dust damage. Always monitor your vehicle when running in muddy, wet, or adverse conditions to ensure optimal performance. Intelligent Performance Management Benefit from intelligent torque output and speed closed-loop control, providing easy handling and consistent motor RPM under all loads. This ensures smooth and predictable performance across various terrains. Superior Drag Brake Performance Our adjustable drag brake and drag brake rate control offer unprecedented holding power on slopes, with a maximum drag brake of up to 200%—nearly double that of standard brushless systems. Conquer the steepest inclines with confidence and control. Seamless Connectivity with Built-In Bluetooth The innovative built-in Bluetooth connectivity allows for effortless ESC setup, data monitoring, and firmware updates via your smartphone using the HW LINK app. Keep your system optimized and up-to-date with ease. Comprehensive Safety Features Drive with peace of mind thanks to multiple built-in protections, including low-voltage cutoff, thermal protection, fail-safe (throttle signal loss), motor lock-up protection, and battery reversal protection. Your system is safeguarded against potential issues, ensuring reliable performance every time. Upgrade your rock crawler today with the AXE brushless power system for unbeatable control, power, and durability in any environment.
ProductSiteLaunchDate : 2024-05-21T21:02:48.507Z
SafetyWarning : • Ensure all wires and connections are well insulated before connecting the ESC to related devices, as short circuit will damage your ESC. • Ensure all devices in the system are connected correctly to prevent any damage to the system. • Read through the manuals of all power devices and chassis and ensure the power configuration is correct before using this unit. • Please use a soldering iron with the power of at least 60W to solder all input/output wires and connectors. • Do not allow the ESC & motor temperatures (external temp.) go above 90°C/194°F, as high temperature may cause damage to both the ESC and motor. • The battery must be disconnected after use.There is a small draw even when the system is off,and will eventually fully drain the battery.This may cause damage to the ESC, and will NOT BE COVERED UNDER WARRANTY.
Size : 5.91x3.94x1.97 in
SubBrand : Xerun
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : teens
UnitCount : 1
UnspscCode : 26111500
