Specification
AgeRangeDescription : Adult
Brand : yuenhoang
BulletPoint1 : Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power.
BulletPoint2 : Integrates the BEC module (5V2A), adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.
BulletPoint3 : Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation.
BulletPoint4 : It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.
BulletPoint5 : With a 470uF 35V capacitor to improve its working condition. Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.
BulletPoint6 : Search mode can help users find their aircraft by pulsing the motor to beep after the aircraft falls into a visually obstructed environment and is difficult to find.
BulletPoint7 : Please check the pictures, models and part number carefully for compatibility before ordering.
Color : AM32 ESC
CpsiaCautionaryStatement : no_warning_applicable
EducationalObjective : Spatial Reasoning
ExternallyAssignedProductIdentifier : 8135276438232
ExternallyAssignedProductIdentifier1 : 0733561923739
ExternallyAssignedProductIdentifier2 : 733561923739
IncludedComponents : AM32 ESC

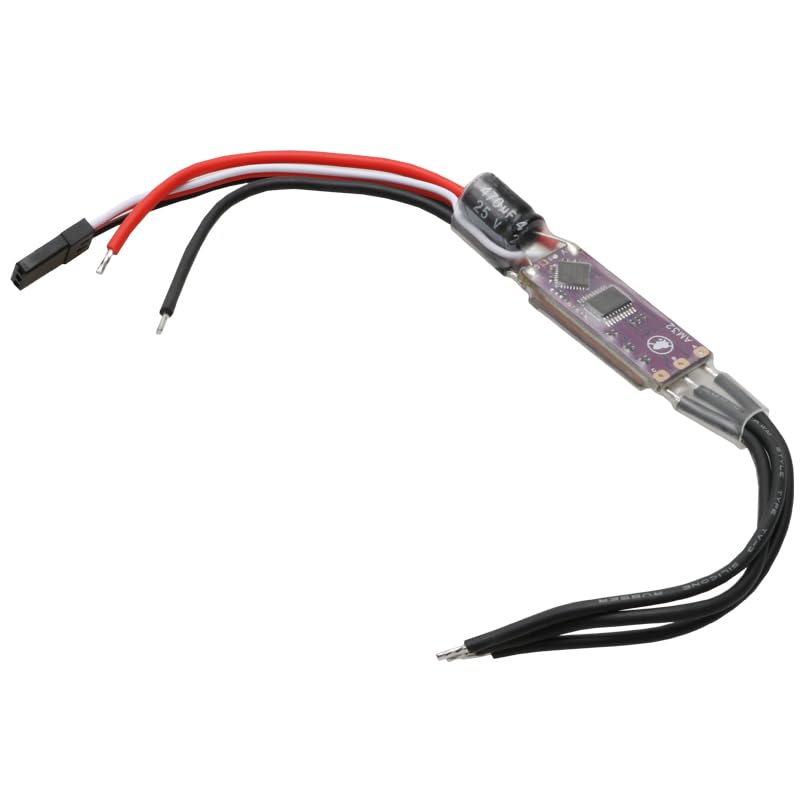

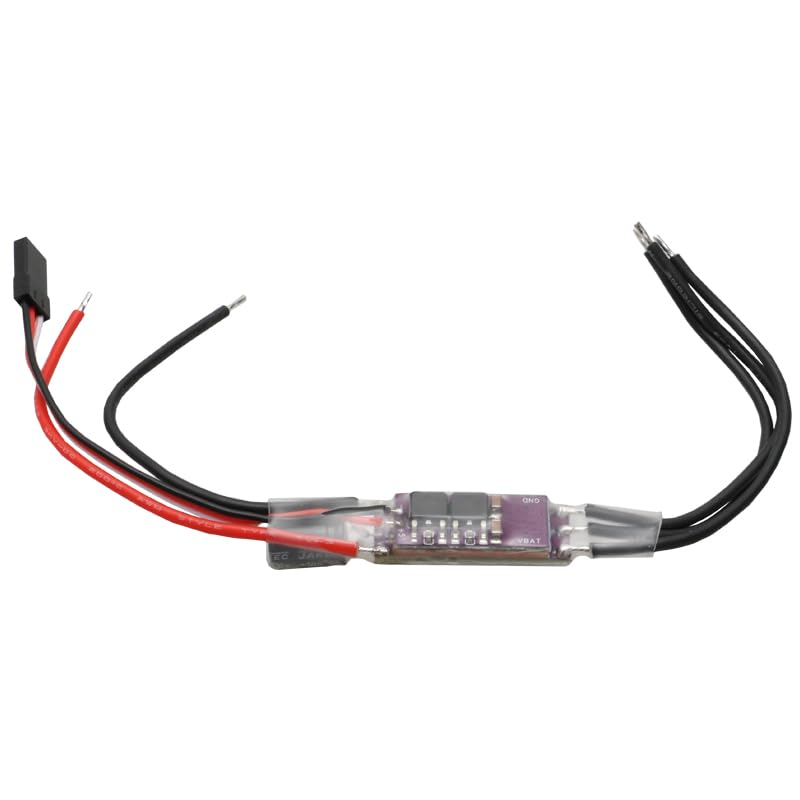

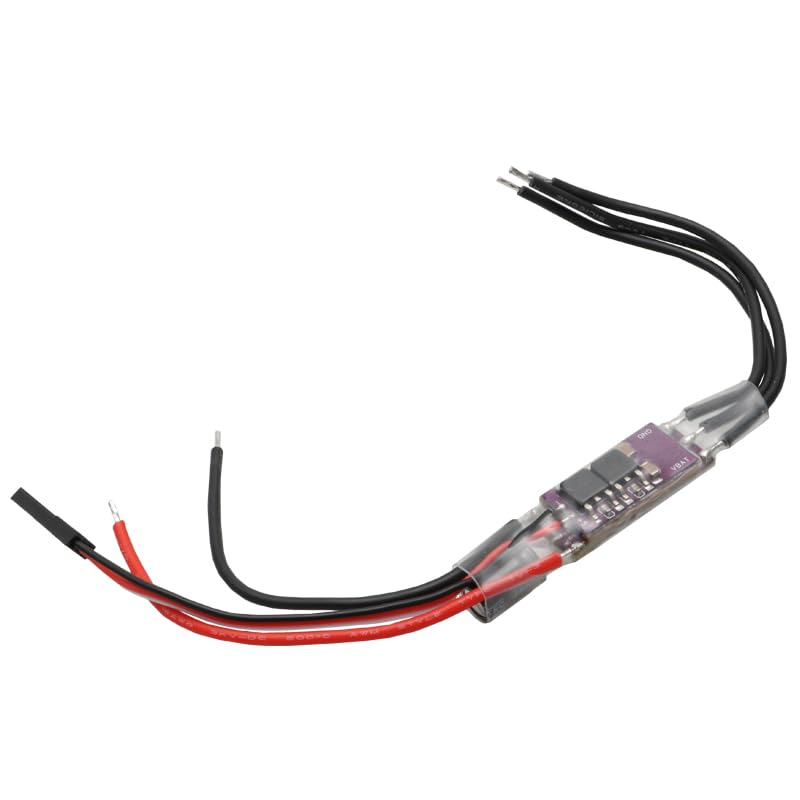

ItemName : yuenhoang 1PCS AM32 ESC 2-4S 40A Mini 32-bit Electronic Speed Controller 5V2A BEC with Signal Cable 35V 470uF Capacitor Support PWM/DSHOT/Sine for DIY RC Model Crawler Drone (AM32 ESC)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemShape : Square
ItemTypeKeyword : hobby-rc-vehicle-speed-controls
Manufacturer : yuenhoang
Material : Plastic
ModelName : HePbak156
ModelNumber : HePbak156
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPlayers : 1
OperationMode : Automatic
PartNumber : 30539
PowerSourceType : AC
ProductDescription :

yuenhoang 1PCS AM32 ESC 2-4S 40A Mini 32-bit Electronic Speed Controller 5V2A BEC with Signal Cable 35V 470uF Capacitor Support PWM/DSHOT/Sine for DIY RC Model Crawler Drone

Description:

- A new 32-bit ESC product, with a super mini size, very suitable for compact installation, it is a driving tool for various small model airplane brushless motors.

- Selected low-power MOS tube with layout placed on the same side for convenient heat dissipation and strong power.

- Mini size and high power, it is the preferred power for small aircraft, crawler, climbing vehicles.

- Integrates the BEC module (5V2A), adds overcurrent copper bars, adds thermal conductive silicone sheets, and takes all performance to a higher level.

- Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.

- With a 470uF 35V capacitor to improve its working condition.

Specification:

- Item name: 32-bit ESC

- Firmware: AM32

- Master control: AT32

- Working voltage: 2-4S Lipo

- Max current: 40A

- BEC: 5V2A

- Support signal: PWM/DSHOT/Sine, etc.

- Board size: 32x13mm

- Signal cable length: 106mm

- Weight: about 13.7g

Strongly recommended! When using the AM32 ESC, it is necessary to use in conjunction with a parameter adjuster.

Parameter adjuster:

- Type-C port

- Special for AM32 32-bit ESC

Note:

- Size is manual measurement, there are exist errors.

- If you need to adjust the parameters by yourself, please contact our customer service, who will provide you with the official AM32 parameter - tuning software. If the electronic speed controller fails to work properly due to the misuse of parameter - tuning tools, we will not provide after - sales service.

- If you need to customize plugs (motor output plug, power inout plug), please contact customer service personnel.

Package include:

1pcs x AM32 ESC

or

1pcs x parameter adjuster

ProductSiteLaunchDate : 2024-11-07T01:54:21.044Z
Size : One Size
Speed : 50000 rpm
Style : Casual
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
TargetGender : unisex
Theme : Vehicle
ToyVehicleForm : Airplane
UnitCount : 1
UnspscCode : 26111500
Voltage : 7400 millivolts
