Specification
Brand : eletechsup
BulletPoint1 : Operating voltage: DC 12V/24V
BulletPoint2 : Operating Current(DC 12V)
BulletPoint3 : Size 153*72*19mm(Only Board)
BulletPoint4 : Weight : 157g(Only Board), 267g(with shell)
BulletPoint5 : APPLICATION: Can be used for power amplifier aluminum box, GPS analyzer housing, HIFI amplifier aluminum housing, electronic product cooling aluminum housing, printed circuit board wiring aluminum box, anti-thunder aluminum housing, DIY, etc
Color : as described
ExternallyAssignedProductIdentifier : 9487462186564
ExternallyAssignedProductIdentifier1 : 0749085306033
ExternallyAssignedProductIdentifier2 : 749085306033
FinishType : Brushed
IncludedComponents : Module
InstallationType : Screw-In

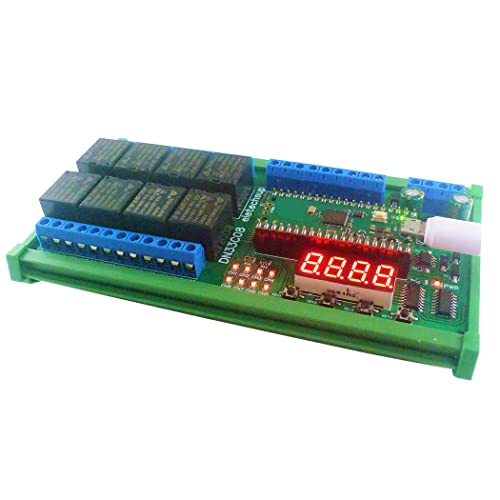

ItemName : Eletechsup DC 12V 24V 8ch Multifunction Delay Timer RS485 Modbus Relay Module (1 x with Shell)
ItemPackageDimensions_Height : 26.5 centimeters
ItemPackageDimensions_Length : 2.9 centimeters
ItemPackageDimensions_Width : 8.2 centimeters
ItemPackageQuantity : 1
ItemShape : 1 X With Shell
ItemTypeKeyword : electrical-boxes
Manufacturer : eletechsup
Material : Copper
Material1 : Metal
Material2 : Aluminum
Material3 : Rubber
MeasurementSystem : Metric
ModelNumber : DN33C08
NumberOfItems : 1000
OperationMode : Automatic
PartNumber : DN33C08
ProductDescription :

Product Name: DC 12V 24V 8ch Multifunction Delay Timer RS485 Modbus Relay Module for Raspberry Pi Pico Simple Open PLC Python C++

Product Features:

1. Operating voltage: DC 12V/24V

2. Operating Current(DC 12V) : Standby current (Digital tube OFF) 15MA, Standby current 34MA (Digital tube ON), 1 relay open 68MA, 2 relays open 100MA, 3 relays open 126MA, 4 relays open 157MA,5 relays open 179MA, 6 relays open 204MA, 7 relays open 250MA, 8 relays open 283MA

3. On-board resources: 1x RS485 Interface 8x opto-isolated inputs (low level trigger, NPN type), 4x buttons, 1x 4 bit digital tube display, 1x PI PICO slots, 8x relay outputs

As long as you write MicroPython code(sketch),You can use it to achieve a variety of delay timer function,such as:

RS485 Master-Slave Device(PLC MCU)

Motor forward and reverse,

Timing on,

Timing off,

Power-up delay,

Trigger delay,

Infinite loop delay,

A finite number of cyclic delays,

Power sequencer,

And so on.

We provide the code(sketch) can only achieve a simple delay function,The delay time is adjusted by modifying the delay parameter of the code(sketch).

If you need more functionality, write your own code. We do not provide additional code(sketch) and technical support

how to use: See video ''DN33C08 DEMO''(You can search for videos on GOOGLE)

Note:

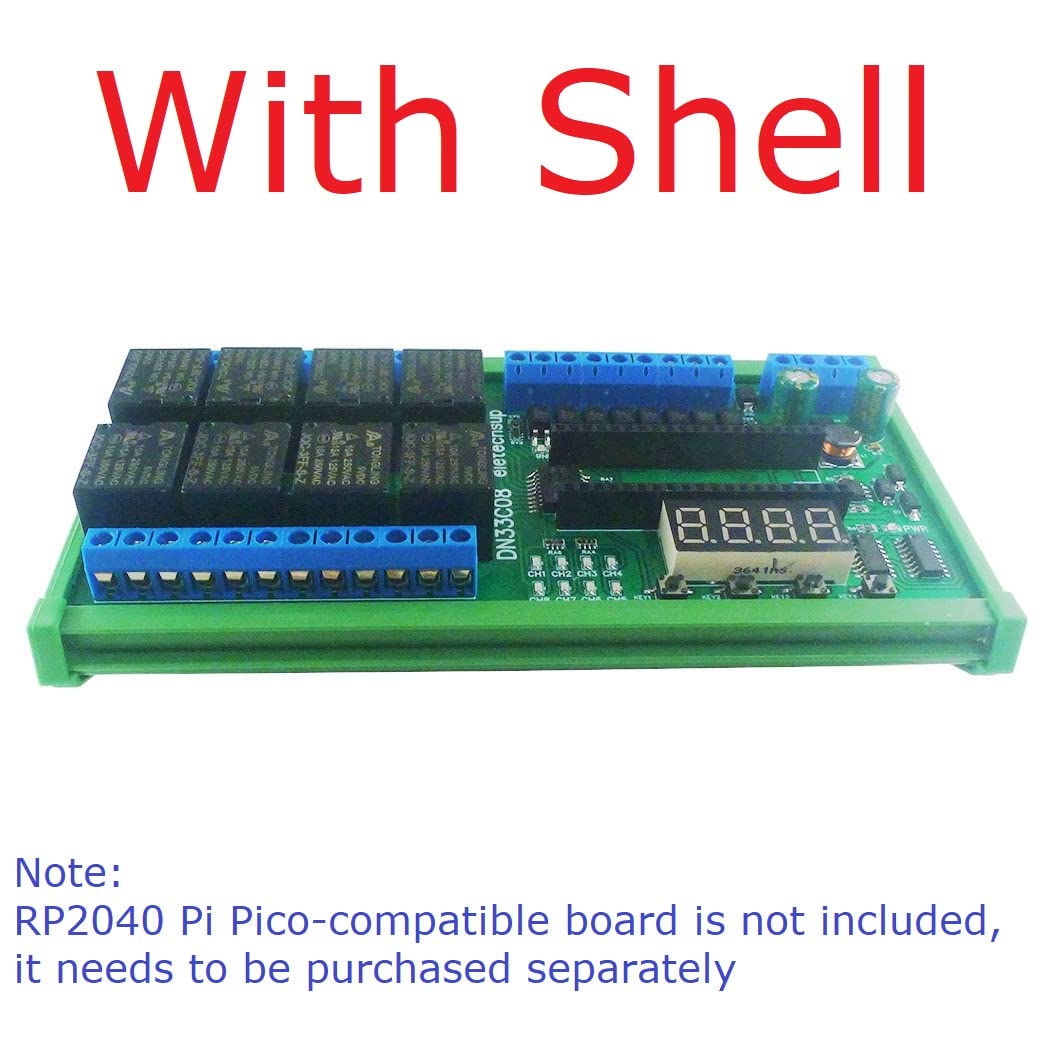

1. DN33C08 is an expansion Module for Raspberry Pi Pico board, it cannot work independently.

2. If you do not have a Pi Pico board, Please purchase the Module ''Board for Pi Pico''

Application 1: Through the programming of Pi Pico Board , various delay customization functions can be realized instead of PLC.

Application 2: It can be used as an RS485 master device instead of PLC/PC/touch screen to control various RS485 slave devices.

ProductSiteLaunchDate : 2018-08-15T21:00:00.000Z
Size : 68x145x150mm/2.7x5.7x5.9in
SpecificationMet : Ip66
SpecificationMet1 : IP66
SpecificationMet2 : CE
SpecificationMet3 : NEMKO
Style : 12pcs 1/2" NPT cable gland & 11.2"x7.7"x5.1" box
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
UnitCount : 1
UnspscCode : 39122300
