Specification
Brand : Jolooyo
BulletPoint1 : Fully Mosfets Class A.
BulletPoint2 : Fully Discrete .
BulletPoint3 : Single-Point grounding, ground resistance is close to the 0.02 ohm, low noise design.
BulletPoint4 : PCB is small and flexible, very friendly for all kinds of chassis installation.
BulletPoint5 : Gain: 11X.
Color : One Color
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 8440889430710
IncludedComponents : PASS-A5 kit
ItemName : Pass Aleph-5 A5 Fully Mosfets Class A Power Amplifier DIY KIT
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : science-lab-electrochemistry-accessories
Manufacturer : Jolooyo
Material : Silver
ModelName : LLBZBJLXWE
ModelNumber : PASS-A5 kit
NumberOfBoxes : 1
NumberOfChannels : 2
NumberOfItems : 1
PartNumber : PASS-A5 kit
ProductDescription : It is based on the core circuit of the Pass.Lab Aleph-5 Power Amplifier.

Tech highlights:
Fully Discrete .
Fully Mosfets Class A.
Monarual design.
Single-Point grounding, ground resistance is close to the 0.02 ohm, low noise design.
PCB is small and flexible, very friendly for all kinds of chassis installation.
More cost-effective sound modification potential.
Total 6 Power MOSFETs per channel for power output.
Maximum input voltage：6.6VPP.
Gain: 11X.
input resistance: 22K.
Output Power:
MAX 65Wate 8Ω
PCB Size : 152x102x1.6mm 1oz Cu, HASL with lead
Power requirements
Best:±35VDC,I≥6A（2 Channel)
Recommend to use CRC filter after rectifier

Product configuration
DIY kit: Contains the PCB and the components needed on the PCB, Contains two output power configurations .
Finished board: Based on the well-tested board on the standard version kit, we verified all key points' voltage, and used the signal generator and oscilloscope for analog waveform double verification. We will not use this board for listening test.
All finished pcbs are all carefully hand-soldered and fully tests, so the price is higher and less cost performance. Price-sensitive consumers but with have DIY ability are recommended to choose the kit.

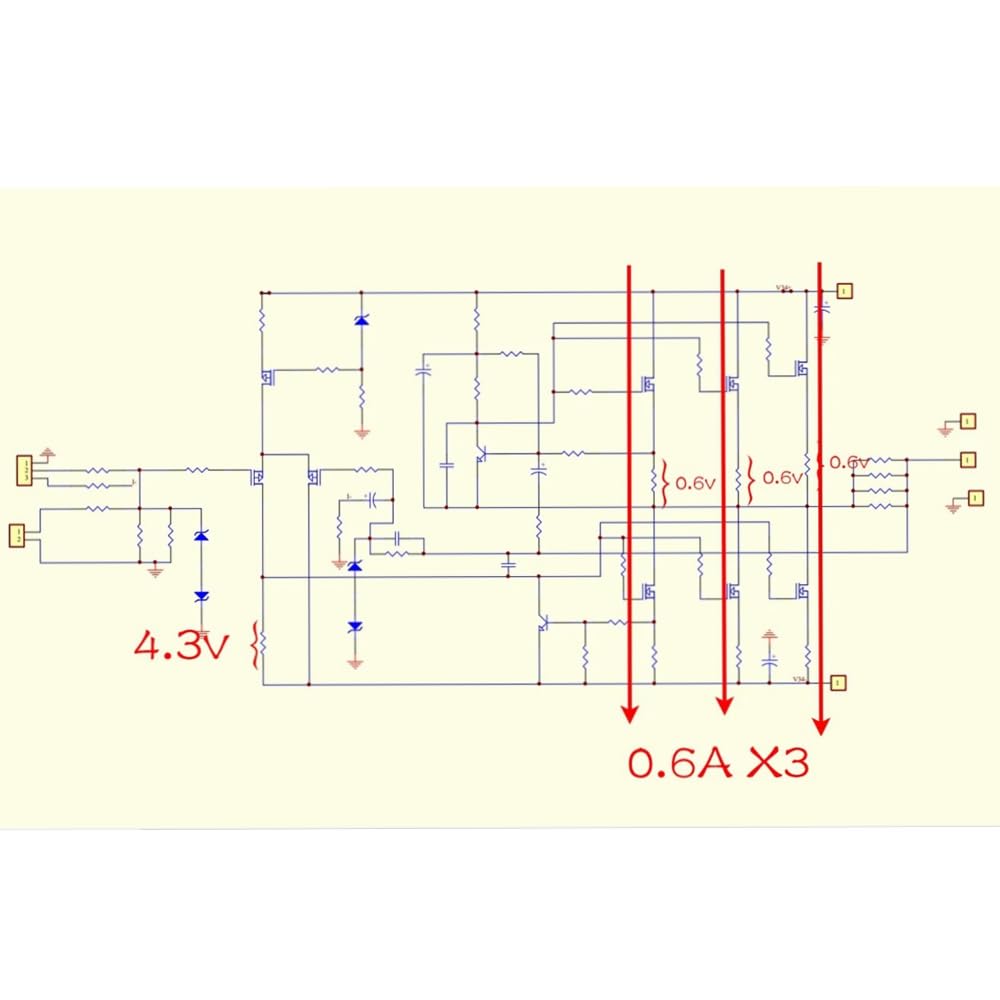

Schematic & key point of debugging
PCB comes with component parameters for easy installation.
We only refer the schematic of the amplification part of the circuit. If you need full circuit parameter, please read the component value with the PCB by yourself; we do not provide additionally.
please keep test point voltage close enough to it, +-20% is also permitted.

ProductSiteLaunchDate : 2024-09-04T09:20:19.497Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 52161500
Voltage : 3.3 volts_of_alternating_current
