Specification
Brand : Cunyuer
BulletPoint : Finder Relay 56.34.8.120.0040
BulletPoint1 : Practical: Can be used to control reciprocating travel, or for repeated power on and off testing of equipment and product aging
BulletPoint2 : ON/OFF: Supports start/stop function. After the module is powered on, it enters infinite loop mode, and the relay works according to the set running and stopping time
BulletPoint3 : Wide Time Range: Time range of 0.5s~1000min, you can set a wide time range, and both the run and stop times are adjustable
BulletPoint4 : Voltage: AC100V~250V, suitable for 100V/110V/120V/127V/220V/230V/240V power supply
BulletPoint5 : Usage: For specific usage of the product, please refer to the Product Description. It is suitable for timer operate equipment, machine repeated testing circuits, and fish tank intermittent pumps
Color1 : multi
Color2 : red
ConnectorType : Screw
CurrentRating : 25 amps
CurrentRating1 : 10 amps
CurrentRating2 : 7 amps
ExternallyAssignedProductIdentifier : 8012823217123
ExternallyAssignedProductIdentifier1 : 013227113873
ExternallyAssignedProductIdentifier2 : 0013227113873
GpsrSafetyAttestation : 1
ItemDisplayDimensions_Length : 28 millimeters

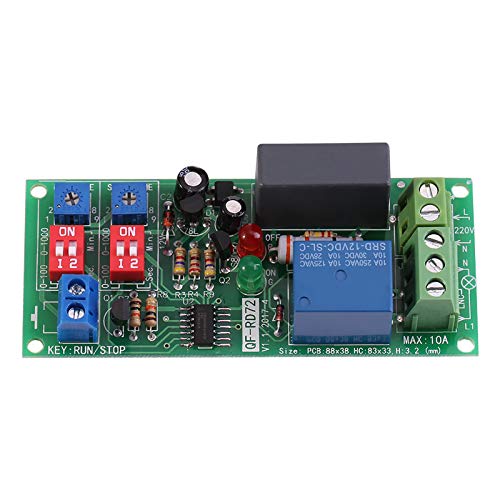

ItemName : Cunyuer Timer Relay Module, AC100V-250V, Infinite Cycle Timer Delay On/Off Switch, Adjustable 0.5s 1000min, Automatic Operation, Silver Contact, Normally Open, 10A, Screw Mount
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electromechanical-relays
Manufacturer : Cunyuer
Material : Copper
MaximumSwitchingCurrent : 25 amps
MaximumSwitchingVoltage : 24 volts
MeasurementSystem : Metric
MinimumSwitchingVoltage : 24 volts_of_alternating_current
ModelName : Cunyuer1e0xw8umpc
ModelNumber : Cunyuer1e0xw8umpc
MountingType : Screw Mount
NationalStockNumber : 6625-01-457-7358
NumberOfItems : 1
OperationMode : Automatic
PackageLevel : unit
PartNumber : Cunyuer1e0xw8umpc
ProductDescription :

Specifications:

Voltage: AC100V~250V

Power: <1.0W

Maximum Output Current: <10A

Input: Passive switch input, green led lights up after turn on, red led lights up after stop

Time Range: 0.5sec. to 1000min.

Time Accuracy: Maximum range value*0.001

Input(start button): Passive switch input, green led lights up after turn on, red led lights up after stop

Start input is not necessary. Connect these 2 terminals and then the board will cycle infinitely after power on.

Size: 88 x 38 x 22mm / 3.46 x 1.49 x 0.86"

Mounting Hole Spacing: 83 x 33mm / 3.26 x 1.3"

Mounting Hole Diameter: 3.2mm / 0.12"

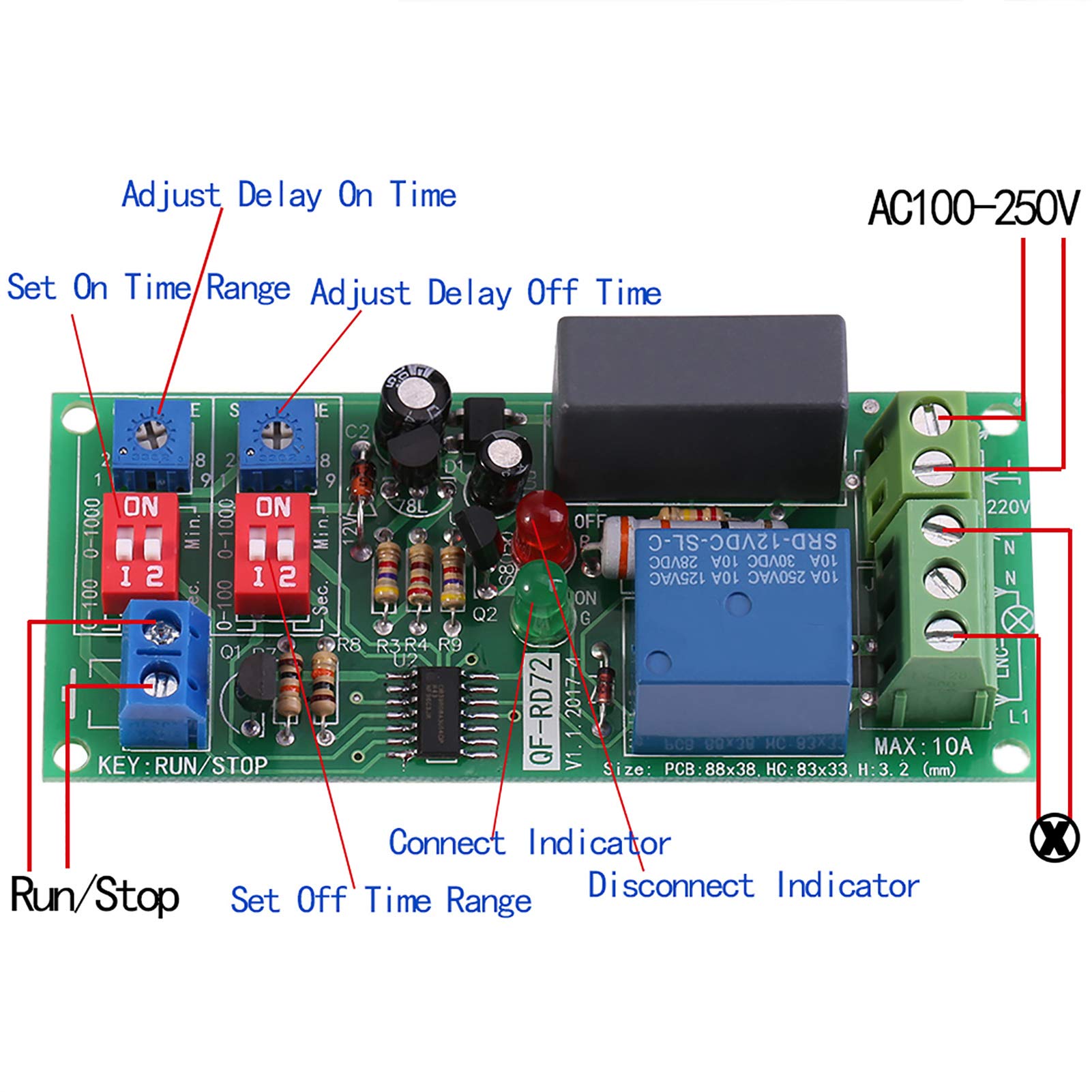

Instruction:

Time can be set when the board is powered on or powered off.

1, Set Run Time:

Adjust the RUN TIME potentiometer clockwise to increase, counterclockwise to decrease.

The red switch below can set time range(left, 0-100 or 0-1000)

and unit(right, Sec. or Min.)

2. Set Stop Time:

Adjust the STOP TIME potentiometer clockwise to increase, counterclockwise to decrease.

The red switch below can set time range(left, 0-100 or 0-1000)

and unit(right, Sec. or Min.)

3. Start Button(Not included):

Connect a momentary push-button switch and press it, then green LED lights up indicating it is working. The board would automatically run according to the setting run time and stop time, infinite cycle.Press the start button again, then red LED lights up indicating it stops.

4. Time Setting Example:

Requirement: Run for 20 seconds, stop for 30 minutes, infinite cycle.

Settings:

(1)Set run time range to 0-100;

(2)Set run time unit to Sec.;

(3)Set run time potentiometer to 20 position, namely the position of 20/100 from left;

(4)Set stop time range to 0-100;

(5)Set stop time unit to Min.;

(6)Set stop time potentiometer to 30 position, namely the position of 30/100 from left;

Note:

1. Use a start button whose current is more than 0.1A

2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.

Package Includes:

1 x Timer Relay Module

ProductSiteLaunchDate : 2024-11-12T06:17:36.750Z
Size : 1 Piece
SpecificationMet : din
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122200
Voltage : 24 volts
Voltage1 : 250 volts
Voltage2 : 12 volts
Wattage : 1 watts
