Specification
Brand : GODIYMODULES
BulletPoint : Price For: Each Coil Voltage VDC Nom: 12V Contact Current Max: 100A Contact Voltage DC Nom: 30V Coil Resistance: 90ohm Contact Configuration: SPST-NO Relay Mounting: Quick Connect External Height: 25mm RoHS Compliant: Yes
BulletPoint1 : This is a self-locking (bistable) double-pole double-throw relay. When triggered once, the relay is closed, and triggered again, the relay is disconnected.
BulletPoint2 : When power is applied, the relay is disconnected. Click the trigger port (T port) to close the relay, click the relay again to disconnect, and so on.
BulletPoint3 : With power indicator and reverse polarity indicator
BulletPoint4 : Input voltage:DC 6-24V (12V version) Module working current: forward 2MA, reverse 60-70MA
BulletPoint5 : OCTAL BASE
Color : Onecolor
ConnectorType : Screw
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier : 7700916269036
ExternallyAssignedProductIdentifier1 : 0765569959038
ExternallyAssignedProductIdentifier2 : 765569959038
GpsrSafetyAttestation : 1
IncludedComponents : 1pcs
InputVoltage : 12 volts_of_direct_current

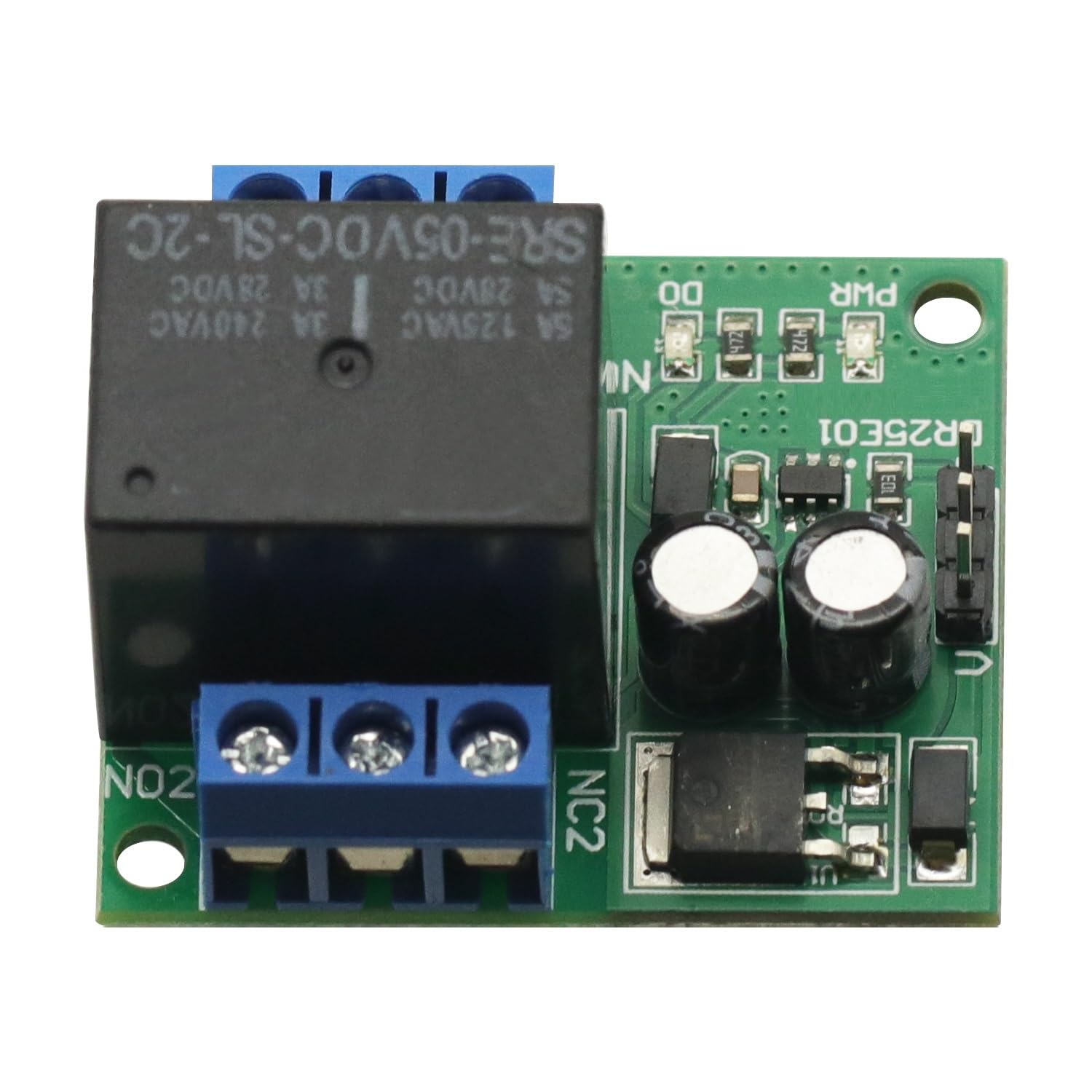

ItemName : DC 6V-24V Double Pole Double Throw DPDT Relay Module Self-Locking Bistable Switch Low Pulse Trigger Board
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electromechanical-relays
Manufacturer : GODIYMODULES
Material : Copper
Material1 : nickel
Material2 : silver
Material3 : Copper
MaximumSwitchingCurrent : 8 amps
MaximumSwitchingVoltage : 12 volts
MeasurementSystem : Inch
MinimumSwitchingVoltage : 12 volts_of_direct_current
ModelNumber : DG85D-7021-76-1012
MountingType : PCB Mount
NumberOfItems : 1
NumberOfTerminals : 3
OperatingVoltage : 12 volts_of_direct_current
OperationMode : Automatic
PartNumber : DR25E-DC6-24v-001
ProductDescription :

Description：

Input voltage:DC 6-24V (12V version)

Module working current: forward 2MA, reverse 60-70MA

Load current: maximum 5A (motor <=3A)

With power indicator and reverse polarity indicator

Control mode: low pulse control

Size: 39.5mm X 33.3mm X 23.3mm

This is a self-locking (bistable) double-pole double-throw relay. When triggered once, the relay is closed, and triggered again, the relay is disconnected.

Pin description:

V: positive power supply

G: The negative pole of the power supply and the ground terminal of the trigger signal;

T: Trigger signal input (0.2-2 second low pulse).

NO1: Relay normally open port

COM1: Relay common port

NC1: Relay normally closed port

NO2: Relay normally open port

COM2: Relay common port

NC2: Relay normally closed port

Instructions:

When power is applied, the relay is disconnected. Click the trigger port (T port) to close the relay, click the relay again to disconnect, and so on.

ProductSiteLaunchDate : 2024-11-30T02:03:06.295Z
Size : 700-TBR212 12VDC
SpecificationMet : Dpdt Relay
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 39122200
Voltage : 120 volts
