Specification
Brand : Jienk
BulletPoint1 : Omron G2R-1-E SPDT(1NO+ 1NC) power relay, Switching current up to 16A at 250VAC or 30VDC. Each road relay is equipped with a set of normally open and normally closed.
BulletPoint2 : The input terminal on each channel is equipped with status indicator. With renewal current protection, the protection components are not easy to be burned. Also great for diagnosing issues and debugging.
BulletPoint3 : Input end control signal compatible with PNP and NPN. Output contacts with surge protection, Shock Arc Extinguishing.
BulletPoint4 : Each circuit is independent, with pluggable relay base, convenient for daily Repair and replacement.
BulletPoint5 : DIN rail mounting, can support width 35mm, 32mm and 15mm rail.
ConnectorType : Screw
CurrentRating : 16 amps
ExternallyAssignedProductIdentifier1 : 759041742003
ExternallyAssignedProductIdentifier2 : 0759041742003
ExternallyAssignedProductIdentifier3 : 00754554768410
IncludedComponents : Relay Module
InputVoltage : 12 volts_of_direct_current

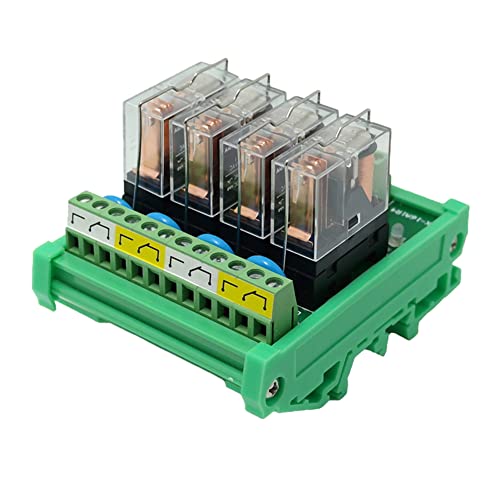

ItemName : Jienk DC 12V Control 4 SPDT 16Amp Pluggable Power Relay, Compatible with PNP NPN C45 DIN Rail Mount 4 Channels 1NO+ 1NC Relay Module, G2R-1-E
ItemPackageDimensions_Height : 10.0076 centimeters
ItemPackageDimensions_Length : 7.6962 centimeters
ItemPackageDimensions_Width : 8.9916 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electromechanical-relays
Manufacturer : Jienk
Material : Copper
MaximumSwitchingCurrent : 16 amps
MaximumSwitchingVoltage : 250 volts
MeasurementSystem : Wire Size
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelNumber : 3TX71314CC13
MountingType : DIN Rail Mount
NumberOfItems : 1
OperatingVoltage : 12 volts_of_direct_current
OperationMode : Automatic
PartNumber : JT531
ProductDescription : Applicable to PLC, Arduino, DSP, ARM, ARM, MSP430, TTL logic microprocessor systems and time relays etc., amplifying the control current of outputs, to protect key control systems not being destroyed.
Technical Specifications:
Input Operation Voltage: DC 12V
Relay Mounting: PCB Pluggable
Switching Voltage: 30VDC/250VAC
Contact Rating(Current): 16A
Coil Current: 21.8mA
Coil power: 0.53W each
Contact type: 1 normally open, 1 normally close
Max frequency: 18000 times/h
Coil resistence: 50mΩ
Release time(at normal voltage): ≤5ms
Input/Output connections: Screw terminal block
Wire range: 0.2 to 2.5mm²(24 AWG to 14 AWG)
Stripping length: 6 to 7mm(0.24 to 0.28 inch)
DIN rail mountable: 15/32/35mm
NPN PNP Compatible
Package includes:
1 x 4 Channel DC 12V Rail Mount Relay Interface Module
ProductSiteLaunchDate : 2023-01-04T01:48:43.922Z
Size : DC12V 4SPDT
SpecificationMet : CE
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
Wattage : 0.53 watts
