Specification
Brand : IGEYAPA
BulletPoint1 : FUNCTION & APPLICATION: GRT8-M1 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. It has a wide delay setting range from 0.1 seconds to 10 days, wide working voltage AC230V (50-60Hz), rated current of 16A. Output contact: 1SPDT (1NO1NC). This 12V time delay relay can be used in industrial equipment, lighting manufacturing, heating element control, motors to accurately control the delay time of changing lighting, heating, motors, machines, etc

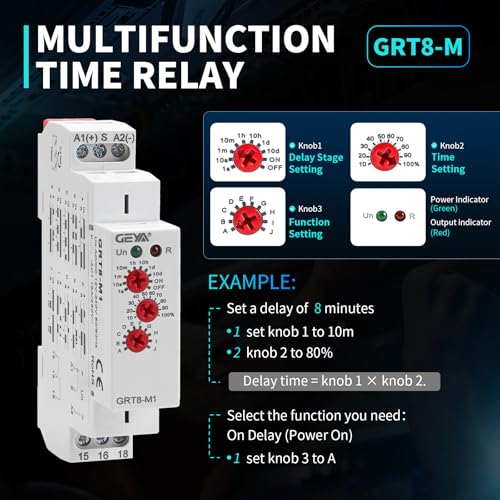

BulletPoint2 : INDICATOR BUTTON: grt8 m1 ac dc 12-240v the working status of the delay relay is indicated by the LED : the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicating the stop of work). Refer to the detailed technical parameters for further customization and optimal performance: a. Select the desired function, e.g., A (Power-On Delay). b. Set the required delay time, e.g., 30 minutes. c. Adjust the time range knob to 1h. d. Turn the percentage knob to 50% for precise control. Please check the instructions and videos
BulletPoint3 : Model of IGEYAPA GRT8 Time Relay: 1. GRT8-A: Delay opening relay; GRT8-B: Delay closing relay; GRT8-S： Loop relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT8-M: Multi functional time relay, covering GRT8 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON）， And function E as shown in the figure, F,G,H,I,J
BulletPoint4 : Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
BulletPoint5 : WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time. Please check the instructions and videos before operation, which can help you better use the relay
Color : 3V
ConnectorType : Screw
CurrentRating : 16 amps
ExternallyAssignedProductIdentifier1 : 701715525467
ExternallyAssignedProductIdentifier2 : 0701715525467
IncludedComponents : 1 Timer Relay*1 Using Manual
InputVoltage : 230 volts
ItemName : Multifunction Time Relay, IGEYAPA 16A Delay ON Off GRT8 M1 AC DC 12-240V with 10 Relay Timer Control Delay Function Mode DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days
ItemPackageDimensions_Height : 9.5 centimeters
ItemPackageDimensions_Length : 2.5 centimeters
ItemPackageDimensions_Width : 7.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electromechanical-relays
Manufacturer : IGEYAPA
MaximumSwitchingCurrent : 10 amps
MeasurementSystem : Inch
ModelNumber : GRT8-M1-240
MountingType : DIN Rail Mount
NumberOfItems : 1
OperatingVoltage : 230 volts
OperationMode : Automatic
PartNumber : INDUSTRIAL-GRT8
ProductDescription : Delay ON Time Relay 16A ON IGEYAPA Delay Timer Relay GRT8 A2 DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days Voltage Range AC DC 12V to 240V Delay ON Time Relay, IGEYAPA GRT8 A1 230V Time Delay Relay Module, Delay Timer Switch 16A AC230V Adjustable Delay Timer Switch in Din RailTime Relay Delay Turn Off 16A Adjustable Smart Relay Electronic Timer in Din Rail, 0.1s-10 Days Wide Range Delay Factory Automation Time Universal Voltage GRT8 AC 230V (GRT8-B1-230) Time Relay 16A, IGEYAPA Delay On Timer Relay GRT8 A1 Voltage Range AC DC 12V to 240V DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days Time Relay 16A Adjustable Smart Relay, IGEYAPA Delay Turn Off Electronic Timer in Din Rail, 0.1s-10 Days Wide Range Delay Factory Automation Time Universal Voltage GRT8 AC DC 12V 240V (GRT8-B1-240) Multifunction Time Relay, IGEYAPA Delay On Off GRT8 M with 10 Relay Timer Control Delay Function Mode DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days Time Relay GRT8-A2 Delay On Timer Switch, IGEYAPA 16A 230V Adjustable Timer Relay in Din Rail for Industrial Grade Waterproof and Dustproof Design Multifunction Time Relay Module 16A, IGEYAPA Adjustable Delay Timer Switch, 0.1s-10 Days Wide Range Delay AC Factory Automation Time Relay Universal Voltage DIN RailMultifunction Time Relay 2 Outputs 16A Adjustable Smart Relay 12V Electronic Timer in Din Rail,0.1s-10 Days Wide Range Delay On Off Factory Automation Universal Voltage GRT8 M2 AC DC 240VTime Relay IGEYAPA Multifuction GRT8 M1 AC 230V with 10 Relay Timer Control Delay Function Mode DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days (GRT8-M1-230) Asymmetric Cycle Timer Relay IGEYAPA 1SPDT AC 230V 16A Long or Short Period Repeat Cycle Tntermittent Timer Electronic Relay in Din Rail (GRT8-S1 AC230V) Asymmetric Cycle Timer Relay 1SPDT AC 12V 240V 16A Long or Short Period Repeat Cycle Tntermittent Timer Electronic Relay in Din Rail (GRT8-S1 AC DC 12-240V) FUNCTION& APPLICATION: 12v timer relay, preset machine start time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide operating voltage of AC/DC 12-240V (50-60Hz), and a rated current of 16A. Output contact: 2SPDT (2NO2NC). This 12V timer delay on relay can be used in industrial equipment, lighting, manufacturing industries to precisely control the delay time for changing lighting, heating, motors, machines, etc INDICATOR BUTTON: The working status of grt8 a2 ac/dc 12v-240v delay on time relay is indicated by the LED indicator light: the green LED indicator light is always on (power on), and the green LED indicator light is off (power abnormal); The red LED indicator light is on (indicating start of work), and the red LED indicator light is off (indicating stop of work). If you want to set a 6-minute delay, adjust the first knob of this delay on time relay to 10 meters and turn the second knob to 60%, then the terminal will start work in 6 minutes COMPACT AND EASY TO INSTALL: IGEYAPA GRT8 Series time delay relay is designed mini and handle, size of 2.88 inches x 3.68 inches x 0.9 inches. Din rail 12v-240v delay timer relay should be installed on a 35mm din rail. Easy to install, portable and compact CHOICE MATERIALS: GRT8 Series delay on time relay made of industrial grade plastic , compliant with UL, CE, CB, RoHS standards, flame retardant, relay switch has a sealing ring that can isolate dust and oxygen, and can work stably in humid environments to protect your expensive equipment WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time
ProductSiteLaunchDate : 2025-01-09T07:30:18.403Z
Size : GRT8-M1 AC/DC12V-240V
SpecificationMet : CE
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 39122300
