Specification
Brand : FretMax
BulletPoint : Golden Age Treble Bleed Circuit, with .001uF Ceramic Capacitor
BulletPoint1 : Number of Conductors: 3
BulletPoint2 : Mounting Type: Panel
BulletPoint3 : Termination Style: Solder
BulletPoint4 : Contact Plating: Nickel
BulletPoint5 : Body Plating: Nickel
BulletPoint6 : Insert Material Type: Rigid Plastic Insulating Spacers
BulletPoint7 : Life Cycle: 10000 Cycles
Color : Nickel
ConnectorType : 1/4" Jack
ExternallyAssignedProductIdentifier : 7625940013373
ExternallyAssignedProductIdentifier1 : 0198715502312
ExternallyAssignedProductIdentifier2 : 198715502312
FinishType : Polished
Instrument : electric guitar
ItemName : FretMax Upgraded 1/4" Stereo 3-Conductor Jack w/Nut & Washer - Nickel (FMSJ)
ItemPackageDimensions_Height : 0.75 inches
ItemPackageDimensions_Length : 5.75 inches
ItemPackageDimensions_Width : 4 inches
ItemPackageQuantity : 1
ItemTypeKeyword : electric-guitar-electronics
Manufacturer : FretMax
Material : Metal
Material1 : Nickel
Material2 : Plastic
ModelNumber : FMSJ
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : FMSJ
ProductDescription : FretMax Stereo Jack

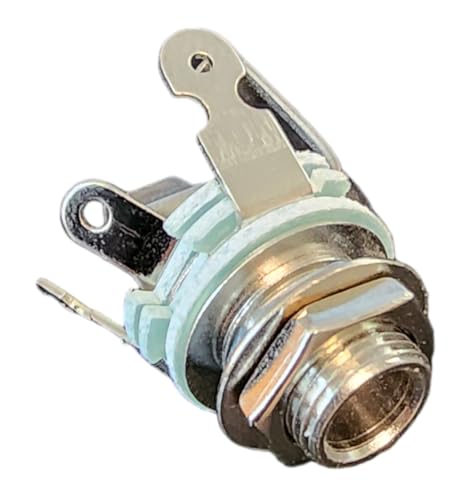

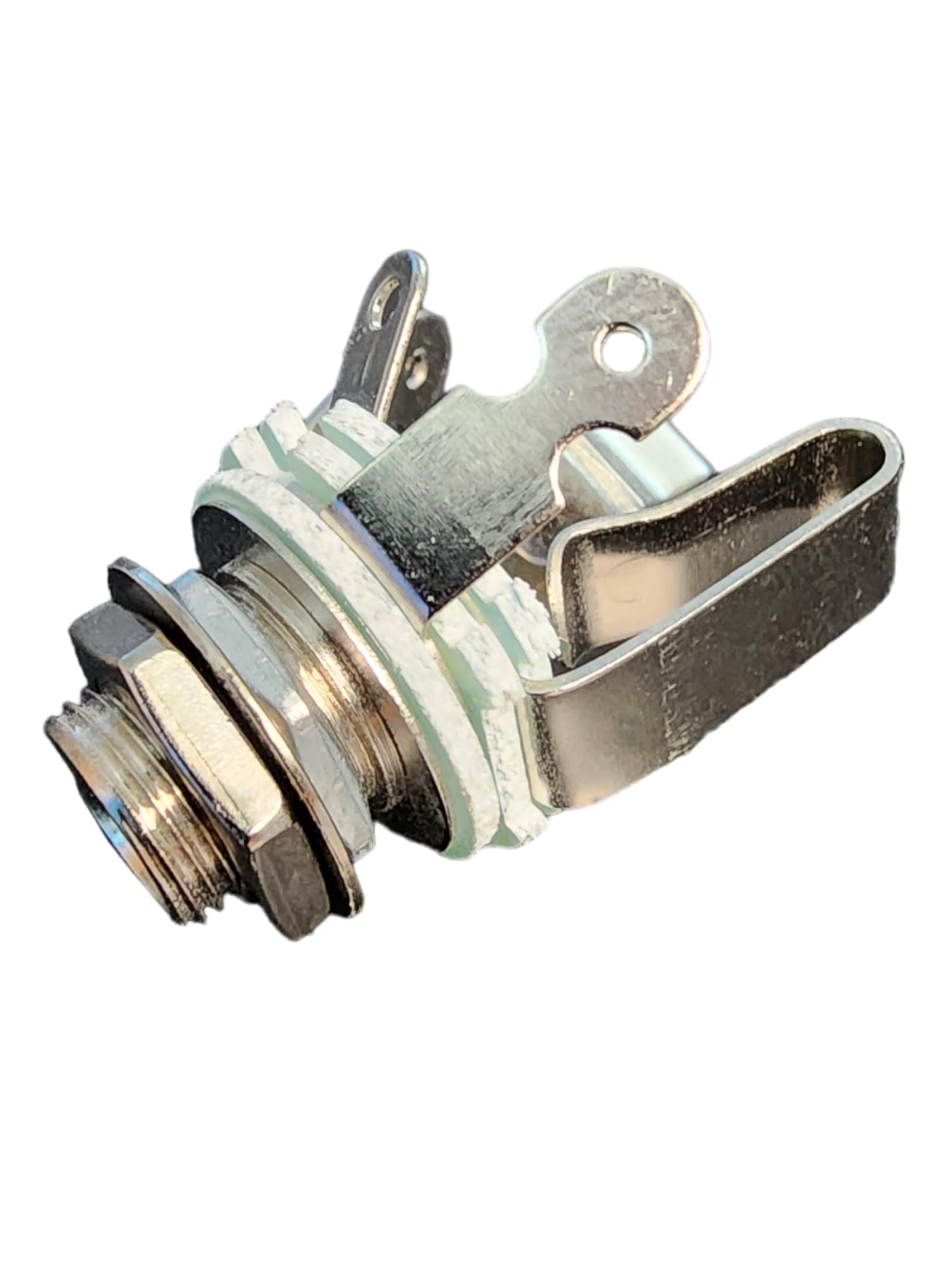

The FretMax Stereo Jack is an industry standard for TRS (tip/ring/sleeve) operation. It's useful for active pickups, dual source pickup systems, and effect inserts on amplifiers. This jack works perfectly with any Fender, Gibson, or other guitar where the output jack mounts to some sort of plate. These FretMax Stereo Jacks are also great mic jacks for vintage radios.

This stereo jack is a 1/4" stereo, 3-conductor jack that comes with a nut and washer and features a double open circuit. Designed for panel mounting, this jack offers solder termination and is crafted from high-quality materials for reliable performance.

Configuration

• Number of Conductors: 3
• Mounting Type: Panel
• Termination Style: Solder
• Contact Plating: Nickel
• Locking: Locking
• Sealed: Not Sealed
• Packaging Type: Bulk
• Standard Connector Type: 1/4" Phone Jacks & Plugs
• Jack-Plug Type: Jack
• Special Feature: Open Frame

Electrical

• Contact Resistance: 0.03 Ohms
• Dielectric Withstanding Voltage: 500 Volts
• Insulation Resistance: 10000 MOhms
• Voltage Rating: 25 Volts
• Current Rating: 1 Amps
• Circuit-Schematic: Double Open

Mechanical

• Life Cycle: 10000 Cycles
• Operating Force: 7 lbs
• Coupling Locking Style: Threaded
• Panel Thickness: 0.156 in

Environmental

• Temperature Range: -55C to +85C
• Shielding: Unshielded
• Humidity Rating: MIL-STD-202 Method 106
• Moisture Resistance: MIL-STD-202 Method 106
• Salt Spray: MIL-STD-202 Method 101
• Minimum Temperature: -55 C
• Maximum Temperature: 85 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: FretMax
• IP Rating: IP66

Material

• Body Material: Copper Alloy
• Body Plating: Nickel
• Contact Material: Copper Alloy
• Insert Material Type: Rigid Plastic Insulating Spacers
• Terminal Material: Copper Alloy
• Spring Material: Copper Alloy
• Sleeve Material: Copper Alloy

ProductSiteLaunchDate : 2024-07-23T18:53:17.217Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 60131500
WarrantyDescription : Limited lifetime warranty.
