Specification
AgeRangeDescription : Adult
BraceletForm : wristband
Brand : CNCTOPBAOS
BulletPoint1 : Rotary Axis Parameters: Axis height: 1.96 inch (50mm) It can be elevated angle of 90°; External dimensions: 5.11x3.54x3.54 inch (130x90x90mm); Mounting hole size: 1.96x1.96 inch (50x50mm) M5/M6 screw; The inner clip application range: for products with an outside diameter of 0.07-3.26 inch (2-83mm); The outer support application range: for products with an inner diameter of 0.43-3.58 inche (11-91mm)
BulletPoint2 : Features: Adopting high-quality stainless steel material to maintain stable rotation of the rotary axis,the surface is carefully polished to make it have good corrosion resistance, not easy to be oxidized and rusted and always ensure highly accurate accuracy
BulletPoint3 : Advantages: Supports 90° rotation positioning and manual locking, with adjustable angles and simple methods;The turntable elastic clamping ensures fast loading and unloading, maximizing work efficiency; With accurate clamping forcewhich can effectively prevent loosening and slipping of the marking parts
BulletPoint4 : Specifications of Stepper motor: Hybrid Nema24 type;1.8 degree;Holding Torque: 2.3N.m; Rated Current: 3.5A; Frame Size: 60x60x76mm; Lead: 4-Wire; Matched driver model: DM556S etc
BulletPoint5 : Widely Applications: The rotary axis has a wide range of applications and can be used in laser marking machines, laser welding machines, laser engraving machines,and mainly used for light and short products such as rings,bracelets,bearings,necklaces and jewelry etc
BulletPoint6 : 【Red Dot Guidance】The red dot shows the laser head position, marks the working path and frames the project sizes, assisting you with more convenience and guidance.
BulletPoint7 : 【Large Water Cooling Capacity】1.6 gallon (6L) water tank features a closed design to reduce water evaporation and ensures a powerful cooling performance. The water level observation window at the back of the machine lets you keep track of use and know when to refill the tank.
BulletPoint8 : Laser Class 4, 60000 mW output power.Model:YX570
ClaspType : Round Clasp
Collection : All
Color : Black
CustomerPackageType : Standard Packaging
Department : unisex-adult
ExternallyAssignedProductIdentifier : 3501140139324
ExternallyAssignedProductIdentifier1 : 713482699395
ExternallyAssignedProductIdentifier2 : 0713482699395
GemType : Pearl
GpsrSafetyAttestation : 1
GradeRating : Fine
IncludedComponents : 2*Pneumatic Tube & Handle, 1*Micromotor Handpiece, 1*Handpiece Base, 2*Alien Wrench, 6*Quick Change Chunk, 6*Graver, 1*Power Cord, 1*Pedal, 1 x LK-A08 Power Supply, 2 x Cable
ItemLength : 8.27 inches

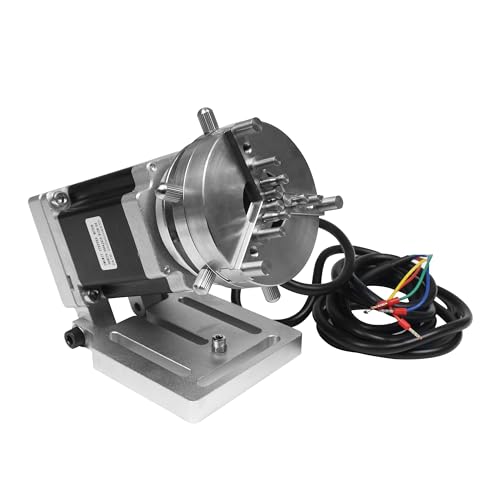

ItemName : CNCTOPBAOS D69 Mini Rotary Axis with 83mm Chuck for Laser Marking Machine,Fiber Laser Engraver Machine Rotary Chuck Attachment for Ring Jewelry Bracelet Bearings Marking Tool Small Hardware Necklaces
ItemPackageDimensions_Height : 6.69 inches
ItemPackageDimensions_Length : 10.2 inches
ItemPackageDimensions_Width : 8.66 inches
ItemPackageQuantity : 1
ItemShape : Circle
ItemTypeKeyword : engraving-tools
Manufacturer : CNCTOPBAOS
Material : Stainless steel
MaximumRotationalSpeed : 35000 rpm
MetalStamp : 0.925
MetalType : Zinc
ModelName : FTVOGUEyucqi7nth6
ModelNumber : D69
NumberOfItems : 1
OccasionType : Birthday
OccasionType1 : Wedding
OccasionType2 : Anniversary
OccasionType3 : Christmas
OccasionType4 : Birthday
PartNumber : D69
PowerSourceType : Corded Electric
ProductDescription :

Package include:

1x D69 Mini Rotary Axis

1x Spring

1 Set of Clip pins

Specifications:

Axis height: 1.96 "(50mm)

Elevation angle: 90 degrees

Chuck: D69 model

Inner clamp application: product outer diameter 0.07 "-3.26" (2-83mm)

External support application: product inner diameter 0.43 "-3.58" (11-91mm)

Application card needles: equipped with 4 types of card needles with 3 each

Transmission mode: direct connection

External dimensions: 5.11*3.54*3.54 "(130*90*90mm)

Installation hole size: 1.96*1.96" (50*50mm) (M5/M6 screw)

Nema24 Stepper motor:

Motor Type: Hybrid

Step Angle: 1.8 degree

Holding Torque: 2.3Nm

Rated Current: 3.5A

Phase Resistance:2.5ohms

Inductance: 6.3mH+/-20%(1KHz)

Frame Size: 60x60x76mm

Number of Leads: 4

Insulation class: B

Matched driver model: DM556S ect

Wiring:

Stepper motor's red wire connect to driver's A+ port

Stepper motor's green wire connect to driver's A- port

Stepper motor's yellow wire connect to driver's B+ port

Stepper motor's blue wire connect to driver's B- port

Features:

1: Mainly used for light and short products such as rings and bracelets.

2: Chuck maintenance: pls lubricate the moving parts regularly to increase the service life.

3: Advantages: large force, through hole, no shaking, turntable elastic clamping, quick installation Unloading improves work efficiency.

ProductSiteLaunchDate : 2023-11-24T07:26:30.379Z
Size : one size
SpecificUsesForProduct : Jewelry Making
Style : Pencil
SubjectCharacter : Pearl
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
TargetGender : unisex
Theme : Silver
UnitCount : 25
UnspscCode : 27112700
Voltage : 24 volts_of_direct_current
WarrantyDescription : 1 year
