Specification
BaseType : Fixed
Brand : WUPYI
BulletPoint1 : ★Dimensions: 1150x970x650mm (LxWxH); Working platform size: 1045x720mm (LxWxH); Frame material: The whole machine adopts 6061 aluminum profile; Maximum feeding height: ≤140mm (Z axis base to platform); X, Y, Z work Area: 600x900x150mm.
BulletPoint2 : ★The NEW 2.2KW water-cooled VFD is available operating for long time,which can reinforced the processing ability of the machine and can be used to process aluminum alloy and hard wood. Water cooling spindle works more stable and durable.High quality accurate ball Screws drive make the engraving more precision.Anti-blackflash,high precision,long life circle.
BulletPoint3 : ★This 6090 engraving machine is suitable for industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.The mini Frame is movable. The machine can connect with computer as other external device such as printer, scanner...With the assist of the 6090, your design idea will be real-time display.
BulletPoint4 : ★It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal, like aluminum, copper and silver to engrave them into 3D/2D works etc.
BulletPoint5 : ★It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models,instrument panels, wooden products, etc.
Collection : All
Color : 01
CompatibleDevices : Personal Computer
ExternallyAssignedProductIdentifier : 1133286016423
ExternallyAssignedProductIdentifier1 : 0762102561277
ExternallyAssignedProductIdentifier2 : 762102561277

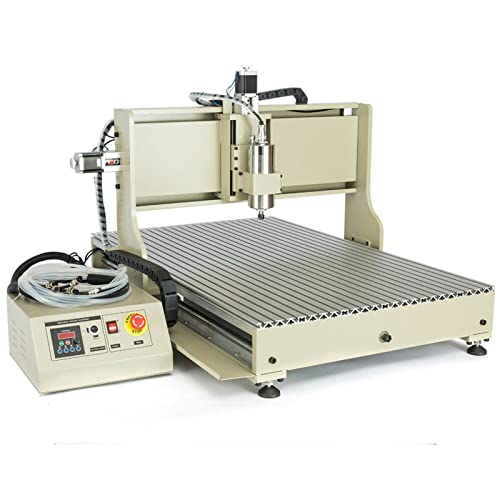

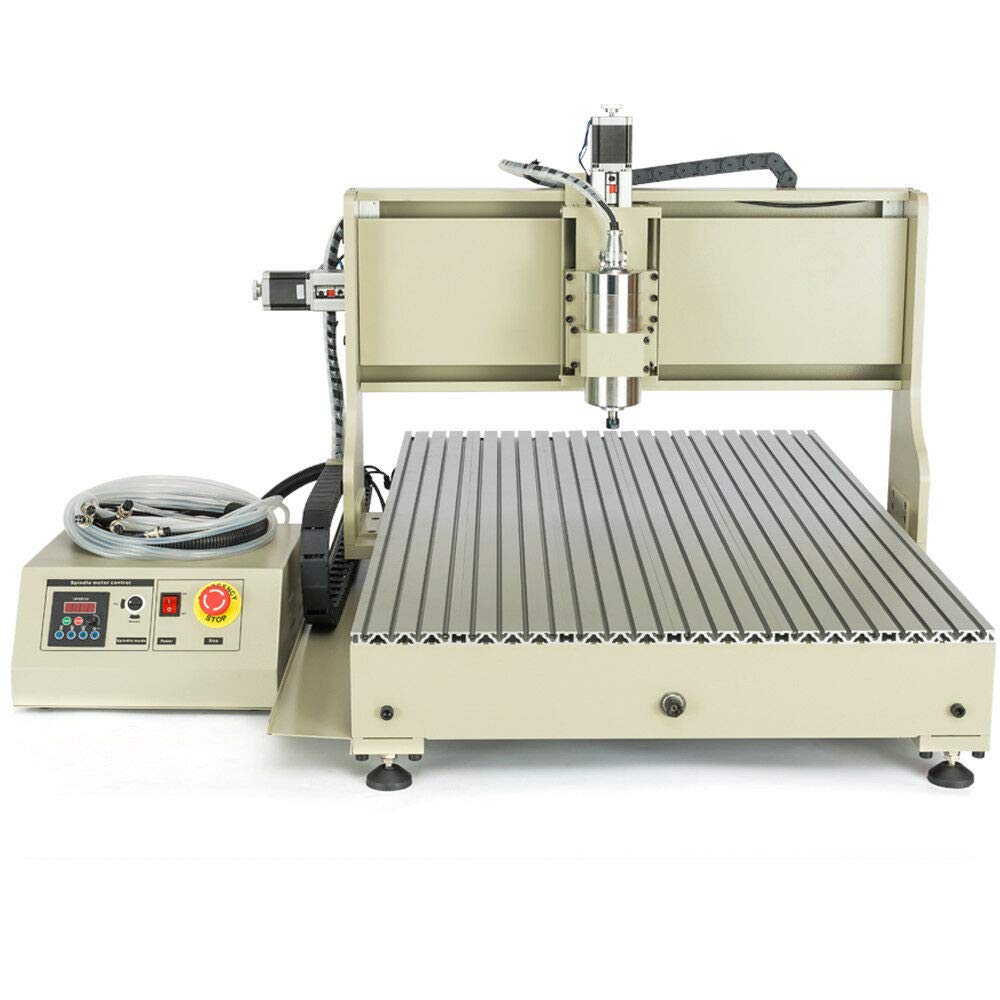

ItemName : WUPYI 4 Axis Engraver 2.2KW CNC 6090 Router Milling Engraving Machine USB Port Desktop Engraving Drilling Milling Machine Drill Wood DIY Artwork Woodworking 3D Cutter Printer
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 6 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : engraving-tools
Manufacturer : WUPYI
Material : Metal
Material1 : Glass
Material2 : Copper
MaximumRotationalSpeed : 24000 rpm
OccasionType1 : Birthday
OccasionType2 : Wedding
OccasionType3 : Engagement
OccasionType4 : Mother's Day
OccasionType5 : Cocktail Party
OccasionType6 : Valentine's Day
OutputWattage : 600 watts
PartNumber : 12
Pattern : 2.2KW-6090
PowerSourceType : Corded Electric
ProductDescription : Sliding unit:
X axis: SFU1605 Ball Screws;
Y axis: SFU1605 Ball Screws;
Z axis: SFU1204 Ball Screws
Drive unit:
X axis: ø20 High intensity round rail;
Y axis: SBRø20 high-strength aluminum base rails;
Z axis: ø12 high-strength round rail
Stepping motor: two-phase 3A (with handwheels)
Driving Power for Stepping motor: AC110, 240W, Output DC 24V, 10A
Working Speed: 50-1500mm/min (different material with different speed settings)
Spindle motor: 2200Whigh-speed variable frequency spindle motor, ER11 chuck, matching 6mm bur
Variable-frequency Drive(VFD): AC110V, 2200W, 0-400Hz (built-in Control box )
Drive of Stepping motor 0-3.5A adjustable four-axis drive(TB6560AHQchip, 24V power supply, 2, 4, 8, 16 Subdivision settings, Factory setting: 8 subdivided)
Repositioning precision: ≤0.05mm
Speed: 0-24000r/m
Cooling method: Water cooling, Matching heat dissipation water pump
Spindle precision: Radial runout≤0.03mm
Carving command:G code/TAB file/nc/TAB /NCC/file
Protection: Emergency stop button
Recommend software: EMC2
Communication interface: through USB PORT connect with computer
Software environment:Windows XP / win7 with 32 bites,
Input Volts: AC110V
Gross weight of machine :About 145kg/320lb
Update function: with limit switch

Package list:
1X main unit (Frame)
1X main unit (working base)
2X Fence baffle
1X control box
1X A axis
1X Signal cable for A axis
1X pump
1X USB cable
2X cutter 2*6mm
2X cutter 3*6mm
10X 4*7mm round head
6X 4*10mm black Inner six angle screw with nut
8X 5*20mm black Inner six angle screw
4X 5*8mm Flat Philip's head screw with nut and gasket
8X 6*24mm BALCK FLAT Inner six angle screw
12X Aluminium fastener
1X 13-15# Wrench
1X 14-17# Wrench
2X six angle Wrench(3mm)
2X six angle Wrench(4mm)
1X Teflon tape
2X Fuse (5A)
1X Power cable
1X Manual
ProductSiteLaunchDate : 2019-05-09T08:44:35.071Z
RingFormType : solitaire
Size : 8
Style : GY600W-5-24-46A
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 27112700
Voltage : 110 volts
Wattage : 600 watts
