Specification
Brand : Karono
BulletPoint1 : 【High Speed and High Density】High speed and high density MPO to MPO patch cable, (MPO FEMALE Connector without PIN). Low insertion loss and back reflection loss process
BulletPoint2 : 【TYPE B & IEEE802BM】MMF(50/125um), OM3 10G standard, LSZH sheet, 12-core fibers cable, constructed with TYPE B (Chanel 1 to Chanel 12)
BulletPoint3 : 【High-performance for Your Datacenter】IL at 850nm <0.6 dB (typ. 0.3 dB), RL dB at 850nm > 25 Db; Common configuration for connecting MPO / MTP cassettes and QSFP+ Transceivers
BulletPoint4 : 【Better Get It Here, No Doubt About Quality】High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards. The flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies
BulletPoint5 : ★CAUTION: If you are a purchaser and do not know the technical parameters, please be sure to confirm the polarity of the cables with the technician before placing an order, or contact us first, the polarity is an important parameter affecting communication.
Color : Aqua
CompatibleDevices : Server
CompatibleDevices1 : Antenna
CompatibleDevices2 : Communication Device
CompatibleDevices3 : Security Device
CompatibleDevices4 : Audio/Video Device
ConnectorGender : Female-to-Female
ConnectorType : Optical
CustomerPackageType : Standard Packaging
DataTransferRate : 40 gigabits_per_second
ExternallyAssignedProductIdentifier1 : 797444878912
ExternallyAssignedProductIdentifier2 : 0797444878912
Frequency : 11 GHz
GpsrSafetyAttestation : 1
IncludedComponents : Cable
IndoorOutdoorUsage : outdoor
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

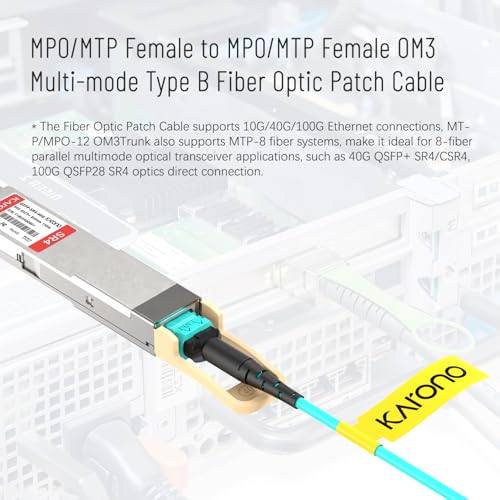

ItemName : Karono Aqua 10 ft OM3 MPO to MPO Cable, 12 Fibers, Type B, for 40GB QSFP+ Transceivers, MTP Compatible
ItemPackageDimensions_Height : 16.5 centimeters
ItemPackageDimensions_Length : 1.3 centimeters
ItemPackageDimensions_Width : 15.5 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : fiber-optic-audio-cables
Manufacturer : Karono Science & Technology Co., Limited
Material : Copper
ModelName : KR12MB3M
ModelNumber : KR12MB3M
NumberOfItems : 2
NumberOfPins : 2
PartNumber : KR12MB3M
ProductDescription : Description:

multi-mode MPO products are multifiber connectors used in high-density backplane and
Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO
stander is fully compatible with MTP stander, offers up to 12 times the density of standard
connectors, such as LC/SC/FC etc. MPO/MTP patch cord providing sinificant space and cost
savings.
MPO patchcord utilize precision molded MT ferrules, with metal guide pins and precise
housing dimensions to ensure fiber alignment when mating. The MPO can be mass
terminated in combination of 4, 8, 12 or 24 fiber ribbon cables.

Compatible for :

QSFP-40G-SR4, QSFP-40G-SR4-S, QSFP-40F-CSR4
Extreme 40GB-ESR4-QSFP
Juniper QFX-QSFP-40G-SR4 and QFX-QSFP-40G-ESR4.
Brocade 40G-QSFP-SR4.
Arista QSFP-40G-SR4 and QSFP-40G-XSR4.
Hawei QSFP-40G-ISR4 and QSFP-40G-eSR4.
H3C JG325A,JG325B and JG709A

ProductSiteLaunchDate : 2016-12-17T12:31:05.939Z
RecommendedUsesForProduct : Data Center Cabling System
Size : 10ft (3M)
SpecificationMet : IEEE
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 43202222
