Specification
Brand : WsrrLun
BulletPoint1 :
BulletPoint2 :
BulletPoint3 :
BulletPoint4 :
BulletPoint5 :
CareInstructions : Hand Wash
Color : Blue
ExternallyAssignedProductIdentifier1 : 0756804400439
ExternallyAssignedProductIdentifier2 : 756804400439
IncludedComponents : 1* Filter
ItemForm : Powder
ItemName : 2" NPT Bag Filter Housing Multi-Purpose Bag Filtering Equipment High Pressure Filtration System 304 Stainless Steel Industrial Pressure Flu-id Filter in/Out #2 Bag with Mesh 150 PSI
ItemPackageDimensions_Height : 1.18 inches
ItemPackageDimensions_Length : 9.84 inches
ItemPackageDimensions_Width : 4.72 inches
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-process-filter-bags
ItemVolume : 1 cubic_centimeters
Manufacturer : WsrrLun
Material : Polyester
ModelName : Paint Buckets
ModelNumber : /
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : bag filter
ProductDescription :

Introduction

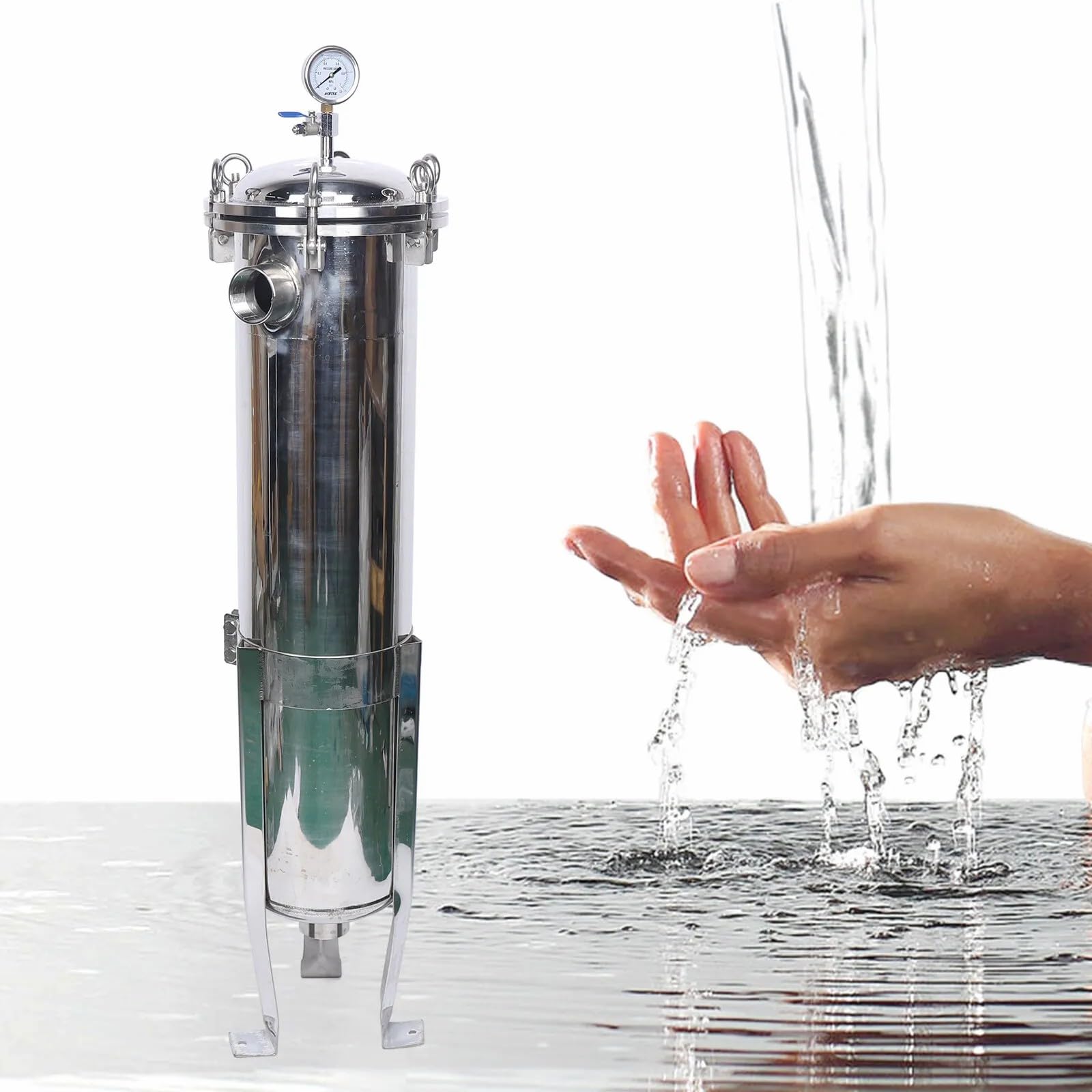

Bag filter is a kind of multi-purpose filtering equipment with novel structure, small size, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability. Inside the bag filter, the filter bag is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. Impurities are intercepted in the filter bag and can be used continuously after replacing the filter bag.

Parameters

Package weight: 22kg

Material: 304 stainless steel

Specification: Diameter 219mm

Height: 1145mm

Wall thickness: 2.0mm

Bag specifications: 180*810mm

Filter area: 0.46㎡

Maximum flow : 30-40t/h

Import/Export: DN50 inner wire

Pressure: 1.0 Mpa

Net Weight：20Kg（44.09Lb）

Features

1.Efficient and airtight: It consists of filter cylinder body, filter cylinder cover and quick opening mechanism, stainless steel filter bag reinforced net and other main components. The filtrate flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket, and the liquid penetrates A qualified filtrate can be obtained after the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag.

2.Easy and flexible operation, energy saving: The probability of side leakage of the bag is small, the filter accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost.

3.Easy to clean: The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is smooth and easy to clean.

4.Movable foot design: height can be adjusted around 1145mm.

Packing

Filter*1

ProductSiteLaunchDate : 2024-07-03T09:38:36.638Z
Size : 50cmx40cm
Style : centimeter
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40161505
