Specification
Brand : YINZINR
BulletPoint1 : 【Efficient and airtight work】: It consists of filter cylinder body, filter cylinder cover and quick opening mechanism, stainless steel filter bag reinforced net and other main components. The filtrate flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket, and the liquid penetrates A qualified filtrate can be obtained after the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag.
BulletPoint2 : 【Easy and flexible operation, energy saving】: The probability of side leakage of the bag is small, the filter accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost
BulletPoint3 : 【Easy to clean】: The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is smooth and easy to clean.
BulletPoint4 : 【Movable foot design】: Height can be adjusted around 745mm
BulletPoint5 : 【After sales servic】: If the item unfortunately doesn't work or doesn't work well, we have our engineers to provide professional assistance. Otherwise, we have many convenient ways to return the item. Please pay attention to our return policy.
Color : Blue
ExternallyAssignedProductIdentifier : 4861161192463
ExternallyAssignedProductIdentifier1 : 0759224475971
ExternallyAssignedProductIdentifier2 : 759224475971
IncludedComponents : Filter*1
InstallationType : Freestanding
ItemDisplayDimensions_Height : 0.04 inches
ItemDisplayDimensions_Length : 21.26 inches
ItemDisplayDimensions_Width : 19.69 inches
ItemDisplayWeight : 0.26 grams

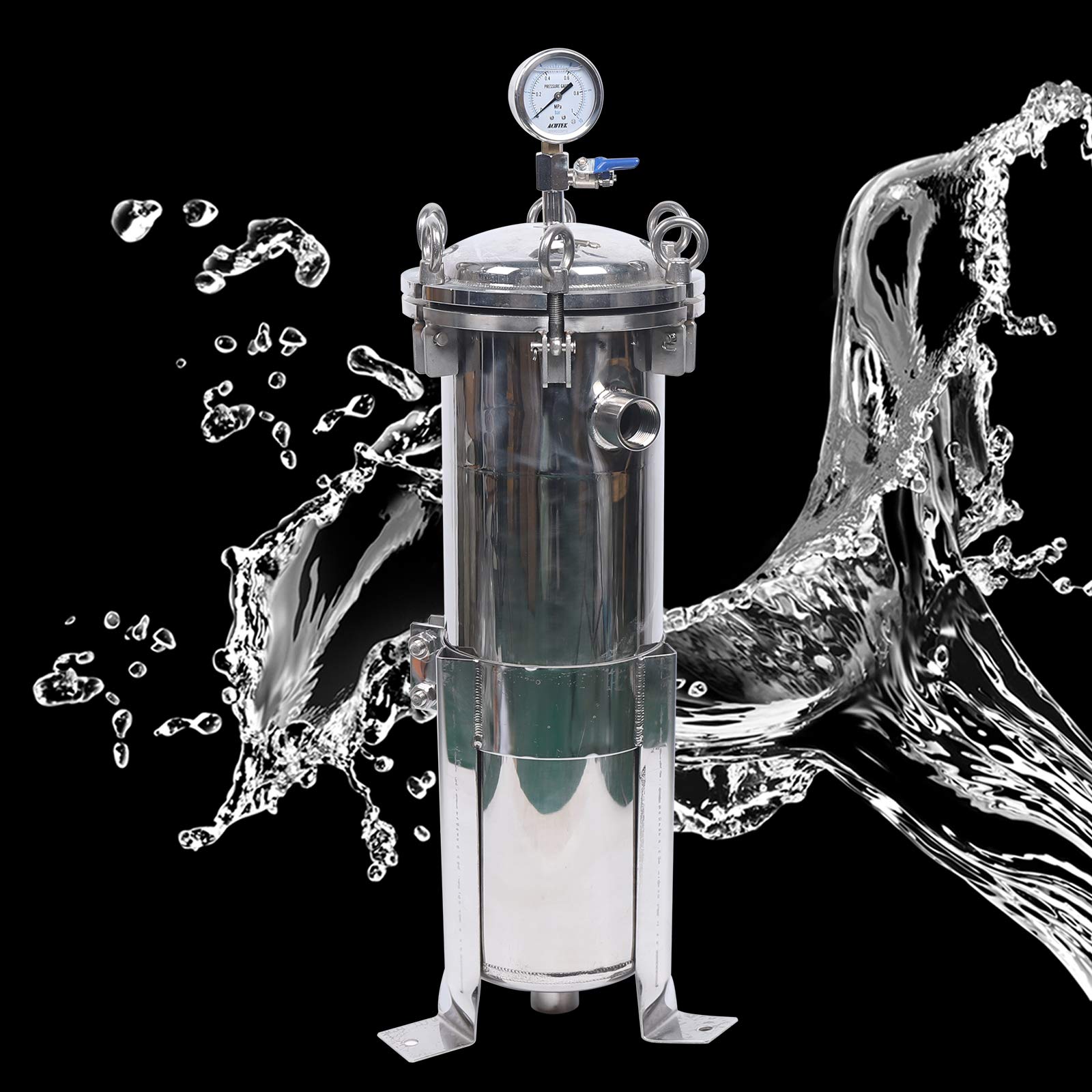

ItemName : Bag Filter Housing, 304 Stainless Steel Filter Bag Housing 150PSI High Pressure Filtration System in/Out Bag Water Filter Purification Equipment
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 29 centimeters
ItemPackageDimensions_Width : 22 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-process-filter-bags
Manufacturer : YINZINR
Material : Stainless Steel
Material1 : Polyester
Material2 : Nylon
ModelName : 2#
ModelNumber : LG445893Y105
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
PartNumber : HX-cA45
ProductDescription :

Introduction to filters:

Bag filter is a kind of multi-purpose filtering equipment with novel structure, small size, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability. Bag filter is a new type of filtration system. Inside the bag filter, the filter bag is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter ba g. Impurities are intercepted in the filter bag and can be used continuously after replacing the filter bag.

To Filter principle:

The bag filter is a pressure filter device, which mainly consists of a filter cylinder, a filter cylinder cover, a quick opening mechanism, and a stainless steel filter bag reinforcement net. The filtrate flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket. The qualified filtrate can be obtained when the liquid penetrates the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag. This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.

Bag filter has many advantages such as reasonable structure, good sealing, strong circulation ability, and easy operation. In particular, the probability of side leakage of the filter bag is small, the filtering accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost. The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is smooth and easy to clean.

Product parameters:

Package weight: 12kg

Material: 304 stainless steel

Specification: diameter 167mm

Height: 745mm

Wall thickness: 2.0mm

Bag specifications: 102*410mm

Filter area: 0.13㎡

Maximum flow : 10t/h

Import/Export: DN25 inner wire

Pressure: 1.0Mpa

Net Weight：11Kg（24.25Lb）



Packing List:

Filter*1

ProductSiteLaunchDate : 2024-05-20T03:28:44.779Z
PurificationMethod : Ultra Filtration
Size : 40.00X32.00X0.10CM
Style : centimeter
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 11.2348
UnspscCode : 40000000
