Specification
Brand : SanBouSi
BulletPoint1 : ★The Bag Filter Housings: The bag filter is a pressure filter device, which mainly consists of a filter cylinder, a filter cylinder cover, a quick opening mechanism, and a stainless steel filter bag reinforcement net. the filter bag is supported by a metal mesh basket. It is suitable for water treatment, printing ink, petroleum, beverage and many other fields
BulletPoint2 : ★Efficient Work: It consists of filter cylinder body, filter cylinder cover and quick opening mechanism, stainless steel filter bag reinforced net and other main components. The filtrate flows into the filter bag from the side inlet pipe of the filter housing
BulletPoint3 : ★Airtight: The filter bag itself is installed in the reinforced mesh basket, and the liquid penetrates A qualified filtrate can be obtained after the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag
BulletPoint4 : ★Easy and flexible operation, energy saving: The probability of side leakage of the bag is small, the filter accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost
BulletPoint5 : ★Easy to clean: The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is smooth and easy to clean. Movable foot design, height can be adjusted around 1145mm
ExternallyAssignedProductIdentifier1 : 0722487850489
ExternallyAssignedProductIdentifier2 : 722487850489
IncludedComponents : Vacuum Filter Set

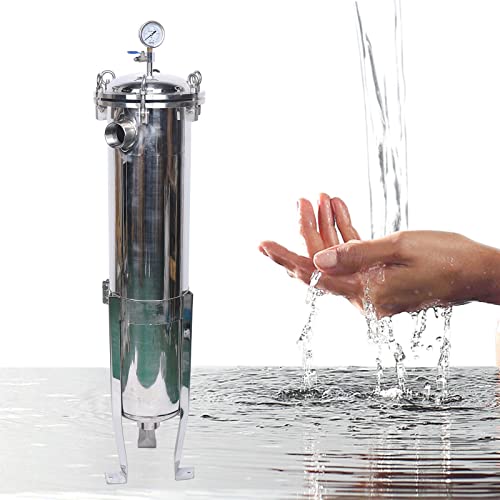

ItemName : 2 Inch NPT Bag Filter Housing 304 Stainless Steel #2 Bag Water Filter Purification Equitment with Mesh
ItemTypeKeyword : industrial-process-filter-housings
Manufacturer : ANINZE
NumberOfItems : 1
PartNumber : 722487850489
ProductDescription :

304 Stainless Steel Bag Filter Housing 150PSI 30-40t/h High Pressure Filtration

Introduction to filters

Bag filter is a kind of multi-purpose filtering equipment with novel structure, small size, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability. Bag filter is a new type of filtration system. Inside the bag filter, the filter bag is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. Impurities are intercepted in the filter bag and can be used continuously after replacing the filter bag.

To Filter principle

The filtrate flows into the filter bag from the side inlet pipe of the filter housing. The filter bag itself is installed in the reinforced mesh basket. The qualified filtrate can be obtained when the liquid penetrates the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag. This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.

Product parameters:

Package weight: 22kg

Material: 304 stainless steel

Specification: Diameter 219mm

Height: 1145mm

Wall thickness: 2.0mm

Bag specifications: 180*810mm

Filter area: 0.46㎡

Maximum flow : 30-40t/h

Import/Export: DN50 inner wire

Pressure: 1.0 Mpa

Net Weight：20Kg（44.09Lb）

Packing list: Bag Filter Housing *1

ProductSiteLaunchDate : 2023-01-09T07:16:51.299Z
PurificationMethod : Activated Carbon
Size : 1000L/H
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 40000000
