Specification
Brand : GOSHET
BulletPoint1 : 【HIGH EFFICIENCY】:It consists of filter cartridge body, filter cartridge cover and quick-opening mechanism, stainless steel filter bag reinforcing mesh and other main parts. The bag itself is installed in the reinforced mesh basket, and the qualified filtrate can be obtained after the liquid passes through the filter bag of the required fineness level, and the impurity particles are retained by the filter bag.
BulletPoint2 : 【REASONABLE DESIGN】:The bag filter has the advantages of reasonable structure, good sealing, strong circulating ability and convenient operation. The filtrate flows into the filter bag from the inlet pipe of the filter shell side.
BulletPoint3 : 【CONVENIENT OPERATION】:The probability of side leakage of the filter bag is small, which can correctly guarantee the filtration precision, and the filter bag can be quickly replaced, which reduces the operation cost and saves energy.
BulletPoint4 : 【EASY TO CLEAN】:The inner and outer surfaces of the filter are mechanically sandblasted and polished, with smooth and easy-to-clean surface.
BulletPoint5 : 【ADJUSTABLE】:Movable foot design, the height can be adjusted around 745mm.
Color : Black, White
IncludedComponents : 1*Filter
ItemDisplayDimensions_Height : 16 centimeters
ItemDisplayDimensions_Length : 12 centimeters
ItemDisplayWeight : 0.55 kilograms

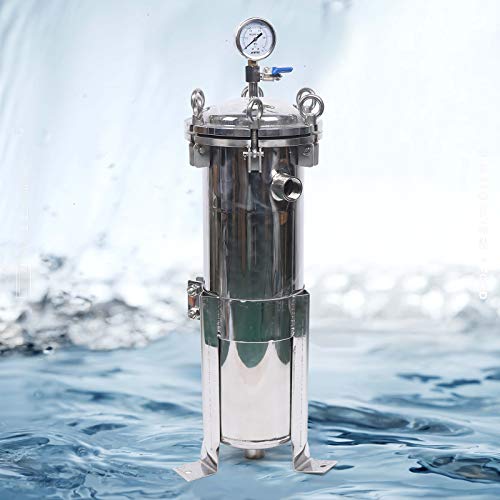

ItemName : 4 Bag Filter Housing, 150PSI 10T/H Flow 1.0MPA Pressure 167MM Diameter 304 Stainless Steel High Pressure Filtration System Filter Device for Liquid Filtration, Purification, Separation, Recovery
ItemPackageDimensions_Height : 7 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-process-filter-housings
Manufacturer : Gdrockpond
Material1 : Metal
Material2 : Iron
MetalType : White Iron
ModelName : Metal Water Filter Housing Fixed Bracket
ModelNumber : CJY240710D2TH
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : fsdf2sdsdsdsd
Pattern : Good Load-bearing Performance
ProductDescription :

Introduction to filters

Bag filter is a kind of multi-purpose filtering equipment with novel structure, small size, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability. Bag filter is a new type of filtration system.    Inside the bag filter, the filter bag is supported by a metal mesh basket.

The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag.Impurities are intercepted in the filter bag and can be used continuously after replacing the filter bag.

To Filter principle

The bag filter is a pressure filter device, which mainly consists of a filter cylinder, a filter cylinder cover, a quick opening mechanism, and a stainless steel filter bag reinforcement net.

The filtrate flows into the filter bag from the side inlet pipe of the filter housing.The filter bag itself is installed in the reinforced mesh basket.

The qualified filtrate can be obtained when the liquid penetrates the filter bag of the required fineness level, and the impurity particles are intercepted by the filter bag.

This machine is very convenient to replace the filter bag, and the filter basically has no material consumption.

Bag filter has many advantages such as reasonable structure, good sealing, strong circulation ability, and easy operation.

In particular, the probability of side leakage of the filter bag is small, the filtering accuracy can be correctly guaranteed, and the filter bag can be changed quickly, which reduces the operating cost.

The inner and outer surfaces of the filter are solved by mechanical sandblasting and polishing, which is smooth and easy to clean.

Product parameters:

Package weight: 12kg

Material: 304 stainless steel

Specification: diameter 167mm

Height: 745mm

Wall thickness: 2.0mm

Bag specifications: 102*410mm

Filter area: 0.13㎡

Reference flow: 10t/h

Import/Export: DN25 inner wire

Pressure: 1.0mpa

packing list:

Filter*1

ProductSiteLaunchDate : 2024-07-25T09:07:27.353Z
Size : 60*112*78mm/2.36*4.41*3.07in
Style : Environmentally Friendly Baked Enamel Finish
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 40000000
