Specification
Brand : QJZ
BulletPoint : High quality pressed steel 1" two bolt flange bearing. the bearing has a narrow inner ring with two set screws for attaching to the shaft. this bearing is flush mount and the insert is mounted rigid in the housing (angle of bearing cannot adjust). bearing comes pre-filled with grease.; this bearing is also known as: peer fhsr205-16-2fm; basic dimensions: shaft size: 1"; bolt distance: 3.00"; overall length: 3.75"; overall width: 2.78"; overall thickness: 1.06
BulletPoint1 : [Items] - UC207-20 Insert Bearing + F207 Cast Iron Housing
BulletPoint2 : [Dimensions] - Overall Height 44.4 mm / Overall Width 117 mm / Inner Diameter 1-1/4 in
BulletPoint3 : [Bolt Used] - M12 | 1/2"
BulletPoint4 : [Locking Device] - Set Screw
BulletPoint5 : [Quantity in Package] - 2 Pieces of Standard 4-Bolt Flange Bearing Unit
ExternallyAssignedProductIdentifier1 : 0748139270306
ExternallyAssignedProductIdentifier2 : 748139270306
IncludedComponents : Bearing

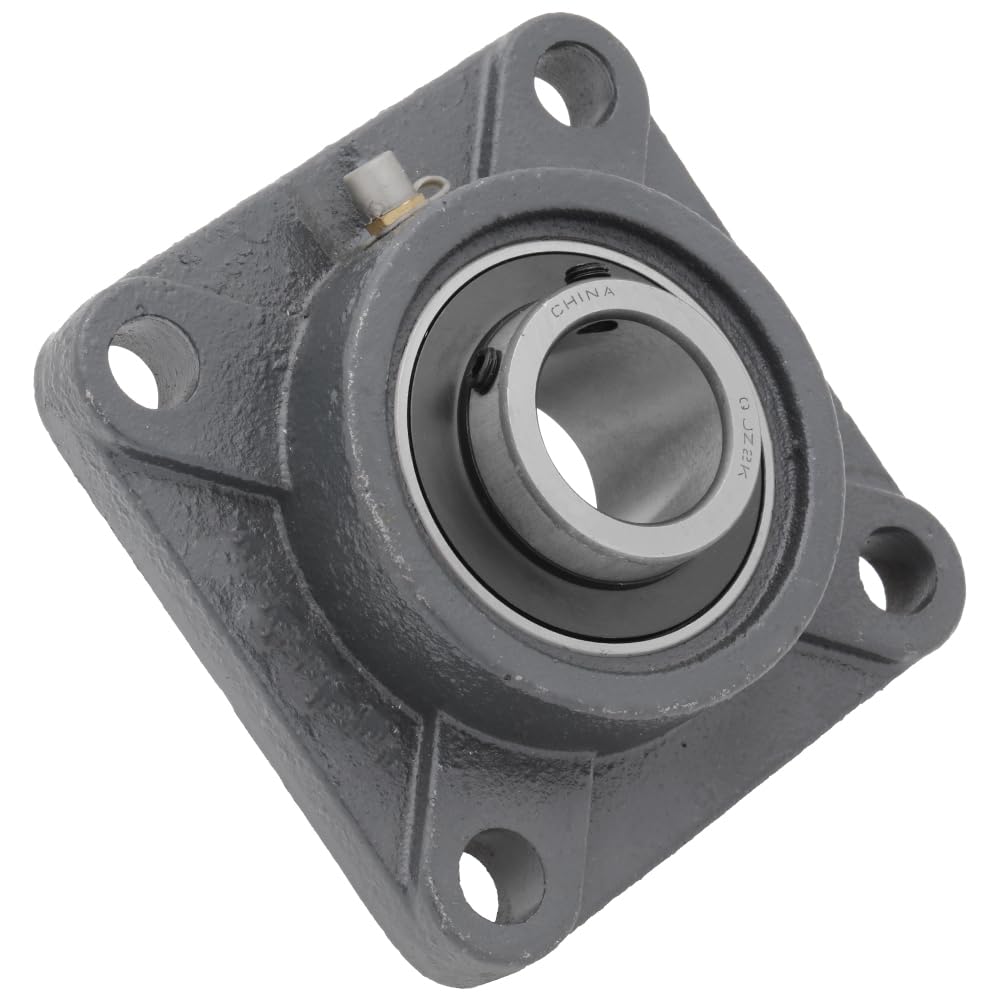

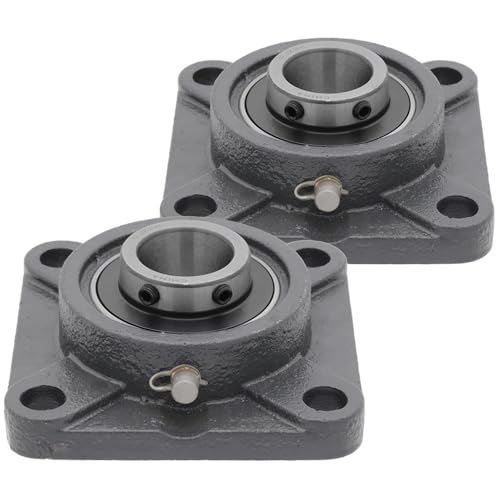

ItemName : [2-Pack] UCF207-20 - Premium 4-Bolt Flange Bearing with Cast Iron Housing Including Ball Bearing Insert 1-1/4 in Bore Diameter - UC207-20 Bearing & F207 Housing
ItemPackageQuantity : 1
ItemTypeKeyword : flange-block-bearings
Manufacturer : QJZ
Material : Cast Iron
ModelNumber : 2-Bolt Flange
NumberOfItems : 1
PartNumber : UCF207-20
ProductDescription :

Quantity in Package:

2 Pieces of Standard 4-Bolt Flange Bearing Unit



Items:

UCF207-20

UC207-20 Insert Bearing + F207 Cast Iron Housing



Cross Reference:

AMI: UCF207-20 Browning: VF4S-220 Dodge Part #: 124206 Dodge: F4B-SC-104 Fafnir: YCJ-1 1/4 IPTCI: UCF207-20 Link-Belt: F3-U220N NTN: UCF207-104D1 Peer: UCF207-20 Sealmaster: SF-20



Dimensions:

Overall Height: 44.4 mm

Overall Width: 117 mm

Inner Diameter: 1-1/4 in



Bolt Used:

M12

1/2"



Locking Device:

Set Screw



Dimensions:

Shaft Dia d (in): 1 1/4
L Dimensions mm : 117
J Dimensions mm : 92
A2 Dimensions mm : 21
A1 Dimensions mm : 15
A Dimensions mm : 34
E Dimensions mm : 44.4
N Dimensions mm : 14
S Dimensions mm : 17.5
F Dimensions mm : 55
Z Dimensions mm : 3

ProductSiteLaunchDate : 2016-11-17T23:07:37.550Z
Size : 1-1/4 in Bore Diameter
UnspscCode : 31161500
