Specification
BatteriesRequired : 1
Brand : Graigar
BulletPoint : FTTH Fiber Optic Tool Kit with Fiber Stripping Pliers FC-6S fiber optic cleaver Power Meter Visual Fault Locator 12pcs/pack
BulletPoint1 : *Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Φ); *Automated switch three staff gauge ((Depth d,level p,distance s); *Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity; *Convenient to make and use DAC,TCG and AVG to evaluate the echo, the curve can be modified and compensated
BulletPoint2 : *6dB DAC functions; *500 independence setup, any criterion can be input freely, we can work in the scene without test block; *Big memory of 500 A graph; *Automated gain and gain scan;
BulletPoint3 : *Peak Hold and Peak Memory; *B scan; *AWS D1.1 *Automated make video of test process and play; use upan,the length of video is unlimited.
BulletPoint4 : *Powerful pc software and reports can be export to excel; *Li battery, continue working time up to 12 hours; *The embeded software can be online updated; *Display freeze;
BulletPoint5 : *Automated echo degree; *Angles and K-value; *Lock and unlock function of system parameters; *Electronic clock calendar ; *Two gates setting and alarm indication; *Gate and DAC alarm;
Color : Black
ExternallyAssignedProductIdentifier1 : 0707457582102
ExternallyAssignedProductIdentifier2 : 707457582102
IncludedComponents : /
IncludedComponents1 : Main Body Straight Beam Probe Angle Probe
IncludedComponents2 : Machine-probe Cable Power Adapter (Charger) Data proceeding Software
IncludedComponents3 : USB communication Cable Manual Instrument Case
IncludedComponents4 : Guarantee Card Packing List
IncludedComponents5 : Power Cable，ABS Case

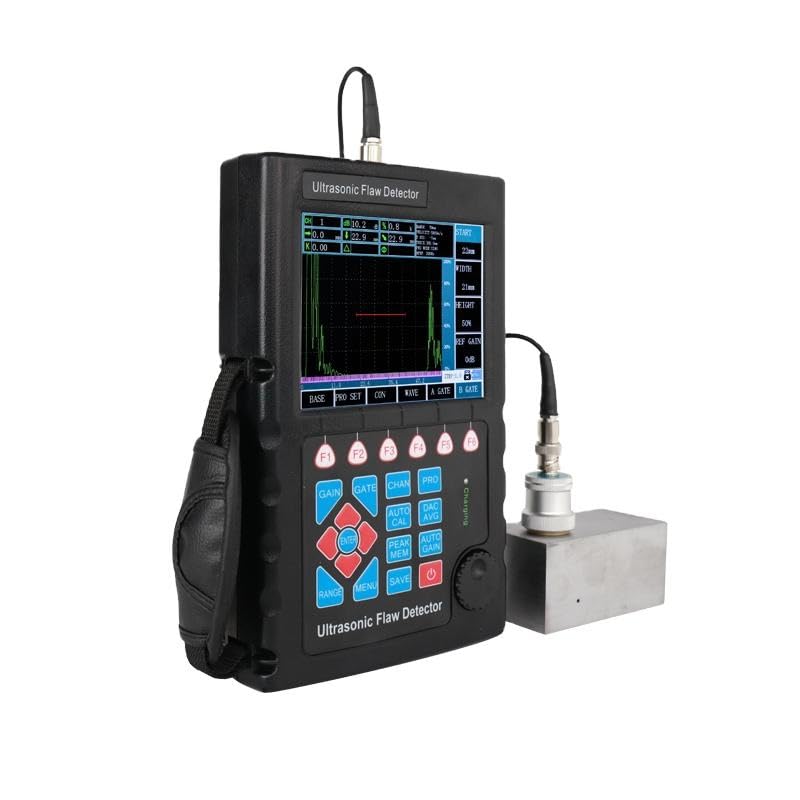

ItemName : JITAI9101 Ultrasonic Flaw Detector NDT Digital Ultrasonic Flaw Detector Measuring Range 0~10000mm
ItemPackageDimensions_Height : 6.69 inches
ItemPackageDimensions_Length : 17.32 inches
ItemPackageDimensions_Width : 14.96 inches
ItemPackageQuantity : 1
ItemTypeKeyword : flaw-detection-tools
Manufacturer : Graigar
Material : Plastic
ModelName : JITAI9101
ModelNumber : JITAI9101
NumberOfItems : 1
PartNumber : WALFRONTsr3upngdye
PowerSourceType : Electronic
ProductDescription :

*Measuring Range (mm):0 ~10000mm

*Channels: 300

*Frequency Range (MHz):0.5 ~20MHz

*Material Velocity (m/s): 1000 ~9999m/s

*Vertical Linearity Error: ≤3%

*Horizontal Linearity Error: ≤0.1%

*Sensitivity Leavings: ≥62dB

*Dynamic range: ≥32dB

*Resolving Power: ≥36dB

*Gain (dB): 0 ~110dB

*Measurement Mode: Single,Dual,Thru

*Reject: 0~80%

*Pulse Displacement (μs): -20 ~+3400

*Zero (μs): 0.0 ~99.99

*Operating Temperature (℃): -20~70

*H*W*D(mm): 245*155*55

*Weight (kg):1.18(with battery)

ProductSiteLaunchDate : 2018-10-16T07:00:00.000Z
Size : 10MW
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 20
UnspscCode : 46171600
