Specification
BatteriesRequired : 1
Brand : Graigar
BulletPoint : FTTH Fiber Optic Tool Kit with Fiber Stripping Pliers FC-6S fiber optic cleaver Power Meter Visual Fault Locator 12pcs/pack
BulletPoint1 : Comprehensive Kit: This FTTH fiber optic tool kit TFS-40D includes essential tools for fiber optic cable installation and maintenance.
BulletPoint2 : Key Components: Features a fiber cleaver, -70~10dbm power meter, 10mW visual fault locator, and various fiber strippers.
BulletPoint3 : Organized Storage: All tools are neatly organized in a durable Aluminum Molded carrying case for easy portability and protection.
BulletPoint4 : Versatile Applications: Suitable for FTTH (Fiber to the Home), FTTX, LAN, and telecommunication fiber optic networks.
BulletPoint5 : Convenient Accessories: Includes additional items like pliers, scissors, cable stripper, and tape measure for added functionality.
Color : Black
ExternallyAssignedProductIdentifier1 : 0707457581921
ExternallyAssignedProductIdentifier2 : 707457581921
IncludedComponents : /
IncludedComponents1 : Main unit，Straight Beam Probe
IncludedComponents2 : Angle Beam Probe，Probe Cable，Battery Module
IncludedComponents3 : Power Adapte，Supporting pillar，Attached files
IncludedComponents4 : Datapro Software，USB Cable
IncludedComponents5 : Power Cable，ABS Case

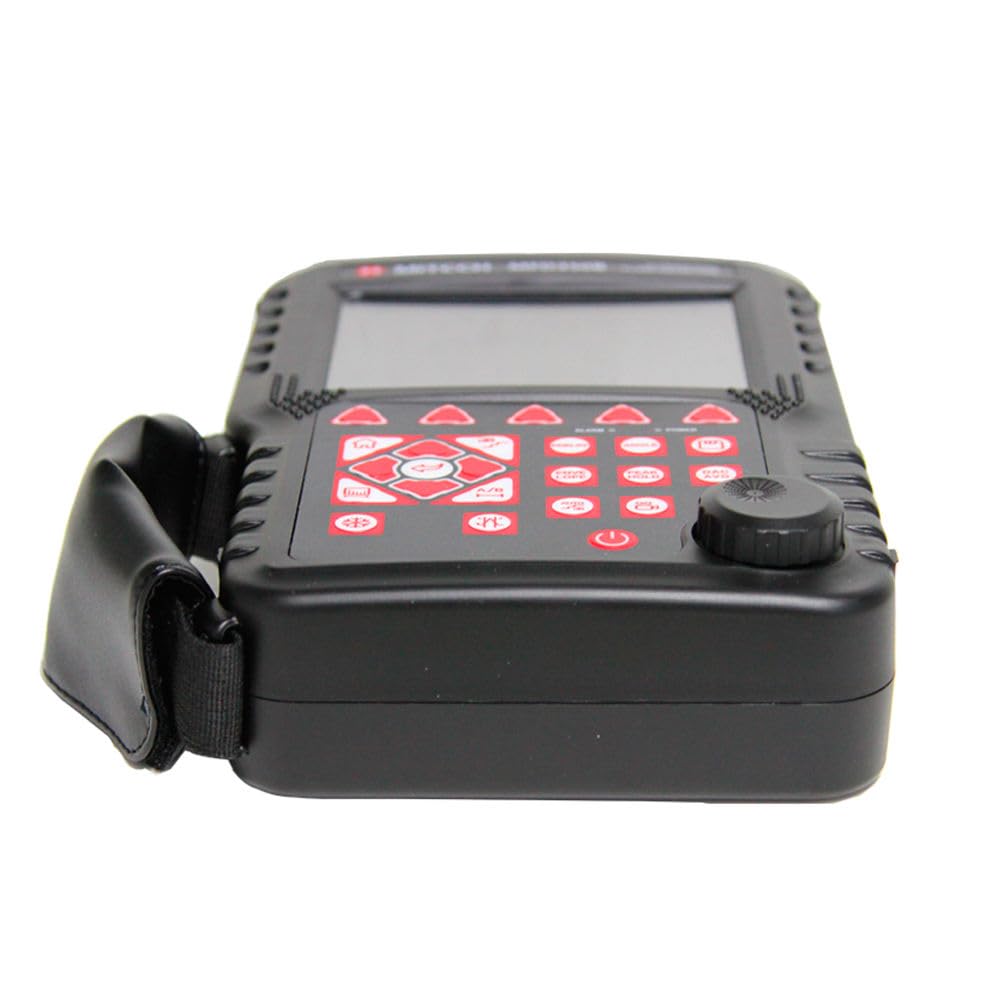

ItemName : MFD550B Ultrasonic Flaw Detector Measuring Range 0-9999 mm at Steel Velocity
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : flaw-detection-tools
Manufacturer : Graigar
Material : plastic
ModelName : MFD550B
ModelNumber : MFD550B
NumberOfItems : 1
PartNumber : WALFRONTsr3upngdye
PowerSourceType : Electronic
ProductDescription :

Display Resolution(640×480 pixels) full digital TFT LCD

Blind Area5MM

Flaw SizingAutomatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection.

Weld Figure FeatureWeld Figure feature can be enabled when detecting the weld parts using angle transducer.

Auto-CalibrationAutomated calibration of transducer zero offset and/or material velocity

Memorybe able to store, recall the A-Scan patterns and instrument settings.

Flaw LocatingLive display Sound-path, Projection (surface distance), Depth, Amplitude

Defect Quantificationdirectly display the result with db unit

Defect characterizationcalculate the equivalent size of the flaw easily and quickly to facilitate the judgment of artificia

Curved Surface Correctionused to measure the surface distance and depth of defect on a curved surface

DAC/AVGY

AWS D1.1one of the AWS(American Welding Society) standards

Crack Height Measuringmeasure and display the height of a crack found inside the workpiece

Magnify Gatespreading of the gate range over the entire screen width

Video Recordingmore than 10 hours

A Scan FreezeDisplay freeze holds waveform and sound path data

Coded Echo Colorlocate the flaw position

B-Scandisplay a graphical cross-section of the workpiece

Power-Saving Methodlow power consumption

Protection LevelIP54

DataPro SoftwareY

Working Languagefreely switch between Chinese and English

Total Weight6.0KG

Measuring Range(0 ~ 10000) mm in steel

Bandwidth0.2 to15MHz automatic matching according to the probe frequency

Material Velocity(100 ~ 15000) m / s

Dynamic Range≥ 36dB

Vertical Linear Deviation≤ 2.0%

Horizontal Linear Deviation≤ 0.1%

Resolution40dB (5P14)

Sensitivity Leavings65dB (flat-bottomed deep hole 200mm∅2)

Rejection(0 to 80)% Linear without affecting the linearity and gain

Noise Level≤ 8%

Probe Typestraight beam probe, angle beam probe, dual element probe, through-transmit probe

GatesWave-getting Gate, Wave-losing Gate, Single Gate Reading, Dual Gate Reading

AlarmBeep Alarm and LED light Alarm

Power SupplyDC 9V

Working Time>10 hours

Overall Dimensions263 × 170 × 61(mm)

Operating Temperature(-10 ~ 50) ℃

Relative Humidity(20 ~ 95)% RH

Pulse Energy200V, 300V, 400V, 500V selectable, suitable for various probe

Pulse Width(30~510)ns range with continuous adjustment to match the different frequency probes

Probe Damping200Ω,500Ω selectable to meet different requirements for resolution and sensitivity.

Sampling10 digits AD Converter at the sampling speed of 400MHz, waveform of highly fidelity.

RectificationPositive half wave, negative half wave, full wave, RF

Gate Readingoptional for single gate and double gate reading mode; peak readings within the gate

Gain0 dB to 110 dB adjustable in selectable steps 0.1 dB, 1 dB, 2dB and 6dB

Transducer ConnectionsBNC or LEMO

ProductSiteLaunchDate : 2018-04-30T07:00:00.000Z
Size : 10MW
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 46171600
