Specification
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : RaeSung
BulletPoint1 : Designed with high performance security-guarantee battery module, it's easy for disassembly and assembly. And it can charge independent with offline.
BulletPoint2 : With digital color TFT LCD display, it can choose the background color and wave color according to the environment. And the LCD brightness also can be set freely by yourself.
BulletPoint3 : MFD350B Ultrasonic Flaw Detector With English display, master-slave menu, shortcut key and digital swiftly knob, it's designed with leading technology and can be used very conveniently.
BulletPoint4 : With small size and light weight, the instrument can be hold by one hand. It's durable in use and lead industry trend.
BulletPoint5 : And the large capacity and high performance Lithium ion battery module make the instrument' continuously working time to above 8 hours.
IncludedComponents : MFD350B Complete set

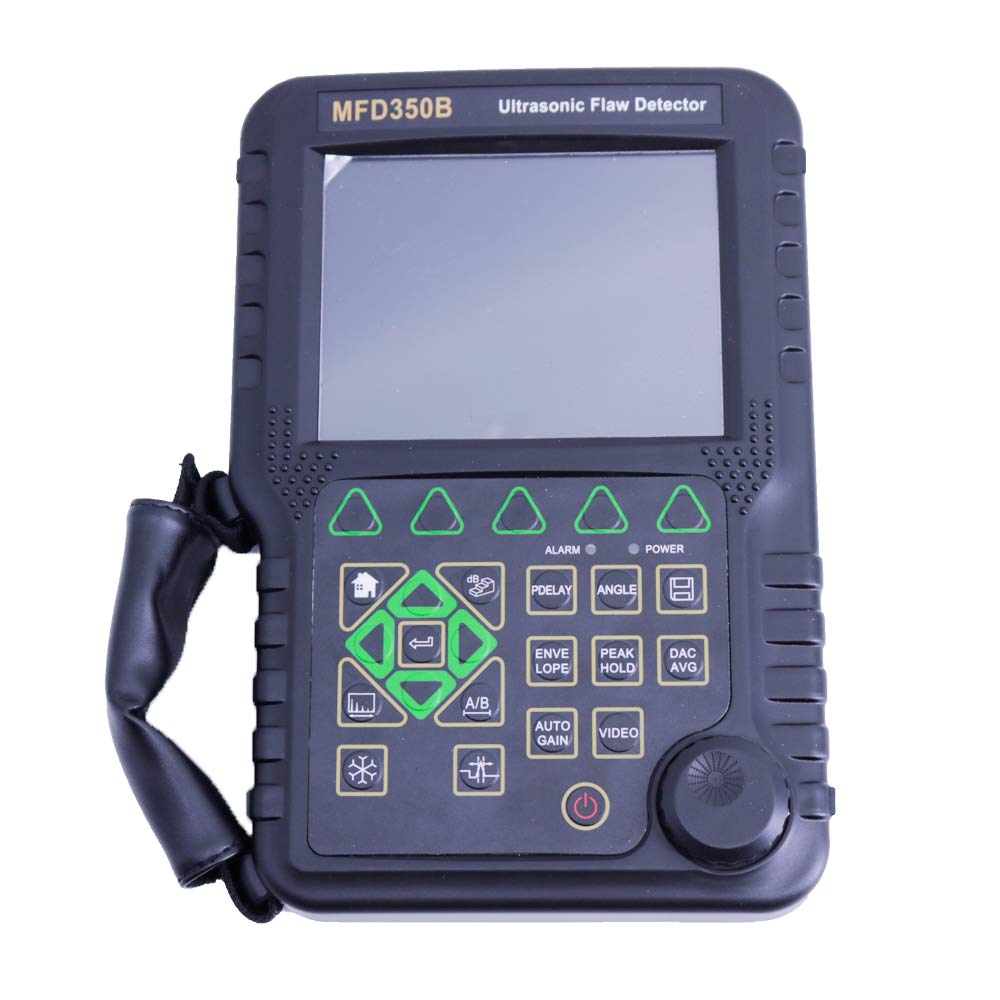

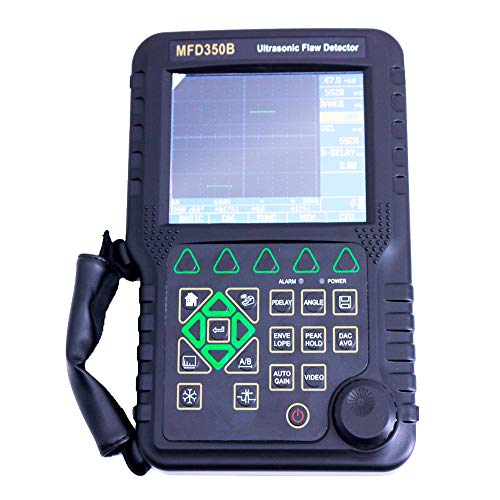

ItemName : RaeSung MFD350B Portable Digital Ultrasonic Flaw Detector MFD-350B Measuring Range 0~6000mm
ItemTypeKeyword : flaw-detection-tools
Manufacturer : RaeSung
MeasurementAccuracy : High
NumberOfItems : 10
NumberOfLithiumIonCells : 1
PartNumber : MFD350B
ProductDescription :

Specification

Range: 0 to 6000 mm, at steel velocity

Material Velocity: 300 to 15000m/s

Display Delay: -20 to 3400 µs

Probe Delay/Zero Offset : 0 to 99.99µs

Sensitivity Leavings: >60dB (flat-bottomed deep hole 200mm2)

Resolution : >40dB (5P14)

Noise Level: ≤ 8%

Test Modes: Pulse echo, dual element and thru-transmission

Pulse Repetition Frequency ranges from 10 Hz to 1000 Hz

Pulse Energy: Low, Medium and High spike pulse.

Damping: 100, 200, 400 ohms

Bandwidth (amplifier bandpass ): 0.2 to 15 MHz

Gate Monitors: Two independent gates controllable over entire sweep range

Rectification: Positive halfwave, negative halfwave, fullwave, RF

System Linear Deviation:Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.

Reject (suppression): 0 to 80% full screen height

Units: Inch or millimeter

Transducer Connections:

Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

Overall Dimensions: 10.35×6.7×2.4 in

Relative Humidity: (20 ~ 95)% RH

Power Supply: DC 9V

Operating Temperature: -10℃ to 50℃

Storage Temperature: -30℃ to 50℃

MFD350B Standard Configuration

Main Body x 1

Straight Beam Probe x 1

Angle Probe x 1

Machine-probe Cable (C9-C5) x 1

Battery Module x 1

Power Adapter (Charger) x 1

Support Pillar x 1

English Manual x 1

Instrument Case x 1

Data proceeding Software x 1（Sent digitally）

USB communication Cable x 1
