Specification
Brand : VTSYIQI
BulletPoint1 : Detection range: (0~15000)mm
BulletPoint2 : Operating frequency: (0.2~20)MHz
BulletPoint3 : Sound speed range: (100~20000)m/s
BulletPoint4 : Repetition frequency: (20~2000)Hz
BulletPoint5 : Dynamic range: ≥36dB
Color : Black
IncludedComponents : VTSYIQI202410071532VTSYIQI

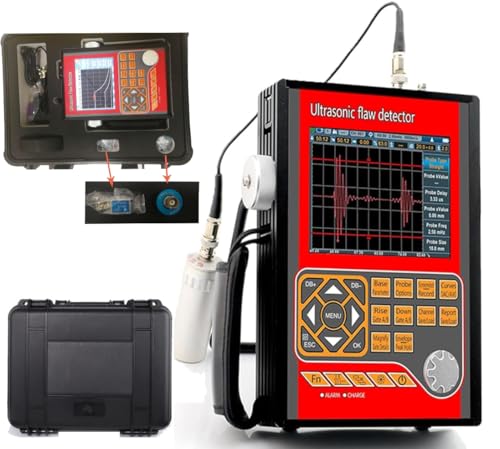

ItemName : VTSYIQI Ultrasonic Flaw Detector Meter Tester Ultrasound Wave Flaw Meter Tester with Range 1000-15000m/s Velocity 1000 to 20000m/s Frequency 20-2000Hz B scan AWS D1.1 15G Large Data Storage Function
ItemPackageDimensions_Height : 30 centimeters
ItemPackageDimensions_Length : 40 centimeters
ItemPackageDimensions_Width : 20 centimeters
ItemTypeKeyword : flaw-detection-tools
Manufacturer : VTSYIQI202410071532VTSYIQI
Material : 塑料
MeasurementAccuracy : VTSYIQI202410071532VTSYIQI
ModelName : VTSYIQI202410071532VTSYIQI
ModelNumber : VTSYIQI202410071532VTSYIQI
NumberOfItems : 1
PartNumber : VTSYIQI202410071532VTSYIQI
PowerSourceType : Ac
ProductDescription : Specification:
Detection range: (0~15000)mm
Operating frequency: (0.2~20)MHz
Sound speed range: (100~20000)m/s
Repetition frequency: (20~2000)Hz
Dynamic range: ≥36dB
Vertical linear error: ≤1.5%
Horizontal linear error: : ≤0.1%
Resolution: : >42dB(5P14)
Sensitivity margin: : >65dB(200mm deep with 2 flat bottom holes)
Digital suppression: : (0~80)%, does not affect linearity and gain
Electrical noise level: ≤10%
Probe type: straight probe, oblique probe, twin probe, penetrating probe
Gate: incoming wave gate, lost wave gate; Single gate reading, double gate reading, peak trigger, edge trigger
Alarm: Buzzer alarm, LED light alarm
Power source: DC (DC) 9V; The lithium battery works continuously for more than 12 hours
Size: 263×170×61(mm)
Weight: 1.92kg
Ambient temperature: (-10~50)℃
Relative humidity: (20~95)%RH

Standard accessories:
1: Fault detector main machine: 1
2: Straight probe: 1
3: Inclined probe: 1
4: Power adapter: 1
5: BNC probe connection wire: 1
6: U disk memory: 1
7: Shoulder strap: 1
8: Manual: 1
9: Certificate: 1
10: Warranty card: 1
11: Test report: 1
12: Instrument box: 1


ProductSiteLaunchDate : 2024-10-07T07:33:06.604Z
Style : VTSYIQI202410071532VTSYIQI
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 46171600
