Specification
Brand : Generic
BulletPoint1 : High-Frequency: One Apogee 1.75" (45mm) voice coil, 1" (25mm) exit horn-loaded compression driver treated with Ferrofluid
BulletPoint2 : Handles: Two handles – one top, one bottom – designed as an integral part of the enclosure (no moving parts)
BulletPoint3 : Driver Complement: Low-Frequency: One Apogee 12" (305mm) neodymium magnet cone-type driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise
BulletPoint4 : Rigging Hardware: Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
BulletPoint5 : Enclosure Type: 30° trapezoidal, optimally-vented bass
ConnectivityTechnology : Wired
ExternallyAssignedProductIdentifier1 : 0840425871607
ExternallyAssignedProductIdentifier2 : 840425871607
IncludedComponents : No

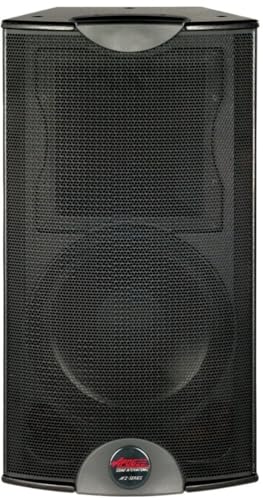

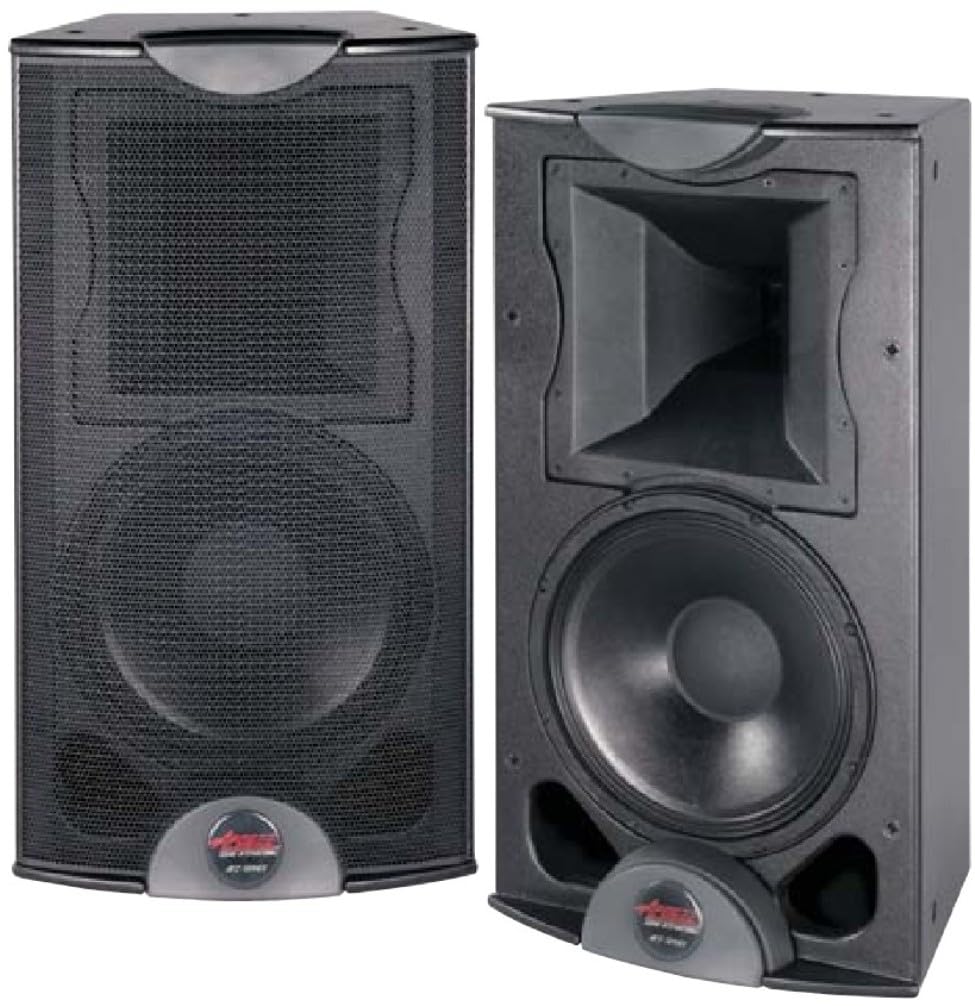

ItemName : Bogen 106-0416 Model AFI-4 Contractor Series Loudspeaker with Metric, Black, 300W Cont./1200W Peak Max. Power Handling, 99dB Sensitivity, 8 ohms Nominal Impedance, 58Hz to 20kHz Frequency Response
ItemPackageDimensions_Height : 18.7 inches
ItemPackageDimensions_Length : 48.03 inches
ItemPackageDimensions_Width : 17.3 inches
ItemPackageQuantity : 1
ItemTypeKeyword : floorstanding-home-speakers
Manufacturer : Bogen
ModelName : Contractor Series Loudspeaker
ModelNumber : AFI-4
MountingType : Floor Standing
NumberOfItems : 1
PartNumber : FOCALNABDL250212-67
ProductDescription : Bogen 106-0416 Model AFI-4 Contractor Series Loudspeaker with Metric, Black, 300W Cont./1200W Peak Max. Power Handling, 99dB Sensitivity, 8 ohms Nominal Impedance, 58Hz to 20kHz Frequency Response

The AFI-4 is a fully arrayable loudspeaker versatile enough for clubs, discos, churches, theaters, and theme parks. Much of this versatility comes from the available options that include a 60° x 45° or 90° x 45° horn as well as bi-amplification capabilities. These horns, as well as their logo plate, are rotatable to allow alternative hanging positions.

KEY FEATURES
- Driver Complement: Low-Frequency: One Apogee 12" (305mm) neodymium magnet cone-type driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid for greater power handling capability, lower distortion, and control of short-term impedance rise
- High-Frequency: One Apogee 1.75" (45mm) voice coil, 1" (25mm) exit horn-loaded compression driver treated with Ferrofluid
- Input Connectors: Barrier strip, screw type #8
- Compatible Processors: AFI Main Frame Controller Chassis (using either AFI-4/-4B/-4W/- 4WB Modules) or DLC24
- Handles: Two handles – one top, one bottom – designed as an integral part of the enclosure (no moving parts)
- Grille: Highly durable, quality finish on perforated steel
- Rigging Hardware: Fourteen rigging points, four each on top and bottom, two each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8"-16 or M10 thread
- Finish: Textured high-strength black epoxy paint; other colors optional
- Enclosure Type: 30° trapezoidal, optimally-vented bass
- Cabinet Construction: Multi-ply hardwood

SPECIFICATIONS
- Format: Passive/Two-way
- Dispersion: H: 60° x V: 45° (rotatable)
- Frequency Response (1m on axis): 58 Hz to 20 kHz ± 3 dB
- Max. SPL (@1m): 124 dB cont./130 dB peak
- PTML (peak transient mechanical limit): 138 dB
- Sensitivity (1W @ 1m): 99 dB SPL/100Hz to 4kHz
- Nominal Impedance: 8 ohms, each driver
- Max. Power Handling: 300W cont./1200W peak
- Dimensions: Front 15.3"W x 28.2"H, Rear 9.9"W x 28.2"H, Depth 12.1"
- Weight: 53 lb


ProductSiteLaunchDate : 2025-03-10T16:49:35.953Z
SpeakerAmplificationType : Passive
SpeakersMaximumOutputPower : 300 watts
SpeakerType : Two-way
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 52161500
WarrantyDescription : 2-Year Limited Manufacturer Warranty
