Specification
Brand : Aoleaby
BulletPoint : Hall Effect Sensors
BulletPoint1 : The appearance is light and handy,small and easy to install,bearings are used for rotating.
BulletPoint2 : Pressure-resistance, heat-resistance, cold-resistance.
BulletPoint3 : Integrated magnetic Hall effect sensor is sealed from the water pipe, and allows the sensor to stay safe and dry.The sealing ring adopts the structure of upper and lower force and never leaks.
BulletPoint4 : Application range is quite wide: water heater, drinking water machine, coffee maker,water flow control, waterworks,farmland and garden irrigation,etc.
Color : One Color
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 7681684424530
ItemName : Aoleaby TUF-100M Enhanced Upgrad Water Flow Meter S1(DN15~DN100) M1 L1-HT Ultrasonic Module Converter Sensor Digital Liquid Flowmeter(Host plus S1-HT)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-flow-sensors
Manufacturer : Aoleaby
Material : Copper
ModelName : ARYESOR
ModelNumber : Aoleaby
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : Aoleaby
ProductDescription : TUF-100M Enhanced Upgrad Water Flow Meter S1(DN15~DN100) M1 L1-HT Ultrasonic Module Converter Sensor Digital Liquid Flowmeter (TUF-2000M Enhanced Version)
The difference between TUF-100M and TUF-2000M:
TUF-100M is an upgraded version based on TUF-2000M. TUF-100M is more functional, more powerful, and more convenient to operate. TUF-100M can be used more widely, for example, it can measure more types of pipe materials, more liquid media, and the smallest pipe that can be measured is DN15.
Quick setup of measured parameters:
Accurate measured parameters can have a great influence on measuring precision and reliability. It is suggested to measure the practical perimeter and wall thickness of the pipeline. Ultrasonic thickness gauge can be used to measure the pipe thickness. Measured parameters setup is from Menu 10 to Menu 15,Please complete one by one.
Following parameters need to be inputted before measurement:
Outer diameter unit: mm
Pipe thickness unit: mm
Pipe material
Lining parameters: thickness and sound velocity (If have lining)
Liquid type
Sensor type (because the host can support many different sensors)
Sensor installation method

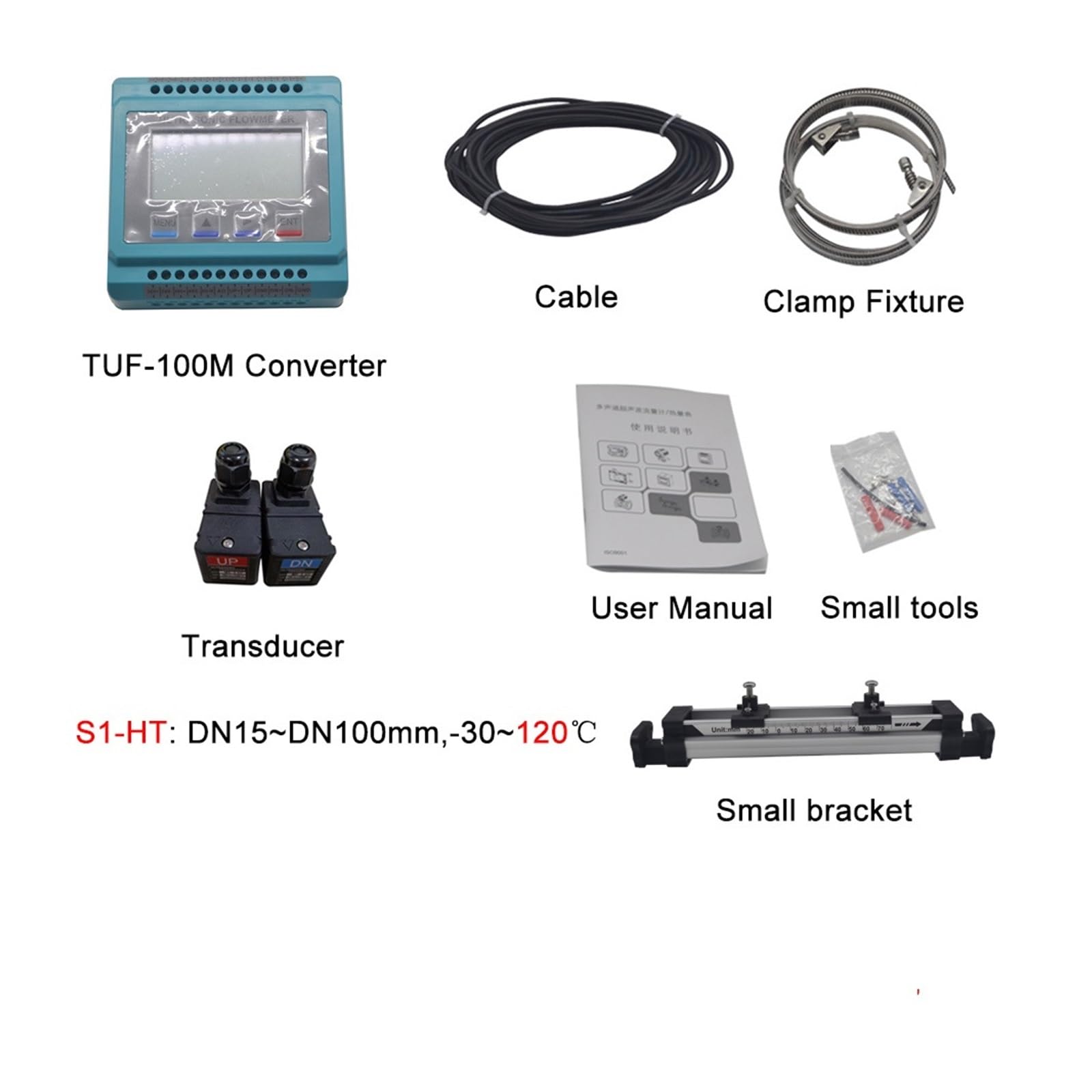

Standard Packing List:
TUF-100M host 1 piece
Transducer 1 pair (Please select the appropriate one according to your pipe diameter and medium temperature)
Clamp Fixture 1 set
Small tools 1 set
10m Transducer Cable 1 piece
User Manual 1 piece (If you need the English manual in PDF format, please tell me your email address. Thank you!)
Communication interface and protocol:
The ultrasonic flow/Heat meter itself has an isolated RS485 interface, and supports a variety of commonly used communication protocols. The MODBUS protocol supports MODBUS ASCII by default, and MODBUS-RTU requires selecting 'MODBUS-RTU Only' from the M52 menu. The following is a commonly used address table in the MODBUS protocol:
Notes:
You should apply the silicone gel to the
ProductSiteLaunchDate : 2024-07-19T09:25:12.008Z
Size : Host plus S1-HT
UnitCount : 1
