Specification
Brand : DSNMYO
BulletPoint : Valves
BulletPoint1 : Parametrics: FMS-100 absolute maximum ratings: (1) Meas. range: ±100μT, other ranges on request; (2) Accuracy at 20℃: ±2% ±0.3μT; (3) Operating temperature: -40 to +85℃; (4) Zero drift: ＜2nT/K; (5) Output voltage OUT+ ref. to OUT-: ±1V/50μT, max. ±5V; (6)Bandwidth: 0 to 1 kHz (-3dB); (7)DC output impedance: ＜1Ω; (8)Reference output OUT-: 2.5V ref. to supply ground (0 V); (9) Max. load between OUT+ and OUT-: ＞1kΩ, ＜100pF; (10)Noise ＜: 0.5nTRMS or 3nTPP (0.1 to 10 Hz), 150pT/√￣Hz @ 1 Hz; (11)Supply voltage: 5V ±5%; (12)Supply current: 2mA; (13) Dimensions: 44.5 mm×14 mm×5.5 mm; (14) Length of detection coils: 22 mm.
BulletPoint2 : Features: (1)Output voltage proportional to the magnetic field; (2)Low noise and high stability of output signal; (3)Low cost; (4)Complete miniature magnetometer; (5)Single 5 V power supply; (6)Only 2mA current consumption; (7)Simple integration into μP systems; (8)Temperature range -40 to +85℃, extended temp. range on request.
Color : One Color
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 7320437433091
IncludedComponents : 1
ItemName : DSNMYO USC-HS21TIT Hall Effect Flow Sensor Water G1/2" 1-30L/min BSPT Threaded End Quick Connection Error Turbine flowmeter Temperature(Type A)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-flow-sensors
Manufacturer : DSNMYO
Material : Copper
ModelName : DSNMYO
ModelNumber : DSNMYO
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DSNMYO
ProductDescription : Valves

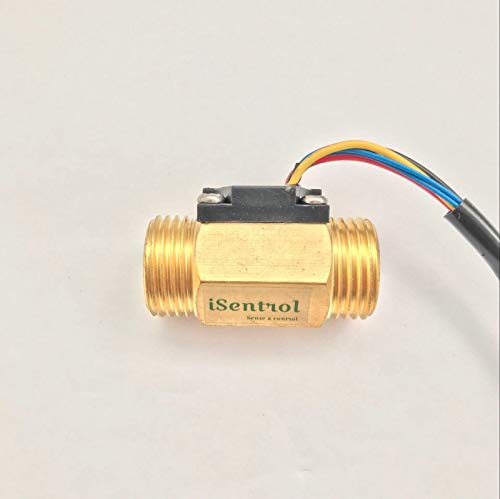

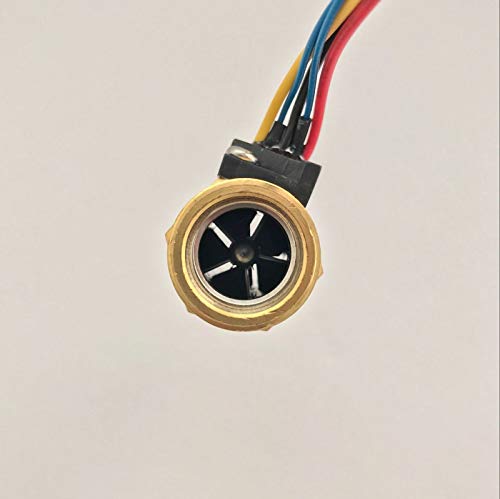

USC-HS21TIT Ultisolar Hall Effect Flow Sensor Water 1-30L/min BSPT G1/2" Threaded End Quick Connection 3% error Turbine flowmeter
Total length:44mm
The temperature sensor isn't located in the water flow but sealed into the plastic on top of the sensor. The measurements are not nearly as accurate enough.Sudden changes in temperature can not be measured with it.
Hall Effect Flow Sensor
Model:USC-HS21TI
Function:For the sense of the water flow rate on the following equipments:Thermostatic water heater, water purifier, water dispenser, smart card equipment, coffee machine etc.
Calculation Formula:F(Hz)=11*flow rate(Q)(l/min)
Note:
1. When magnetic material is close with the sensor, its characteristics may vary.
2. In order to avoid particle debris, the sensor must be installed after a filter.
3. The flow sensor installation has to avoid strong vibration and shaking of the environment, so as not to affect the sensor's measurement accuracy.
Features:
1.Brass
2.Intubation design of inlet and outlet pipe, easy connection and operation;
3.Imported Hall IC from , stable and reliable;
4.Range: 1-30L/min;
5.working voltage: DC4.5-18V;
6.rated voltage: DC5V;
7.Output voltage(rated: DC 5V); High level 4.5V and above; low level 0.5V and below
8.Pulse output duty cycle: 50+-10%
9.Insulation resistance: 100M Ohm and above;
10.Tightness: Seal up all the holes, and inflate with 1.7MPa water, after 1 minute, no leakage and deformation;
11.-20-80 centigrade;
ProductSiteLaunchDate : 2024-08-03T05:51:20.414Z
Size : Type A
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
