Specification
Brand : DSNMYO
BulletPoint : Valves
BulletPoint1 : Parametrics: FMS-100 absolute maximum ratings: (1) Meas. range: ±100μT, other ranges on request; (2) Accuracy at 20℃: ±2% ±0.3μT; (3) Operating temperature: -40 to +85℃; (4) Zero drift: ＜2nT/K; (5) Output voltage OUT+ ref. to OUT-: ±1V/50μT, max. ±5V; (6)Bandwidth: 0 to 1 kHz (-3dB); (7)DC output impedance: ＜1Ω; (8)Reference output OUT-: 2.5V ref. to supply ground (0 V); (9) Max. load between OUT+ and OUT-: ＞1kΩ, ＜100pF; (10)Noise ＜: 0.5nTRMS or 3nTPP (0.1 to 10 Hz), 150pT/√￣Hz @ 1 Hz; (11)Supply voltage: 5V ±5%; (12)Supply current: 2mA; (13) Dimensions: 44.5 mm×14 mm×5.5 mm; (14) Length of detection coils: 22 mm.
BulletPoint2 : Features: (1)Output voltage proportional to the magnetic field; (2)Low noise and high stability of output signal; (3)Low cost; (4)Complete miniature magnetometer; (5)Single 5 V power supply; (6)Only 2mA current consumption; (7)Simple integration into μP systems; (8)Temperature range -40 to +85℃, extended temp. range on request.
Color : One Color
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 7320437430250
IncludedComponents : 1

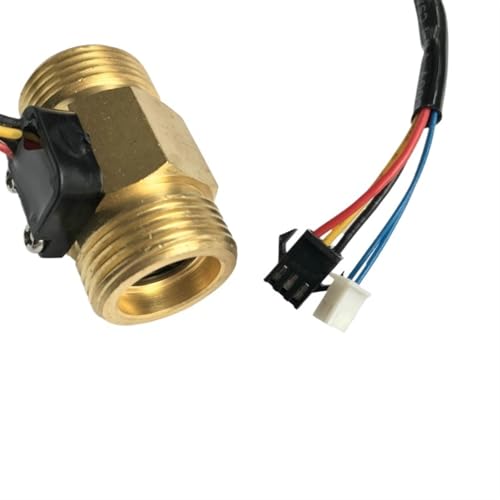

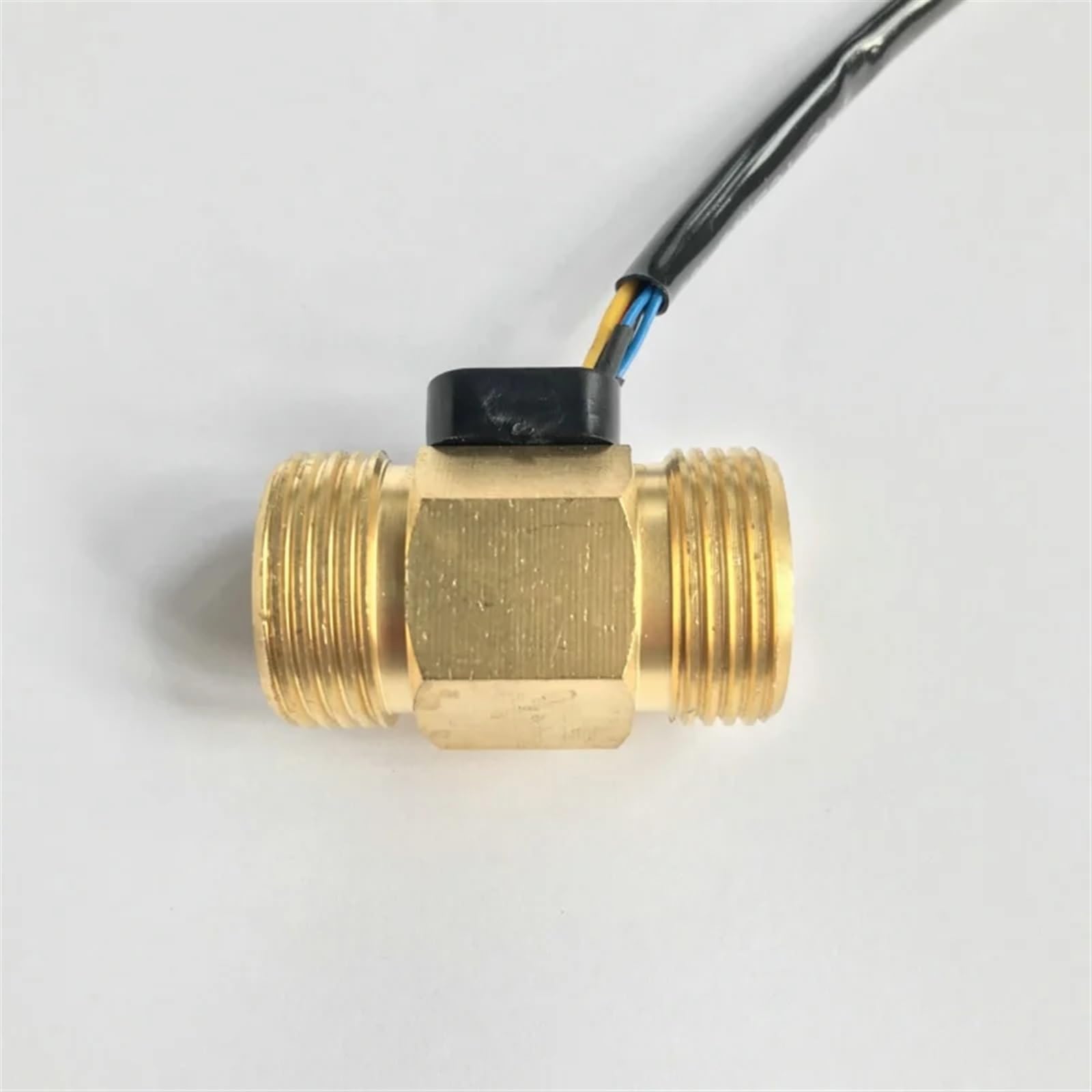

ItemName : USC-HS43TIT Hall Effect Water Flow Sensor Temperature Sensor 2-45L/min G3/4" Thread Repeat Error 1% Brass Turbine Flowmeter
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-flow-sensors
Manufacturer : DSNMYO
Material : Copper
ModelName : DSNMYO
ModelNumber : DSNMYO
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DSNMYO
ProductDescription : Valves
Usage: Water heater, washing machine, boiler, electromagnetic water heater, water dispenser, water purifier, R.O. machine, U.F. machine, coffee machine, water machine, water machine control, water control machine, beer machine, beauty equipment, shower equipment, electrolytic water machine, energy engineering, heat pump,IC meter, steam equipment, irrigation equipment, water system, campus card self-service (sell) water machine, washing machine, automatic washing equipment, water treatment equipment, water dispensing equipment, cooling system, circulation system, intelligent toilet (toilet), bidet, mechanical equipment, heating equipment, Pharmaceutical (agents) equipment etc.
Calculation Formula: F(Hz)=8.1*Q-3(L/min)
Note:
1. When magnetic material is close with the sensor, its characteristics may vary.
2. In order to avoid particle debris, the sensor must be installed after a filter.
3. The flow sensor installation has to avoid strong vibration and shaking of the environment, so as not to affect the sensor's measurement accuracy.
Features:
1. brass material
2. Intubation design of inlet and outlet pipe, easy connection and operation;
3. Imported Hall IC from , stable and reliable;
4. Range: 2-45L/min;
5. working voltage: DC4.5-18V;
6. rated voltage: DC5V;
7. Output voltage(rated: DC 5V); High level 4.5V and above; low level 0.5V and below
8. Pulse output duty cycle: 50+-10%
9. Insulation resistance: 100M Ohm and above;
10. Tightness: Seal up all the holes, and inflate with 1.75MPa water, after 1 minute, no leakage and deformation;
11. -20-80 centigrade;
12: Temperature sensor: NTC50K
Please contact the seller for datasheet of NTC50K
ProductSiteLaunchDate : 2024-08-03T05:50:26.072Z
Size : One Size
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
