Specification
Brand : CDBAIRUI
BulletPoint1 : [Introduction]?E01-2G4M20S1B is a 2.4GHz SMD small-sized wireless module with PCB antenna developed by Ebyte. Built-in power amplifier (PA) and low-noise amplifier (LNA) on the original basis, so that the maximum transmit power reaches 100mW while receiving sensitivity is further improved.
BulletPoint2 : The maximum transmit power is 20dBm, which meets the battery power supply and greatly expands the communication distance;Communication distance can reach 1000m under ideal conditions;Global license-free ISM 2.4GHz band;Air data rate : 2Mbps, 1Mbps and 250kbps;
BulletPoint3 : This product uses industrial grade high precision 1 6MHz crystal.Because E01-2G4M20S1B is a pure RF transceiver module, it needs to use MCU driver or use a dedicated SPI debugging tool.
BulletPoint4 : Application:Wearable devices;Smart home and industrialsensors;Security system, positioning system;Wireless remote control, drone;Wireless game remote control;Health care products;Wireless voice, wireless headphones;Automotive industry applications.
BulletPoint5 : After-sales Service:Your satisfaction is our pursuit, if you need the product manual or have any questions?please download it from our official website or feel free to contact us.
ConnectivityTechnology : Wireless
ControlMethod : application

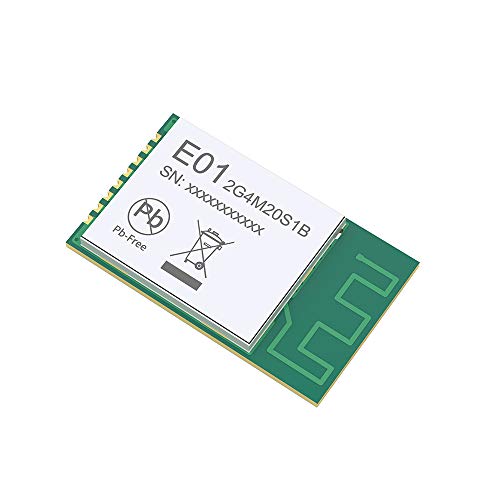

ItemName : 2.4GHz Wireless IoT Transceiver Module nRF24L01 20dBm 1000m SMD PCB AntennaE01-2G4M20S1B PA LNA Transmitter and Receiver for Smart Home and Industrialsensors
ItemPackageQuantity : 1
ItemTypeKeyword : mp3-player-radio-transmitters
Manufacturer : CDBAIRUI
PartNumber : 1-100-01-01-0013

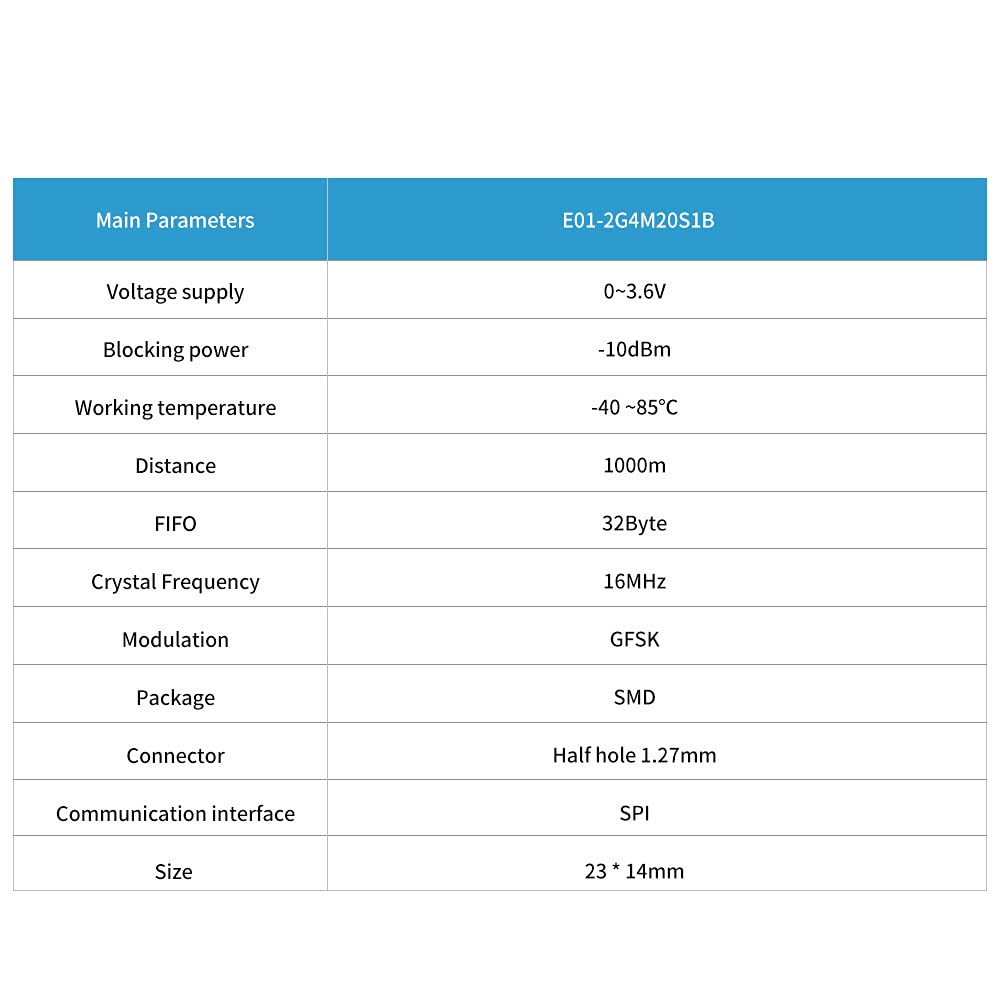

ProductDescription : [Frequency]?2.4~2.525GHz
[Power]?19~20dBm
[Distance]?1000m
[Size]?14*23mm
[Weight]?1.2±0.1g
[Introduction]?E01-2G4M20S1B is a 2.4GHz SMD small-sized wireless module with PCB antenna developed by Ebyte. Built-in power amplifier (PA) and low-noise amplifier (LNA) on the original basis, so that the maximum transmit power reaches 100mW while receiving sensitivity is further improved.
[Features]:
1.The maximum transmit power is 20dBm, which meets the battery power supply and greatly expands the
communication distance;
2.Communication distance can reach 1000m under ideal conditions;
3.Global license-free ISM 2.4GHz band;
4.Air data rate : 2Mbps, 1Mbps and 250kbps;
5.125 communication channels to meet the needs of multi-point communication, packet, frequency hopping and other applications;
6.Connect to MCU through SPI interface, the speed is0 ~ 10Mbps;
7.Professional RF shielding cover, anti interference, anti- static;
8.Industrial grade standard design for long-term use from-40 ~ + 85 C;
9.Built-in PCB antenna, no need for external antenna.
ProductSiteLaunchDate : 2021-08-12T09:04:58.365Z
SupplierDeclaredDgHzRegulation : not_applicable
