Specification
Brand : My Cable Mart
BulletPoint : Price For: Each Hz: 0 to 4 GHz Cable Type: RG-6 PVC/PTFE, RG-58 PVC, RG-59 PVC/PTFE Impedance: 75 Ohms Installation Method: Crimp-On Connector Code: - Connection: BNC Male Item: Coaxial Connector Color: Silver Country of Origin (subject to change): China
BulletPoint1 : Meets SMPTE ST-2081 6G-SDI Standards
BulletPoint2 : Supports to 6 Gbps or better
BulletPoint3 : Supports to 4K@30Hz
BulletPoint4 : Professional quality BNC connector with fully-wrapped shielding
BulletPoint5 : ASSEMBLED IN USA – These RG6 Coaxial Cables are custom made when ordered and assembled by professionals at PHAT SATELLITE INTL. Please see more custom made cables by PHAT SATELLITE INTL.
Color : Black,Black
CompatibleDevices : Televisions, Media Boxes, Cable Boxes, Satellite Boxes, Video Cameras
CompatibleDevices1 : Television
CompatibleDevices2 : Modem
CompatibleDevices3 : Antennas
CompatibleDevices4 : Comcast
CompatibleDevices5 : CATV
CompatibleDevices6 : CCTV
CompatiblePhoneModels : Attribute not applicable for product
ConnectorGender : Male-to-Male
ConnectorGender1 : Male
ConnectorGender2 : Female
ConnectorType : Coaxial
ConnectorType1 : Blunt Cut
ConnectorType2 : Blunt Cut
CustomerPackageType : Standard Packaging
DataTransferRate : 6 gigabits_per_second
ExternallyAssignedProductIdentifier : 7436829391808
ExternallyAssignedProductIdentifier1 : 616050577180
ExternallyAssignedProductIdentifier2 : 0616050577180
Frequency : 3000 MHz
IndoorOutdoorUsage1 : outdoor
IndoorOutdoorUsage2 : indoor

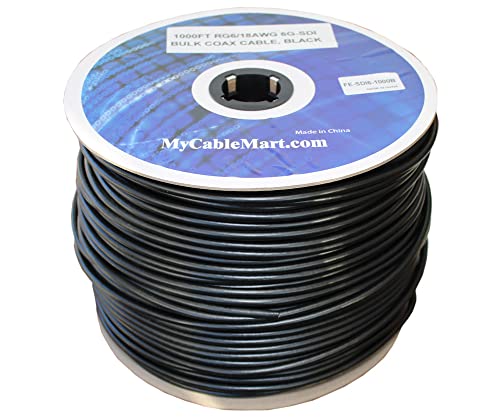

ItemName : MyCableMart 1000ft RG6/18AWG 6G-SDI (4K) Bulk Coax HD Video Cable, 6Ghz, Black
ItemPackageDimensions_Height : 13.6 centimeters
ItemPackageDimensions_Length : 9 centimeters
ItemPackageDimensions_Width : 13.1 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : coaxial-video-cables
Manufacturer : My Cable Mart
Material : Copper, AT&T DIRECTV Fitting - White
ModelNumber : 616050577180
NumberOfItems : 1
NumberOfPins : 2
PartNumber : FE-SDI6-1000B
ProductDescription : This specialized 6G-SDI (Serial Digital Interface) standards to support 6 Gbps and maximum resolutions to 4Kx2K (2160P30 YUV 4:2:2) at 30Hz. Higher resolutions MAY be possible with suitable hardware compression using your equipment. The 6G-SDI standard is 100% backward compatible with the SD-SDI ED-SDI HD-SDI and 3G-SDI specifications (SMPTE 259M 344M 292M 373M 424M and the 6G-SDI standard of SMPTE ST-2081) but supports the faster 6Gbps speed needed for tomorrows 4Kx2K video/audio applications. Using 6G-SDI cabling instead of HD-SDI or 3G-SDI provides the future-proofing you need!

Specifications:

• 6G-SDI RG6 Coaxial Cable

• Meets SCTE IPS-SP-001 UL1655 UL13 UL444

• RoHS 3 Compliant

• 18AWG bare solid copper core (1.0mm)

• Nominal Thickness: 0.07 inches

• Diameter from Shielding: 5.4mm

• Outer Insulation Diameter: 7.0mm

• Diameter from Dielectric: 4.8mm

• Braided and Foil shielded

• Temperature Rating: -20 to 60 C

• Impendence: +-3.0 Ohms 75

• Conductor DCR@20C: 28.6

• Capacitance: 15.5 pF/ft

• Performance: 1Mhz to 3000Mhz: 0.89 to 37.88 db/100m) - see PDF document for complete table

Installation Tip: Strip off 1/2inch of the insulation shielding AND dielectric (white insulation material) leaving just the solid copper core exposed. Using our FE-ADT-366 connector end attach the brass center connection pin to the copper core wire and insert it through the female opening through the small hole. Some force will be required to do this until the brass pin is flush to the opening of the BNC connector. Now proceed to use the compression tool to tighten the connector to the outer insulation.
ProductSiteLaunchDate : 2021-11-18T16:40:16.949Z
RecommendedUsesForProduct : Professional A/V connections, broadcasting, home theaters
Size : 50ft
SpecificationMet : RoHS
SpecificationMet1 : UL
SpecificationMet2 : ISO
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 43202222
