Specification
Brand : BIXIBIN
BulletPoint1 :
BulletPoint2 :
BulletPoint3 :
BulletPoint4 :
BulletPoint5 :
Color : One Color
ExternallyAssignedProductIdentifier : 7505578856996
ExternallyAssignedProductIdentifier1 : 0759224709120
ExternallyAssignedProductIdentifier2 : 759224709120
IncludedComponents : 1pc digital electronice meter counter 1pc 300ppr rotary encoder 1pc wheel

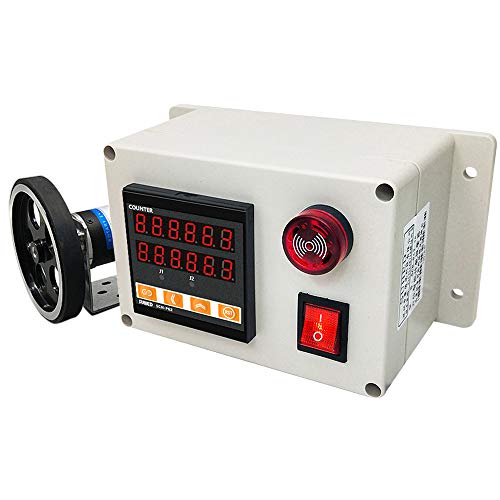

ItemName : 300ppr Rotary Encoder Digital Electronic Meter Counter Wheel Roll Length Measuring Meter Testing Equipment 0-999999
ItemPackageDimensions_Height : 23 centimeters
ItemPackageDimensions_Length : 40 centimeters
ItemPackageDimensions_Width : 31 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : frequency-counters
Manufacturer : BIXIBIN
Material : Plastic
MeasurementAccuracy : 300ppr
ModelName : MAD-201C
ModelNumber : 300ppr
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 300ppr
PowerSourceType : AC
ProductDescription :

Description

300ppr Rotary Encoder Digital Electronic Meter Counter Wheel Roll Length Measuring Meter Testing Equipment

Specification

Operating Voltage: AC100-250V DC24V 50-60HZ

Working Environment: -20~50℃/-68-122°F  RH≥70%

Contact Rating: AC250V (Positive Load 3A) (Inductive Load 1A)

Anti-interference Ability: Power: ± 3000V Input ± 2500V

Insulation Resistance: min 100MΩ

Count Pulse: Input Resistance, Min. 100kΩ

Threshold Voltage, H≥5V, L≤1V

Limit Voltage, 50V, Trigger Edge

Power Consumption of the Whole Machine:≤4W

Output Power:DC12V    30MA

Counting Range:0-999999(Six Digits)

Features

Dual-row 6-digit LED digital tube display, PV window 60*16MM

SV window 45*10MM dual relay normally open normally closed contact output

Signal input supports switch signal, NPN sensor signal

Power failure memory function, automatic reset, manual reset, rear terminal reset

Set the decimal point and counting ratio

This machine has a DC12V 30MA power output for supplying sensor work

Product Performance And Characteristics

A. Each revolution of the wheel, the encoder output of 300 pulses.

B. You can set the value of early warning.

C. This controller has a relay output.     The controller can control the device to stop, start.

D. The working voltage 110-220V（US PLUG）

Precautions

1. The signal input wire should not be too long, it is better to connect with shielded wire.

2. The instrument should avoid working in an environment with corrosive and flammable substances, dust, large vibrations, and strong interference sources.

Package content

1pc digital electronice meter counter

1pc 300ppr rotary encoder

1pc wheel

1pc mounting bracket

Note

1.  The proportional value cannot be set to zero, SV will display and Err0 error.

The solution is to enter the two-key menu to set the correct count ratio

2.   When setting the count value, SP-1 is the warning value and SP-2 is the target value,

The solution: SP key set SP-2 greater than SP-1, Erro information disappears.

ProductSiteLaunchDate : 2024-06-24T06:36:40.065Z
Size : 220V
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
