Specification
Brand : YOUTHINK
BulletPoint1 : [Temperature-compensated Oscillator] : Features a 2.5 ppm vc-tcxo for stable frequency measurements in any environment.
BulletPoint2 : [Highly Accurate Frequency Measurement] : Utilizes microchip's pic16f648a and 2.4 ghz frequency meter for precise readings.
BulletPoint3 : [Easy to Operate] : Simple two-button control with automatic settings saving, making it for both beginners and advanced users.
BulletPoint4 : [Real-time Display] : Unique gate control and precise time algorithm ensure quick refresh times of 0.01, 0.1, and 1.0 seconds.
BulletPoint5 : [Multiple Channel Measurements] : Equipped with a single-ended input design for three-channel frequency measurement - low, high, and auto channel.
BulletPoint6 : Welcome and I wish you a happy life, my friend.
Color : Backlit font blue
ExternallyAssignedProductIdentifier : 7802969869109
IncludedComponents : No

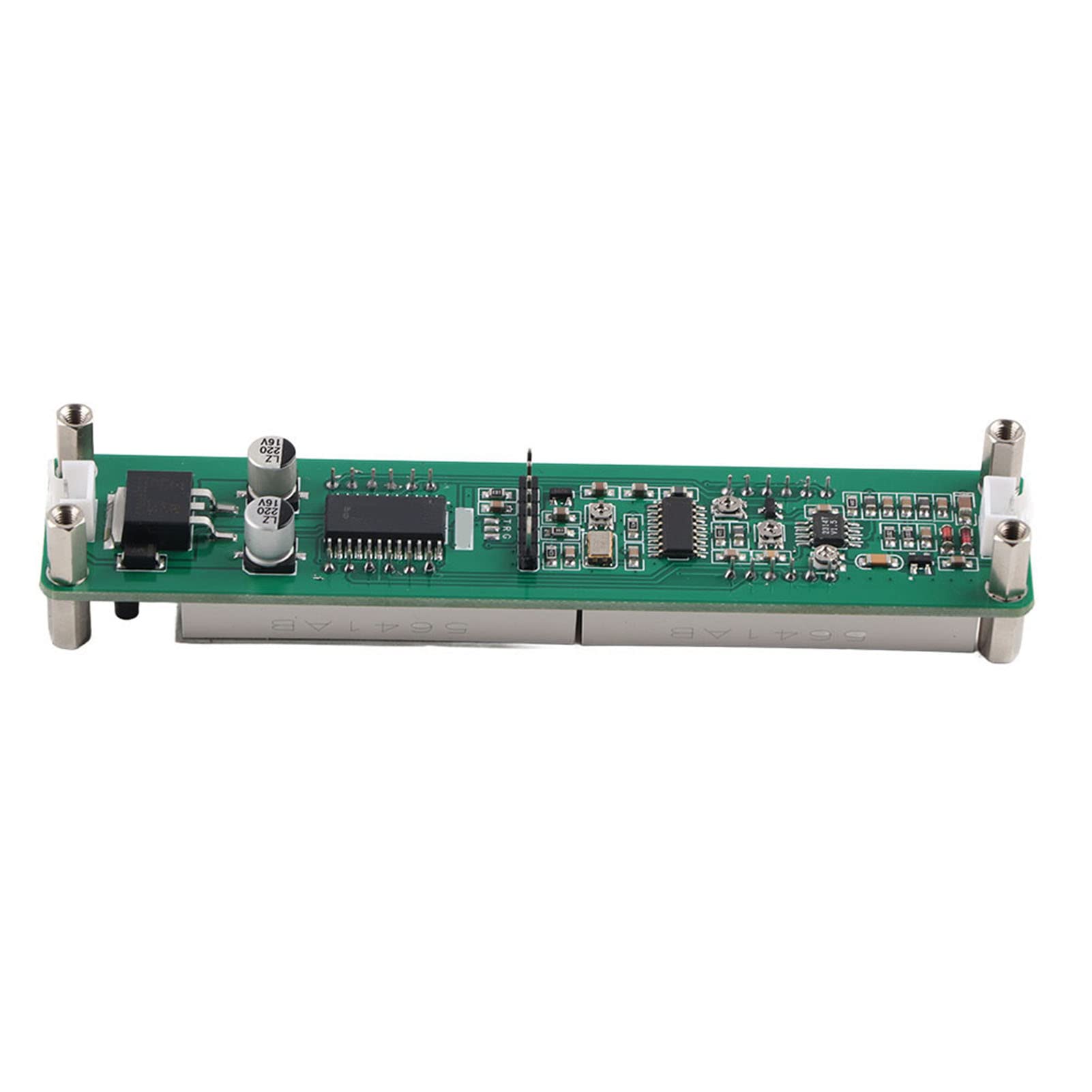

ItemName : Frequency Counter, 2.4 GHz digital tube display with three channel measurement for transceivers, PIC16F648A and VC (Backlit font blue)
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 3 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : frequency-counters
Manufacturer : YOUTHINK
MeasurementAccuracy : 0.1mm
ModelName : Youthinkgzybeq0no4-02
ModelNumber : YOUTHINKgzybeq0no4-02
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : YOUTHINKgzybeq0no4-02
ProductDescription : Model:PLJ-8LED-H
Type: Backlight font red, Backlight font blue(Optional)
1. Gate time:
0.01 S
0.10 S
1.0 S
2. Measurement channels (channels are low impedance):
low channel
Measuring range: 0.1 MHz ~ 60 MHz
Accuracy: ± 100Hz (0.01 1s gate time)
± 10Hz (0.1 seconds gate)
± 1Hz (1.0 seconds when the gate)
Low channel sensitivity:
0.1 MHz ~ 10 MHz: better than 60mVPP
10 MHz ~ 60 MHz: better than 60mVPP
60 MHz ~ 75 MHz: Not tested
high channel (divided by 64)
Measuring range: 20 MHz ~ 2.4 GHz
Accuracy: ± 6400Hz (0.01 seconds gate)
± 640Hz (0.1 1s gate time)
± 64Hz (1.0 1s gate time)
High channel sensitivity:
20 MHz ~ 30 MHz: better than 100mVPP
30 MHz ~ 60 MHz: better than 50mVPP
60 MHz ~ 2.4GHz: not tested
Auto Channel
Automatically selected according to the input frequency high or low channel channel, identifying the frequency of 60 MHz. Such as when the input amplitude is greater than 60 MHz shortage can not automatically select high channel, the channel should manually select measurement.
3,IF settings
Independent double-IF design, adjust the minimum frequency step of 100 Hz,frequency range 0 ~ 99.9999 MHz, can be set to increase or decrease the IF frequency mode.
4. Frequency reference
Using 5032 package 13.000MHz Warming voltage controlled crystal oscillator (VC-TCXO), frequency stability of ± 2.5 ppm.
5. Operating voltage
DC Input: DC 9V ~ 15V (with reverse polarity )
6. Current
Maximum 160 mA (test conditions: 1) DC12V power supply; 2) red LED; 3) eight brightness)

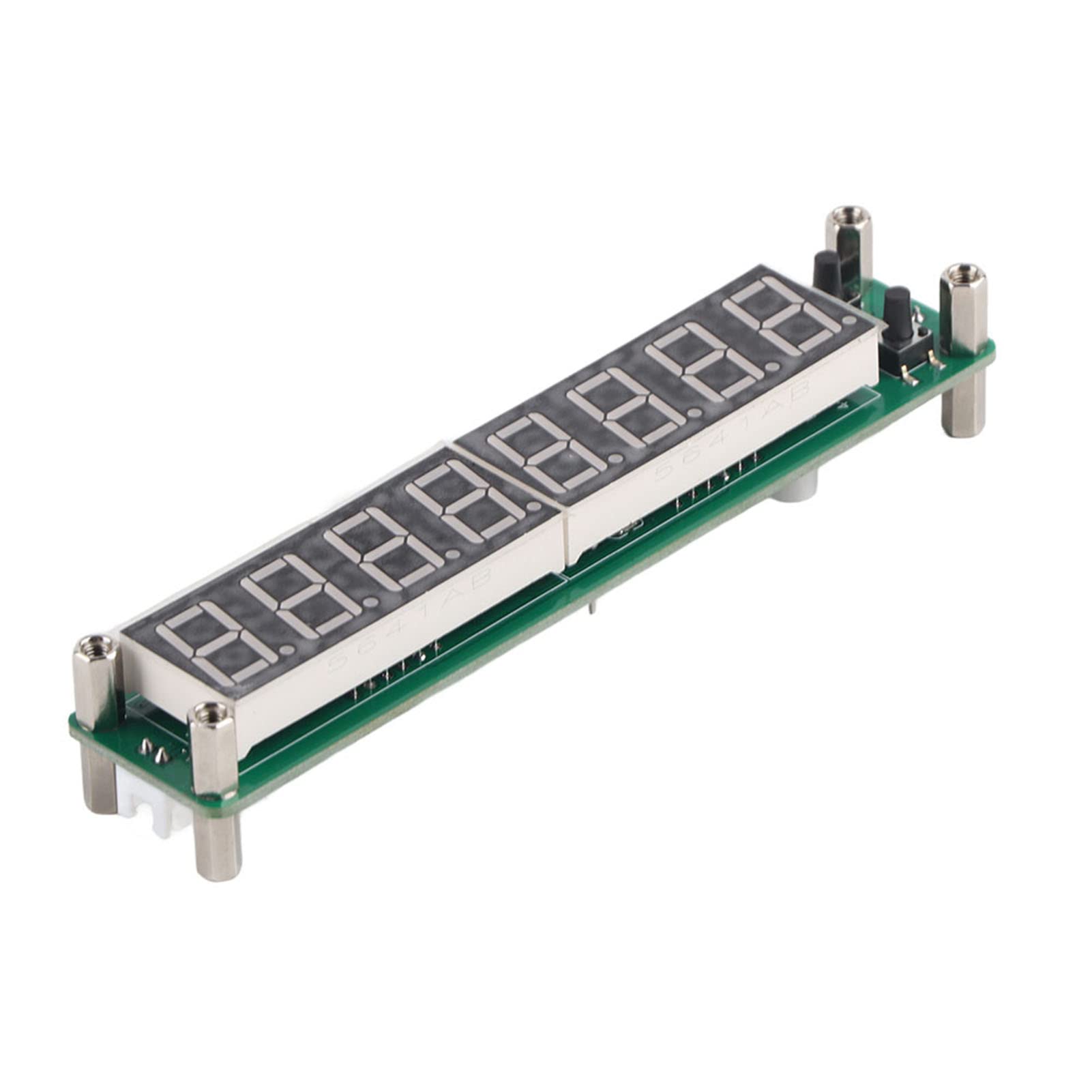

7. Eight LED display, the highest display eight digits.
8. Eight LED brightness is adjustable, factory set to maximum brightness.
9. Physical ,Length x width x height: 125.5 mm x 25.5 mm x 21.5 mm
10. Component quality 46 g (NW)
