Specification
Brand : BIXIBIN
BulletPoint : High Accuracy Frequency Counter RF Meter 1~500 MHz Tester Module for Ham Radio 0802 LCD Display with Backlight 9V
BulletPoint1 : Accurate Photoelectric Sensing: Featuring advanced laser-cut gears and alignment fiber optic leak detection, ensuring precise counting of SMD components with minimal error.
BulletPoint2 : Durable and Reliable Build: Constructed with high-quality aluminum and steel, powder-coated for anti-corrosion and rust-proofing, providing long-lasting stability and performance.
BulletPoint3 : Adjustable Motor: Equipped with a 25W motor and three speed settings (high, medium, low) for efficient and flexible counting.
BulletPoint4 : Intelligent control: Includes a 3-digit LCD display, multi-language intelligent control panel, manual and automatic modes, and options for forward/reverse rotation and leak detection.
BulletPoint5 : Versatile Applications: Compatible with various SMD materials including resistors, capacitors, diodes, ICs, and LED beads, for electronics manufacturers, SMT processing, and inventory management.
ExternallyAssignedProductIdentifier1 : 0763508719057
ExternallyAssignedProductIdentifier2 : 763508719057
IncludedComponents : 1 * SMT/SMD Components Counter 1* Power Cord 1* Mirror

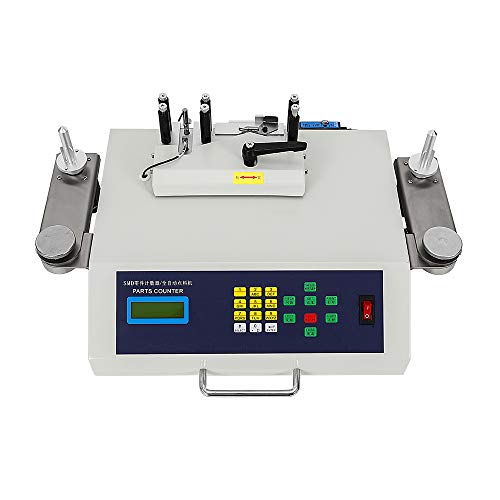

ItemName : SMT/SMD Components Counter, Photoelectric Sensing with LCD Display, 25W Motor, Accurate Counting for Resistors, Capacitors, LEDs, ICS, and Chips
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : frequency-counters
Manufacturer : BIXIBIN
MeasurementAccuracy : 1
ModelName : Respicefinemm7r1g9xpbu
ModelNumber : HG-WMTZXL-1745-US-LBX
NumberOfItems : 1
PartNumber : HG-WMTZXL-1745-US
ProductDescription :

Details

Rounded Edges: Compared to stiff right angles, the rounded burr-free edges make it more comfortable to touch while better caring for your skin.

Auxiliary Rod: The rod in front of the control panel helps you to make the machine stable without shaking and assists you to apply better force.

Mirror: It helps the fiber optic detector to receive the signal better, and also facilitates you to observe the status of the point material.

Operation Methods

1. Connect the power cord to the host and connect the AC110V power supply.

2. Turn on the POWER switch of the machine panel, and the LCD panel will shine.

3. Press PITCH to set the spacing of parts to be counted and press "ENTER".  Place the parts to count on the left side tray.

4. Manually pull out the material belt and clamp it between the material plate and counting gear, and align the intermediate hole of the first part and blank space to the middle line of the material plate.

5. Press the "STOP/RESET" button for 2 seconds to return the number to zero.  Note: when pulling the material belt, the counting gear will rotate and count.

6. Press the "SETTING" button to switch to manual and automatic mode.  If you choose automatic mode, you must input the quantity you want to count.  Otherwise, press "FORWARD" and the motor will not rotate.

7. Pull the material belt by hand and wind it to the empty material plate.  Press "FORWARD /RIGHT" to count.

8. The motor will stop when the quantity arrives.  Due to the inertia principle, the number of counts may be more or less than the set value of about 1, which can be manually rotated to the LCD display set value in the direction of the material disk, that is, the number of parts.

9. After counting, press the "REVERSE /LEFT" tape and then roll it back to the original LEFT panel, and then stop rotating.

Installation

Mirror Installation

1. Use the hexagonal plate hand to screw out the two hexagonal screws behind the pointing machine.

2. Align the mirror with the hole of the dispenser and then screw on the screws.

Pallet Installation

1. Use the screwdriver to screw up the 2 screws on the rotating shaft.

2. Align the tray with the hole of the shaft and lock the screws.

Specification

Color: White

Shape: Rectangle

Style:  Modern

Display: 3-digit LCD

Power Cord Length: 1.5m/ 4.9 ft

Assembly Required: Yes

Number of Items: 1

Power Supply: AC110V,60HZ

Power: 25W

Counting Range: -99999~99999PCS

Material: Aluminum, Steel

Process: Laser Cutting ( Gear Sheet ), Powder Coating ( Surface ), Computer Gong Production Process ( Machined Parts )

Pitch:  2mm/ 0.04in, 4mm/0.07in, 8mm/ 0.16in,10mm/ 0.31in, 12mm/ 0.47in, 16mm/ 0.63in, 24mm/ 0.94in, 32mm/ 1.26in, 44mm/ 1.73in, 56 mm/ 2.2in

Width: 4mm/0.07in, 6mm/ 0.24in, 8mm/ 0.16in, 12mm/ 0.47in, 16mm/ 0.63in, 24mm/ 0.94in, 32mm/ 1.26in, 44mm/ 1.73in, 56mm/ 2.2in

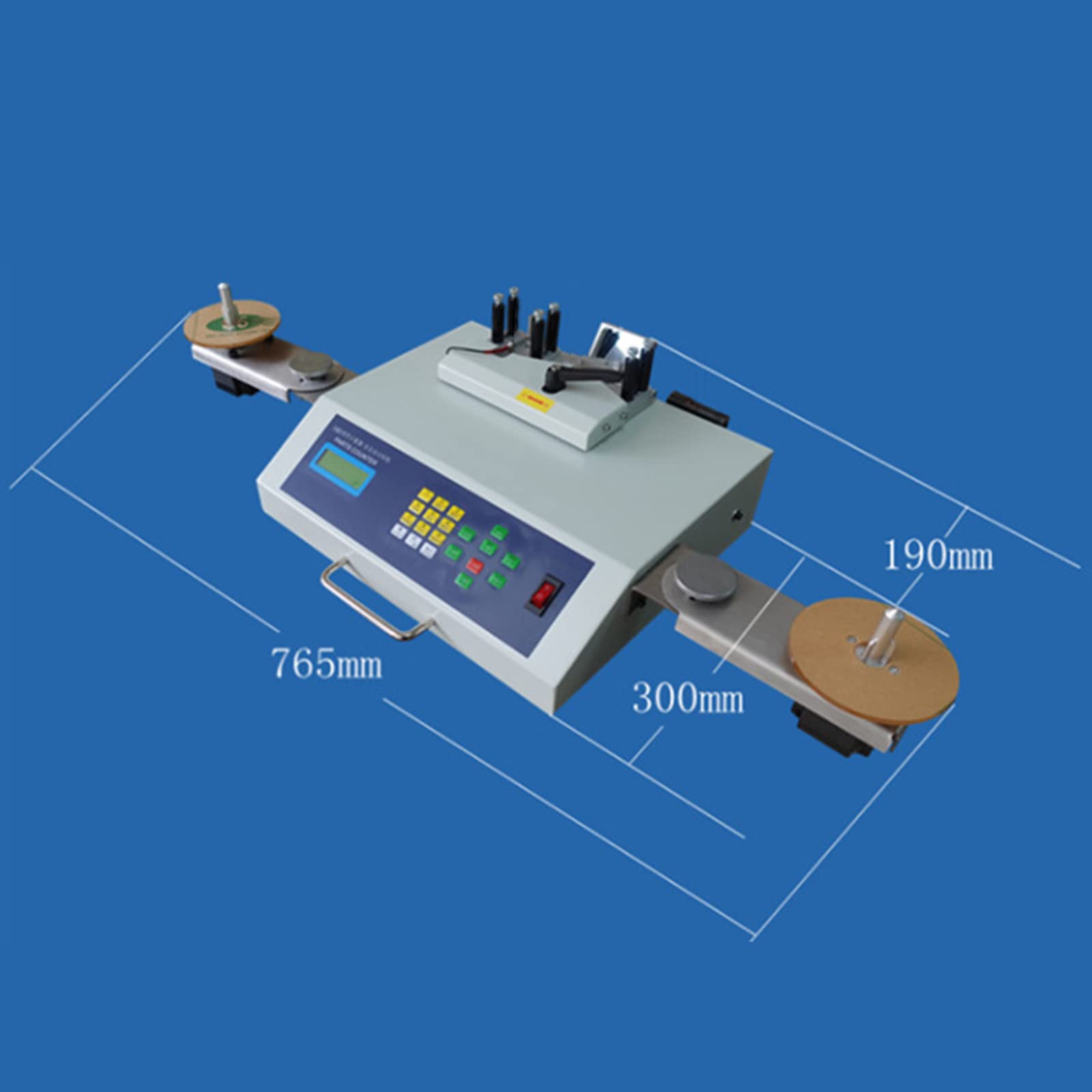

Product Size: 76.5*30*19cm/ 30.12*11.8*7.48 in

Net Weight: 9.5kg/20.9 lbs

Gross Weight:10 kg/ 22.05 lbs

Package Included

1 * SMT/SMD Components Counter

1* Power Cord

1* Mirror

1* Chinese and English Manual

All Accessories for Assembly

Notes

1.After unpacking, please check if all the attachments are complete.

2.Please read the operation manual carefully before using and keep it properly.

3.Check whether the voltage specification is consistent with that of municipal power. Please make sure to connect the ground wire to ensure the safety of the person and parts.

4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

ProductSiteLaunchDate : 2024-12-19T09:03:52.287Z
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 46171600
