Specification
Brand : Agatige
BulletPoint1 : FEATURES: Convert the 0-200 Hz frequency pulse into an analog voltage of 0-10V/0-5V. The on-board multiturn potentiometer is used for calibration correspondence between frequency and voltage.
BulletPoint2 : USED FOR: F V conversion module can be used for interface conversion between PLC and inverter or the motion control card and the inverter and other interfaces match the control occasion.
BulletPoint3 : OPTICAL ISOLATE: The analog voltage module optical isolate is used to ensure the anti-interference ability of the input.
BulletPoint4 : DIRECTLY INPUT: The conversion module input pulse level of 5V 12V 24V can be directly input, without string resistance. However, the input signal frequency should be maintained for more than 0.5 seconds.The output current is 5mA.
BulletPoint5 : SATISFACTION GUARANTEE: All our product offer return policy or money back guarantee, if you have any problem about your purchase, pls communicate with us by Email, we are always here to make everything right for you.
Color : #131
IncludedComponents : No
ItemName : Frequency to Voltage Converter, F V Conversion Module Converter Module Transformation Module Conversion Module 0~200Hz to Analog Voltage Module 5mA for Interface Conversion (FVS-200Hz10V)
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 8 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : frequency-transducers
Manufacturer : Agatige
ModelNumber : Agatigeco8z9utn3h-02
NumberOfBoxes : 1
NumberOfItems : 1
OutputVoltage1 : 12 volts
OutputVoltage2 : 5 volts
PartNumber : Agatigeco8z9utn3h-02
ProductDescription : Features:
Convert the 0-200 Hz frequency pulse signal into an analog voltage signal of 0-10V/0-5V.
Can be used for interface conversion between PLC and inverter or the motion control card and the inverter and other interfaces match the control occasion.
The input pulse level of 5V 12V 24V can be directly input, without string resistance. However, the input signal frequency should be maintained for more than 0.5 seconds.The output current is 5mA.
The on-board multiturn potentiometer is used for calibration correspondence between frequency and voltage.
The optical isolate is used to ensure the anti-interference ability of the signal input.
Input power supply voltage range is 12-30 VDC, recommended supply voltage 15-24 VDC.When at 12V level, the power supply can not use 12VDC power supply, at least 15 VDC power supply, if a certain need to use 12V power supply, can also be customized 12VDC power supply converter. When at 24V level, the power supply need to use 24VDC power supply.

Specification:

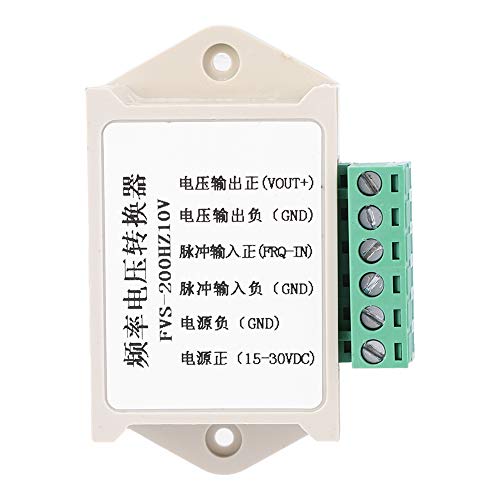

Item Type:Frequency to Voltage Converter Module
Size:7.3 x 5 x 2.8cm / 2.87 x 1.97 x 1.1in
Model :FVS-200Hz5V/FVS-200Hz10V(Optional)

FrequencyFVS-200Hz5VOutput VoltageFVS-200Hz10VOutput Voltage
20Hz0.5V1V
100Hz2.5V5V
200Hz5V10V

Package List:
1 x Converter Module

Note:
For use with PLC, support for NPN type. Must have a ground wire.
If you need to use an encoder, you need to keep the encoder running at a constant speed for more than 0.5 seconds.
Frequency and voltage conversion module, response time is about 0.3-0.5 seconds.
If the signal input is turbine flow, etc., due to signal matching, an 817 diaphragm and a resistor must be added to match the flowmeter to function properly.
If there is a deviation in the correspondence when using, you can adjust the blue potentiometer on the board to calibrate. At the time of shipment, we have adjusted the F/V potentiometer
ProductSiteLaunchDate : 2024-06-25T14:11:24.257Z
Size : FVS-200Hz10V
UnspscCode : 43201500
