Brand : YWBL-WH
BulletPoint1 : Can be used to Convert interface between PLC and frequency, Or movement control card and converter interface matching control .
BulletPoint2 : Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input frequency should be maintained for more than 0.5 seconds.
BulletPoint3 : The output current is 5MA.
BulletPoint4 : Frequency and voltage conversion module, response time is about 0.3-0.5 seconds.
BulletPoint5 : Convert the 0-500Hz frequency pulse into an analog voltage of 0-5V.
Color : #132
ExternallyAssignedProductIdentifier : 9039049325141
IncludedComponents : No
ItemName : Frequency to Voltage Converter Module, Response Time, Convert PLC Interface, for Movement Control Card, 5MA Output Current
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 5 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : frequency-transducers
Manufacturer : YWBL-WH
MaximumFrequency : 500 hertz
MinimumFrequency : 50 hertz
ModelNumber : YWBL-WHmk57rxb1o6
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : YWBL-WHmk57rxb1o6
ProductDescription : Specification:
Condition: Brand New
Item Type: Frequency To Voltage Conversion Module

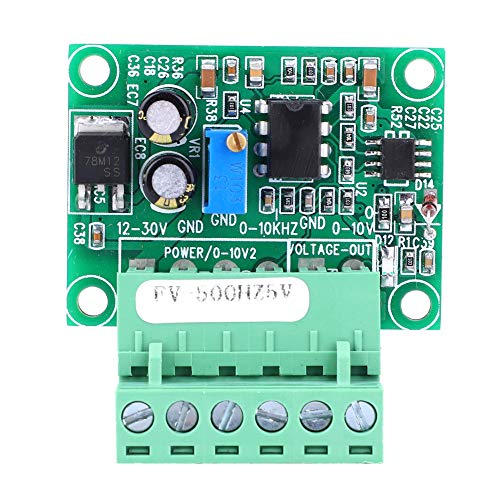

Model: FV-500Hz5V
Function: Input 0-500Hz frequency is converted to 0-5V
Output Current: 5MA
Response Time: 0.3-0.5 seconds
Size: Approx. 4.5 x 4.7 x 1.7cm / 1.8 x 1.9 x 0.7in

Package List:
1 x Frequency To Voltage Conversion Module

Precautions for use:
1. The multi-turn potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage.
2. The input power supply voltage range is 12-30VDC. It is recommended that the power supply voltage be 15-24VDC. When the 12V level is used, the power supply cannot be powered by 12VDC. At least 15VDC power supply is required. If you need to use 12V power supply, you can also order 12VDC. Powered converter. At 24 levels, the power supply needs to be powered by 24VDC
3. The input is isolated by diaphragm. Guaranteed anti-interference ability.
4. For use with PLC, support NPN type. Must have a ground wire.
5. If you need to use an encoder, the encoder should be rotated at a constant speed for more than 0.5 seconds.
6. Frequency and voltage conversion module, response time is about 0.3-0.5 seconds.
7. If the input is , etc., due to matching, an 817 diaphragm and a resistor must be added to match the flowmeter to normal function.

Identification and wiring:
1. 12-30V--Power input positive
2. GND--Power input negative (common ground wire)
3. GND--Pulse frequency input negative (common ground wire)
4. 0-10KHZ--Pulse frequency input positive
5. GND--Pulse frequency input negative (common ground wire)
6. 0-10V-- Analog 0-10V level output

Correspondence & Linear Relationship:
50Hz is converted to 0.5V
250Hz is converted to 2.5V
500Hz is converted to 5V
