Specification
Brand : ZIZEV
BulletPoint1 : High Performance Chip: The chip for this RF source features a 23.5MHz to 6000MHz base frequency VCO, with an output binary buffer or driver for extended frequency ranges, a reference clock frequency of up to 200MHz, and compatibility with 1.8V control logic.
BulletPoint2 : Equipped With Data Cable: This RF source module is equipped with a data cable, which can be connected to a PC to control the RF source, and PC software is provided.
BulletPoint3 : Full Touch Screen Frequency Input: The RF source module is a full touch screen frequency input, the output frequency mode is point frequency, and the frequency sweep is optional.
BulletPoint4 : Excellent PCB Material: This RF generator is made of excellent PCB material, which is solid and high temperature resistant, not easy to be warped, not easy to be eroded, and has a long service life.
BulletPoint5 : SMA Female Output Interface: This RF source module adopts SMA female output interface with stable connection performance.

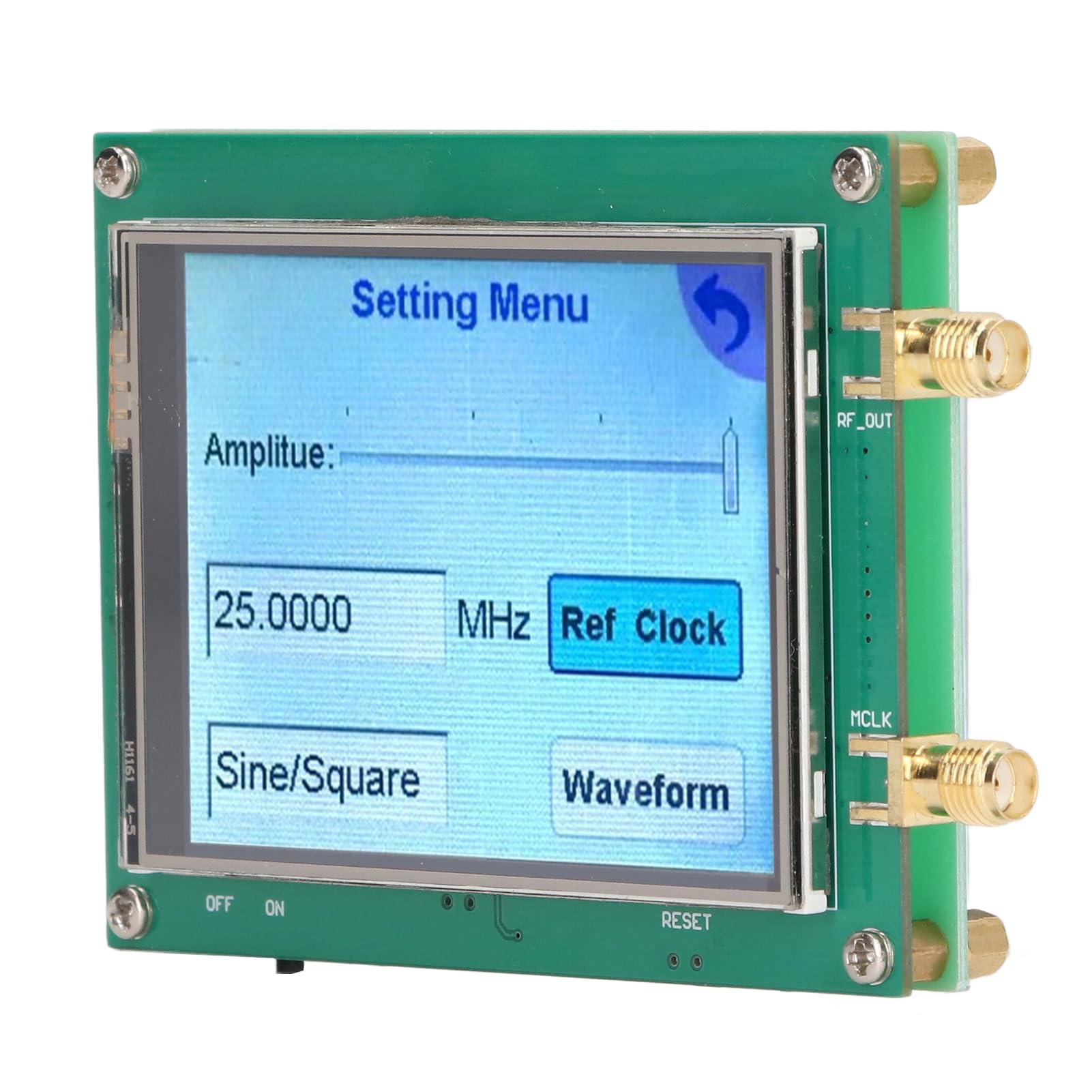

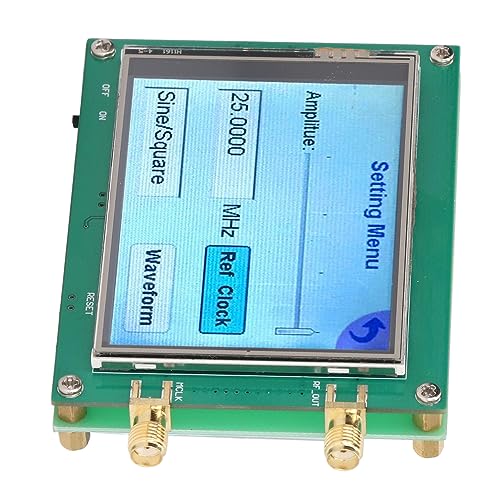

ItemName : RF Sweep Dot Frequency Module for Photovoltaic Industry, PCB Point Frequency Output Generator with Data Cable (ADF4351 35m‑4.4g)
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemTypeKeyword : frequency-transducers
Manufacturer : ZIZEV
ModelName : Zizevvsoqacepgw-12
ModelNumber : ZIZEVvsoqacepgw-12
PartNumber : ZIZEVvsoqacepgw-12
ProductDescription : 1. Full Touch Screen Frequency Input: The RF source module is a full touch screen frequency input, the output frequency mode is point frequency, and the frequency sweep is optional.
2. SMA Female Output Interface: This RF source module adopts SMA female output interface with stable connection performance.
3. High Performance Chip: The chip for this RF source features a 23.5MHz to 6000MHz base frequency VCO, with an output binary buffer or driver for extended frequency ranges, a reference clock frequency of up to 200MHz, and compatibility with 1.8V control logic.
4. Equipped With Data Cable: This RF source module is equipped with a data cable, which can be connected to a PC to control the RF source, and PC software is provided.
5. Excellent PCB Material: This RF generator is made of excellent PCB material, which is solid and high temperature resistant, not easy to be warped, not easy to be eroded, and has a long service life.

Specification:
Item Type: RF Generator
Material: PCB
Power Supply And Communication Interface: TYPE C 5V at 0.2A
Refer to ADI official evaluation board circuit and layout.
Output : 2.2-4.4G Fundamental (Sine ),35m-2.2g Fundamental (Sine )
Point frequency sweep full touch control can realize point frequency, sweep frequency.
4 Levels of Amplitude Control.
Can be connected to an external reference clock.
Output Interface: SMA Female Connector
Can be realized through the PC control, provide PC software, send the data line.

How to Use:
Use directly.

packing list:
1 x RF Generator
1 x Data Cable


ProductSiteLaunchDate : 2024-05-09T14:38:01.325Z
Size : ADF4351 35m‑4.4g
Style : Adf4351 35m‑4.4g
UnspscCode : 53120000
