Specification
AutomotiveFitType : vehicle_specific_fit
Brand : Ropoana
BulletPoint1 : 【Made to Last】: Premium metal, alloy, nylon, and plastic with injection molding and machine processing processes make this common rail injector tester kit resistant to abrasion, impact, and corrosion, ensuring excellent durability.
BulletPoint2 : 【Superior Tests Ability】: This common rail injector tester uses a precision dual scale gauge with a measuring range of 0-60mpa and a maximum test pressure of up to 40mpa. The kit is ideal for checking automotive diesel injectors as it is capable of completing correct injector opening pressure tests, leakage tests, chattering tests, spray pattern checks, and atomization.
BulletPoint3 : 【Thoughtful Oil Cup】: The clear cup can hold 0.26Gal of fuel, which is not only convenient for you to observe the change of fuel level in real time but also reduces the trouble of adding fuel frequently.
BulletPoint4 : 【Simple Operation】: You need to press the lever after filling the oil to remove the air in the tester, then connect your oil pipe, then press the lever again, connect the injector nozzle to the tube, and start the test.
BulletPoint5 : 【Good Portability】: The compact(9.65*7.48*4.13in, 16.54*14.96in ) design of the testers makes it easy to carry. It can meet the repairman's requirements for simple test devices and improve work efficiency.
Color : Blue, Black
CompatibilityOptions : Compatible
IncludedComponents1 : 1* CR-C Common Rail Injector Tester
IncludedComponents2 : 1* S60H Fuel Nozzle Tester
IncludedComponents3 : 1* Pressure Lever
IncludedComponents4 : 1* Oil Cup, 2* Oil Pipes
IncludedComponents5 : 6* Conversion Harnesses, 1* English Manual
IsAssemblyRequired : 1

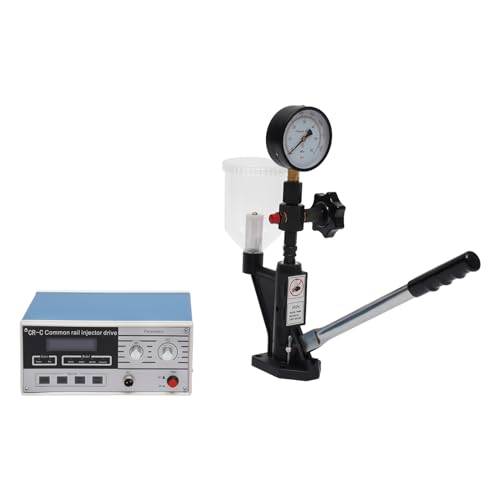

ItemName : Ropoana Common Rail Injector Tester Kit, CR-C Multifunction Diesel Common Rail Injector Tester, S60H Fuel Nozzle Tester, 110V
ItemPackageDimensions_Height : 9.06 inches
ItemPackageDimensions_Length : 30.31 inches
ItemPackageDimensions_Width : 10.63 inches
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-fuel-pressure-testers
Manufacturer : CAFIPPED
Material1 : Metal
Material2 : Alloy
Material3 : Nylon
Material4 : Plastic
ModelName : Common Rail Injector Tester Kit
ModelNumber : Common Rail Injector Tester Kit
NumberOfItems : 1
PartNumber : Injector Tester
ProductDescription :

Details

Heat Dissipation Holes: The strip-shaped heat dissipation holes on the machine are conducive to timely heat dissipation and prolong the service life of the product.

Multi-function Panel: The clear display and easy-to-operate knobs and buttons allow you to adjust pulse width, frequency, and select multiple different modes.

Flower-shaped Knob: It prevents the pressure gauge from vibrating violently due to intense pressurization and protects the gauge.



Application

This common rail injector tester is widely used for the calibration of fuel injectors for automobiles, tractors. It can be used to inspect and measure the opening pressure of injection, atomization quality, injection angle, and needle valve sealing of diesel injector assembly.



Specifications

Color: Blue, Black

Material: Metal, Alloy, Nylon, Plastic

Process: Injection Molding, Machine Processing

Assembly Required: Yes

Power Source: Corded Electric

Plug Type: US Standard

Voltage: 110V

Measured Value Range: 0-60mpa

Maximum Test Pressure: 40mpa

Oil Cup Capacity: 1L/0.26Gal

Power Cord Length: 1.5m/4.92ft

CR-C Common Rail Injector Tester Size: 24.5*19*10.5cm/9.65*7.48*4.13in

S60H Fuel Nozzle Tester Size: 42*38cm/16.54*14.96in

Package Size: 77*27*23cm/30.31*10.63*9.06in

Gross Weight: 6.14kg/13.54lbs

Net Weight: 6kg/13.23lbs



Package Included

1* CR-C Common Rail Injector Tester

1* S60H Fuel Nozzle Tester

1* Pressure Lever

1* Oil Cup

2* Oil Pipes

6* Conversion Harnesses

1* English Manual

Other Accessories for Use



Notes

1.Before first use, please rinse the tester.

2.Please note that with CRC you can measure common rail injectors and S60H alone can measure common mechanical injectors. Please note that CR-C is not suitable for piezo injectors.

Size : Large
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 25191800
WarrantyDescription : If you have any questions, please contact our customer service and we will reply to you as soon as possible within 24 hours.
