Specification
Brand : ANGGREK
BulletPoint1 : Wide Voltage Design: Long term working voltage is 9 to 32V, and digital multi function gauge is low power consumption with long life and short start up time.
BulletPoint2 : Strong Connection: The Digital Water Temp Gauge is mounted with screw holes for a solid connection and works even under strong vibrations.
BulletPoint3 : Widely Used: Digital Multi Function Gauge is very suitable for various watercraft such as ships, fishing boats and yachts.
BulletPoint4 : High Class Materials: Oil temperature gauge is made of 316L stainless steel bezel and anti fog curved glass cover, which is IP67 and , ideal for harsh environments such as , alkali and humidity.
BulletPoint5 : LED Backlight: LED backlight is used for easy viewing of the vessel at night. The multi function gauge is characterized by high indication accuracy, high versatility, reliability and stability, and easy to use.
BulletPoint6 : Shaft is 1-1/4" long
Color : Black Dial White Front Cover 910 00274
ExternallyAssignedProductIdentifier1 : 0768674095110
ExternallyAssignedProductIdentifier2 : 768674095110
IncludedComponents : No

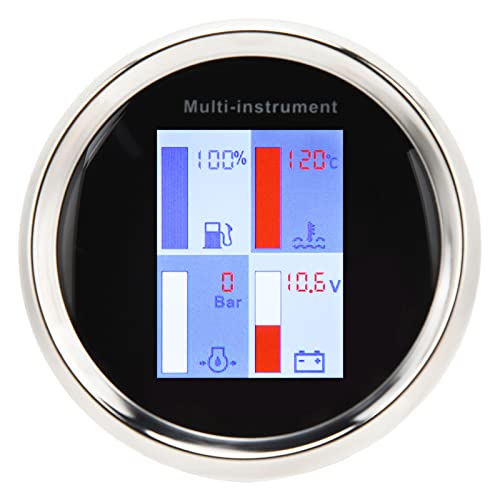

ItemName : Fuel Level Meter, LED Red Background Lighting High Precision Digital Multifunctional Meter for Ships (Black Dial White Front Cover 910 00274)
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 11 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : boat-fuel-flow-instruments
Manufacturer : ANGGREK
MeasurementAccuracy : 0.1mm
ModelName : ANGGREK8o7nz15ivr-12
ModelNumber : ANGGREK8o7nz15ivr-12
NumberOfItems : 1
PartNumber : ANGGREK8o7nz15ivr-12
Pattern : Solid
ProductDescription : 1. Widely Used: Digital Multi Function Gauge is very suitable for various watercraft such as ships, fishing boats and yachts.
2. High Class Materials: Oil temperature gauge is made of 316L stainless steel bezel and anti fog curved glass cover, which is IP67 and , ideal for harsh environments such as , alkali and humidity.
3. LED Backlight: LED backlight is used for easy viewing of the vessel at night. The multi function gauge is characterized by high indication accuracy, high versatility, reliability and stability, and easy to use.
4. Wide Voltage Design: Long term working voltage is 9 to 32V, and digital multi function gauge is low power consumption with long life and short start up time.
5. Strong Connection: The Digital Water Temp Gauge is mounted with screw holes for a solid connection and works even under strong vibrations.

Spec:
Item Type: 85mm Multi Function Gauge
Function Range: Water temperature gauge, fuel pressure gauge, voltage gauge, oil level gauge
Material: Stainless steel 316L bezel + anti-fog glass
Water Temperature Meter Display Range: 0 to 120℃
Protection Level: IP67, the whole body is completely ; excellent anti-fog function
Backlight Color: Red
Working Voltage: 9 to 32V DC
Working Current: ≤150mA
Working Temperature: -30℃ to + 75℃
Storage Temperature: -40 ℃ to + 85 ℃
Protection Level: IP67, can work underwater 1m position
Fitment:
For yachts, ships, speedboats, etc.
Wiring:
1. Red wire - +9-32VDC
2. Black wire - oil level signal
3. Blue wire - power negative (- )
4. Purple wire - pressure signal
5. White wire - temperature signal
Instrument setting instructions:
Press the key function:
a. Press and hold the Mode and Set keys simultaneously before powering on the instrument to switch on the background picture and save it (only adapted to perform before powering on).
Instrument setting instructions.
Press the key function.
a. Press and hold the Mode and Set keys simultaneously before powering on the instrument to switch on the background picture and save it (only adapted to perform before powering on).
b. Press and hold the Mode button for more than 3 seconds to enter the parameter setting mode, the digital display in the corresponding area becomes magenta and flashes, release the Mode button and press the Mode button again briefly to switch the oil level meter → water temperature → pressure meter input signal selection mode in turn.
c. After entering the parameter setting mode, short press the Set key to switch the parameters in the corresponding area. After adjusting to the data you need against the parameter group table, release Mode and Set keys for 3 seconds, the data will be saved automatically and the display will return to normal interface, and the numbers will no longer flash.
d. Press the Set button lightly (less than 2 seconds) to switch the temperature unit: °C (default) → °F cycle
Switching.
c. After entering the parameter setting mode, short press the Set key to switch the parameters in the corresponding area. After adjusting to the data you need against the parameter group table, release Mode and Set keys for 3 seconds, the data will be saved automatically and the display will return to normal interface, and the numbers will no longer flash.
d. Press the Set button lightly (less than 2 seconds) to switch the temperature unit: °C (default) → °F cycle
Switching.

How to Use:
Installation steps:
Step 1: Open a 85 to 87mm diameter round hole in your central control or other pre installed location and make sure there is at least 70mm of space behind the panel
Step 2: put the meter into the open round hole
Step 3: Screw the bracket holes corresponding to the screws on the back of the meter, then tighten them with screws and clamp the panel with the bracket and the meter frame
Step 4: Plug the power harness directly into the back of the instrument's wiring port, and then connect the corresponding sensor and harness to the power supply according to the distributed manual.

Package List:
1 x Multi Function Gauge

1 x Power Cord

1 x Instruction Manual
1 x Package of Accessories (3PCS)
ProductSiteLaunchDate : 2025-05-01T12:41:47.674Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41110000
