Specification
Brand : Usmile
BulletPoint1 : Adjustable Voltage and Current Output: This signal generator offers adjustable voltage from 0 to 10V and current from 0 to 22mA, with a driving current less than 20mA and load sampling resistance less than 500 ohms, suitable for precise test setups and experimentation. Great tool for troubleshooting open pressure sensors on the engines, testing VFDs and other PLC functions
BulletPoint2 : High-Resolution Tuning: Features fine tuning capabilities with resolution adjustments as precise as 0.01V for voltage and 0.01mA for current, ensuring detailed control over output settings for critical applications.
BulletPoint3 : Superior Linearity and Display: Boasts superior linearity better than 0.2%, combined with a clear 4-digit digital tube display that enhances readability and accuracy during adjustments.
BulletPoint4 : Flexible Control Interface: Utilizes a rotary encoder and button interface for intuitive adjustment of settings, allowing for quick changes and easy navigation through various output modes.
BulletPoint5 : Advanced Configuration and Safety Features: Includes a password-protected menu access system, ensuring secure adjustments and configurations. The device also supports both saving and exiting without saving, which allows for trial adjustments without risking current configurations.
ExternallyAssignedProductIdentifier : 7505539457651
ExternallyAssignedProductIdentifier1 : 0735980953571
ExternallyAssignedProductIdentifier2 : 735980953571
IncludedComponents : 1*Signal Generator

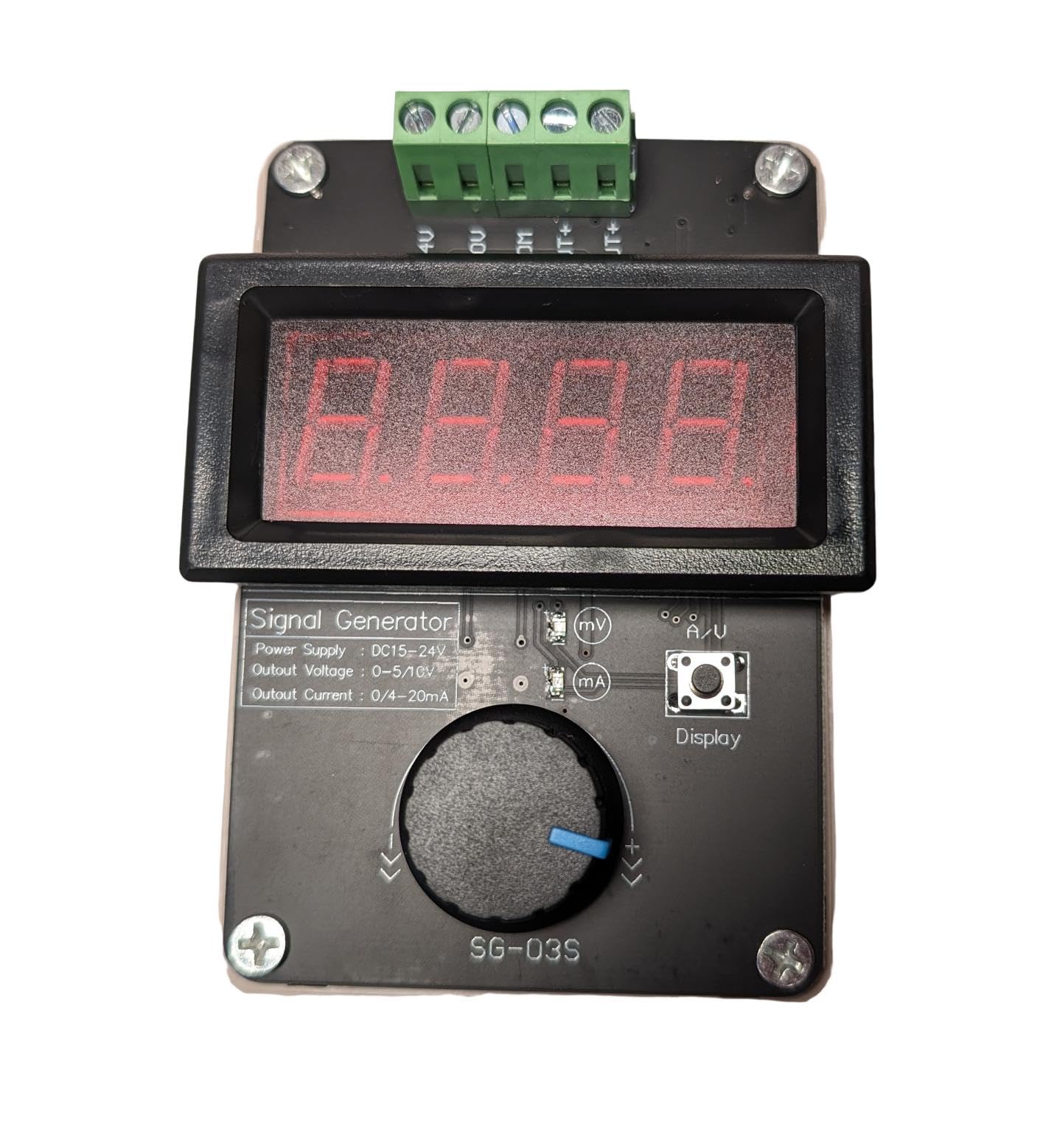

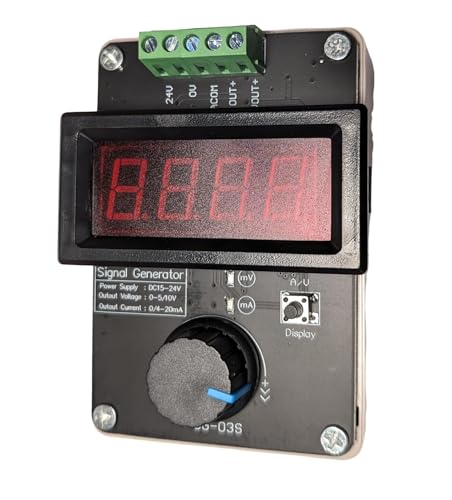

ItemName : 24V DC 0-10V 0-22mA Adjustable Signal Generator Calibrator Current Voltage Analog Signal Simulator for Level sensors, Flow Detectors and Pressure switches VFD PLC
ItemPackageDimensions_Height : 1.6 inches
ItemPackageDimensions_Length : 4.3 inches
ItemPackageDimensions_Width : 3 inches
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Usmile
MeasurementAccuracy : +/-0.5%
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : U422
ProductDescription : The Precision Signal Generator is designed to deliver high performance and flexibility in laboratory or industrial settings. This device operates with a 24VDC power supply, making it compatible with standard power sources. The output settings include a voltage range from 0 to 10V and a current range from 0 to 22mA, each adjustable via a high-resolution tuning system that allows changes in increments as small as 0.01V or 0.01mA.
For controls, the device uses a combination of rotary encoder and push-buttons. Switching between voltage and current output modes is effortlessly achieved by pressing the 'Display' button, which shows the current output on the digital display. Adjustments are made by turning the rotary encoder, with the option to reset or revert to previous values by pressing the encoder button.
Menu access is secured through a password system, where users need to input a correct sequence of encoder turns—either 'right-left-left-right' for voltage mode or 'right-left-right-left' for current mode—to enter the setup menu. This feature prevents unauthorized adjustments and maintains the integrity of the device settings.

ProductSiteLaunchDate : 2024-04-22T09:26:49.045Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41115320
