Specification
Brand : Generic
BulletPoint1 : DDS-based signal generator (Direct Digital Synthesizer) offers high stability, high precision, and low distortion
BulletPoint2 : Frequency generator features a 2.4” TFT color LCD display to show parameters and graphics of the two channels at the same time
BulletPoint3 : Function generator has a built-in high D/A converter chip to provide high anti-interference, sampling rate of 250MSa/s, vertical resolution of 14bits
BulletPoint4 : Signal generator can sweep 4 properties of signals (frequency, amplitude, offset and duty cycle), and has 2 sweep types (linear and logarithm), sweep time of 0.01S~999.99s, and up/down/roundtrip sweep directions
BulletPoint5 : Signal generator can be used independently or controlled via computer host software, providing 3 windows - waveform window, text window, and control window
ExternallyAssignedProductIdentifier : 4894927066173
ExternallyAssignedProductIdentifier1 : 739227847838
ExternallyAssignedProductIdentifier2 : 0739227847838
IncludedComponents : Signal Generator, USB Cable, Power Cable, BNC-BNC Cable, 2x BNC-Clip Cable

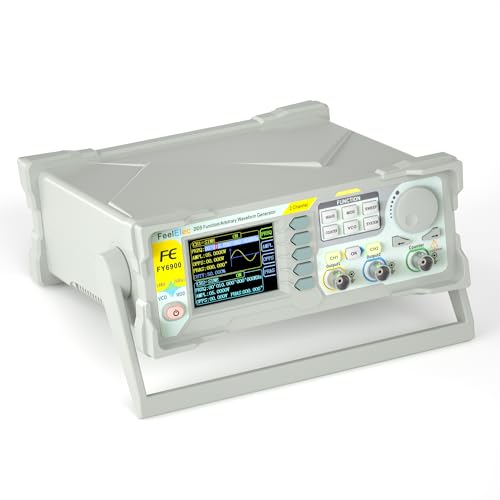

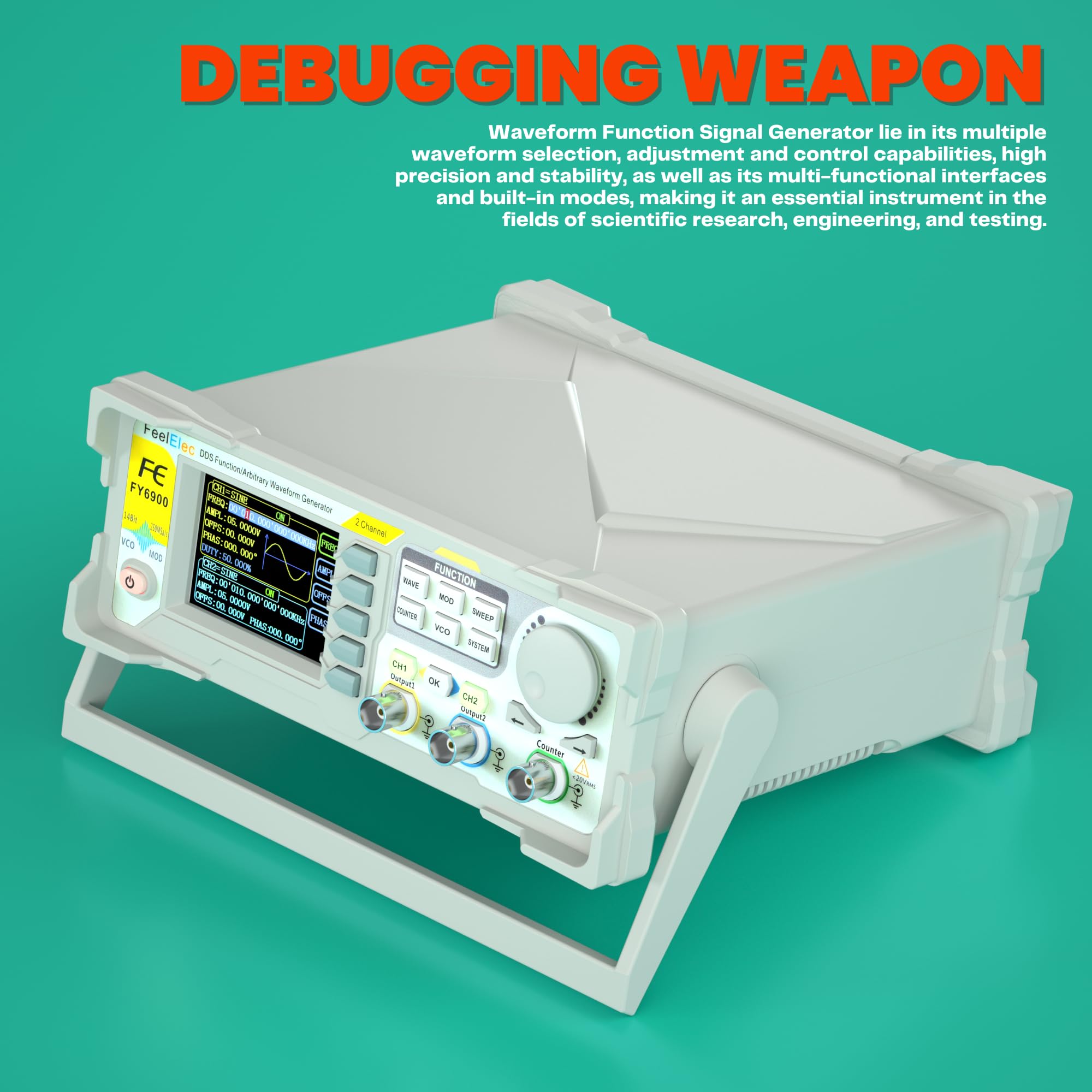

ItemName : Generic FY6900 DDS Signal Generator, 60MHz Frequency Meter Counter, 250MSa/s Double Channel Function Generator, Arbitrary Waveform, High Precision, LCD Display with Graphics
ItemPackageDimensions_Height : 3.7 inches
ItemPackageDimensions_Length : 10.8 inches
ItemPackageDimensions_Width : 8.3 inches
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Generic
MeasurementAccuracy : ±20ppm
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 45247SG-FY6900
ProductDescription :

Features

- Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals

- The standard 3-pin power plug increases the grounding protection and effectively eliminates the leakage current on the BNC terminal

- 2.4 inch TFT Color LCD with 320×240 resolution, displaying parameters and graphics of the two channels at the same time

- Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits

- Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations

- Standard dual full functional channels which are equivalent to two independent generators.

- Channel SYNC Function: Support waveform copy and state copy between channels

- Precisely adjust the phases of the two channels, Precision can be 0.01°

- Minimum amplitude resolution can be up to 1 mV. Amplitude range is 0~20Vpp

- Duty-cycle of each channel can be adjusted independently0.01%-99.99%, the adjusting resolution is 0.01%

-10V~+10V DC Offset function; Resolution 0.001V

- Output short-circuit protection: All channels can work more than 60 seconds when the load is short-circuited

Specifications

- Material: ABS

- Model: FY6900

- Supply Voltage: AC100V~240V

- Sine: 0~60MHz

- Square: 0~25MHz

- Ramp, Triangle: 0~10MHz

- Pulse: 0~10MHz

- TTL/CMOS: 0~10MHz

- Arbitrary Waveform: 0~10MHz

- Min. pulse width: 20ns(All m

- Accuracy: ±20ppm

- Stability: ±1ppm/ 3hours

- Amount (Save & Load): 20

- Position (Save & Load): 01 to 20 (01 for start default value)

- Type: USB to Serial interface

- Communicating Speed: 9600bps (Industrial standard)

- Protocol: Command line mode, providing communication protocols.

Package Content

- 1 x Signal Generator

- 1 x USB Cable

- 1 x Power Cable

- 1 x BNC-BNC Cable

- 2 x BNC-Clip Cable
