Specification
Brand : Generic
BulletPoint : ICL8038 Monolithic Function Signal Generator Module DIY Kit Sine Square Triangle
BulletPoint1 : TECHNICAL PARAMETERS - Voltage generator voltage output 0‑10V, accuracy for 0.01V, output current <20mA, rotary encoder knob can adjust the output voltage, rotate a circle with 20 pulses.
BulletPoint2 : ACCURATE MEASUREMENT - The voltage generator can accurately measure and adjust small voltages within the rated voltage range, which can be accurate to two decimal places to help you obtain more accurate data for debugging.
BulletPoint3 : 4 BIT DISPLAY - The adjustable voltage generator has a 4 bit LED digital display with clear amplification to accurately monitor the output voltage.
BulletPoint4 : SAFE TO USE - The output of adjustable Voltage generator has short circuit protections, the power supply has reverse polarity protections, and the use is safe.
BulletPoint5 : WIDELY USED - Can be used in electronic equipment and engineering debugging, panel debugging, LED testing, analog transmitter output and other fields. Whether in a factory or a laboratory, equipped with a small versatile adjustable Voltage generator that you always have a chance to use.
ExternallyAssignedProductIdentifier : 8338702328200
FinishType : Finish
IncludedComponents : inc
ItemName : Generic ICL8038 Monolithic Function Signal Generator Module DIY Kit Sine Square Triangle
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : Generic
Material : Material
PartNumber : TJUJ_YUD_13899
PowerSourceType : PowerSource
ProductDescription :
Descriptions:

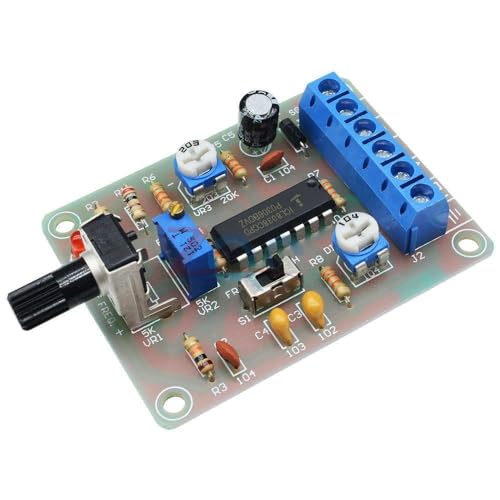

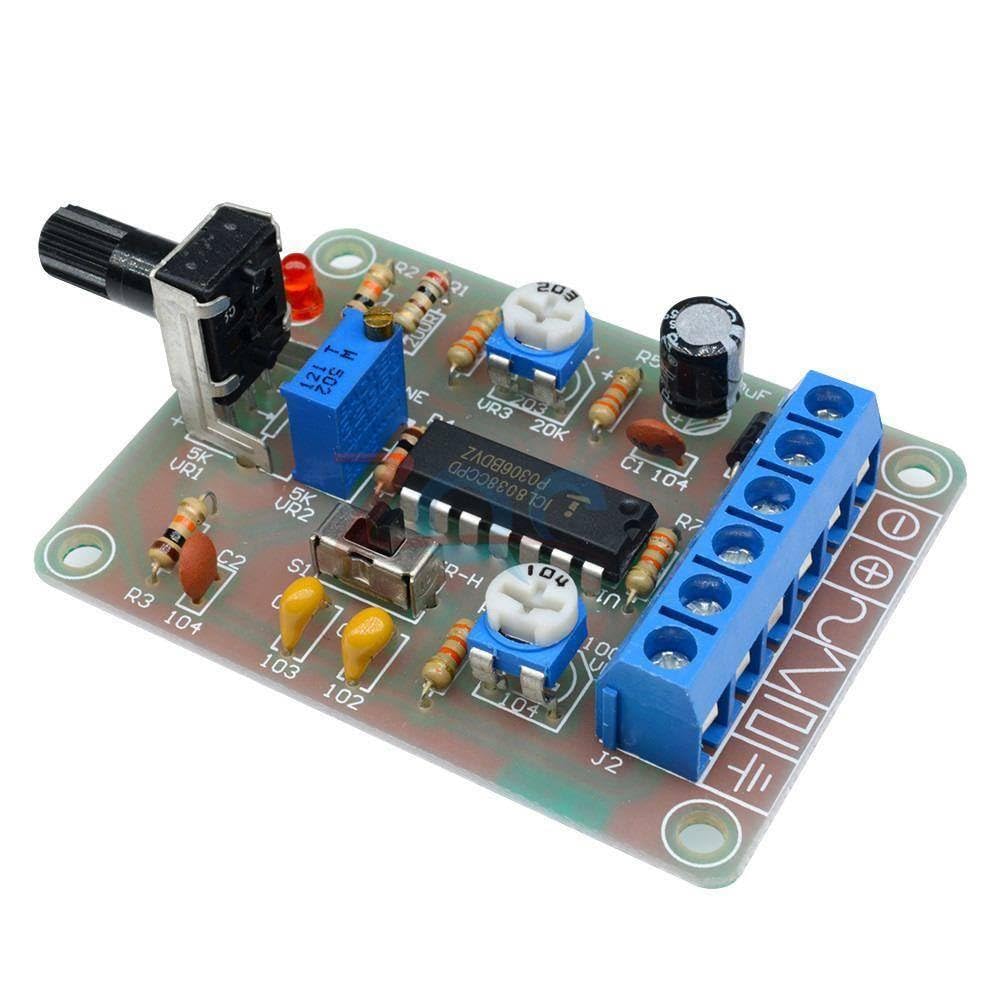

With excellent performance ASIC chip function generator ICL8038, add a small amount of resistive and capacitive components, can produce sine, triangle and square wave, and the frequency of the signal, duty cycle, adjustable distortion sine wave.
Notice：
It is an welded product, if you need the DIY kit, pls contact us :
）
ICL8038 pin functions:
1 foot, 12 foot: sine waveform adjusting terminal;
2 foot: sine wave output;
3 foot: triangle wave output;
4 foot, 5 foot: the frequency and duty cycle (or waveform asymmetry) adjustment;
6 foot: V +, the positive power supply;
7 foot: offset; 8 foot: frequency adjustment input terminal;
9 foot: square wave output.
This is an open collector output terminal, work should take a load resistor to the corresponding positive power supply terminal from the pin, to get a TTL-compatible square-wave output, the load resistance must be connected to + 5V power supply;
10 foot: timing capacitor terminal;
11 foot: V-, negative power supply terminal or the ground. Use positive and negative power supply, 11 feet to the negative supply, the output waveform are symmetrical with respect to 0V; use a single positive power supply, 11 feet grounded, the output waveform is unipolar, uniform voltage is + VCC / 2;
13 feet, 14 Feet: Empty foot.
The kits are designed for a frequency range is 50-5KHz, two bands with a switch S to switch, RP1 is the frequency adjustment, RP2 is the duty cycle adjustment, RP3 is a sine wave distortion adjustment. Circuit uses 12V single power supply, input from the X1; X2, X3 is a waveform output side, you can use oscilloscope to observe three output waveforms.
Model: ICL8038
Input 12V DC
Frequency range 50-5KHz,
Size:6cm*4.5cm*0.2cm
Weight:26g
Package included:
1PCS
