Specification
BatteriesRequired : 1
Brand : KKnoon
BulletPoint : AD9959 4 Channels DDS Module RF Signal Generator AT Instruction Sweep Frequency AM Signal-Generator Serial Output
BulletPoint1 : 2.4-inch 320X240 TFT LCD with clear graphic interface.
BulletPoint2 : Both channels are independent of each other and have phase synchronization function.
BulletPoint3 : Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k.
BulletPoint4 : 5 basic waveforms and 32 arbitrary waveforms in-built.
BulletPoint5 : waveform storage; Support internal storage of 50 groups of user-defined edited waveforms;
Color : Black&silver
ExternallyAssignedProductIdentifier : 4861207279721
ExternallyAssignedProductIdentifier1 : 0627504769334
ExternallyAssignedProductIdentifier2 : 627504769334
IncludedComponents : no

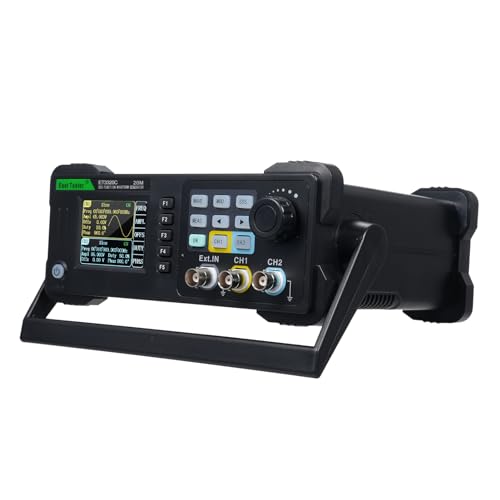

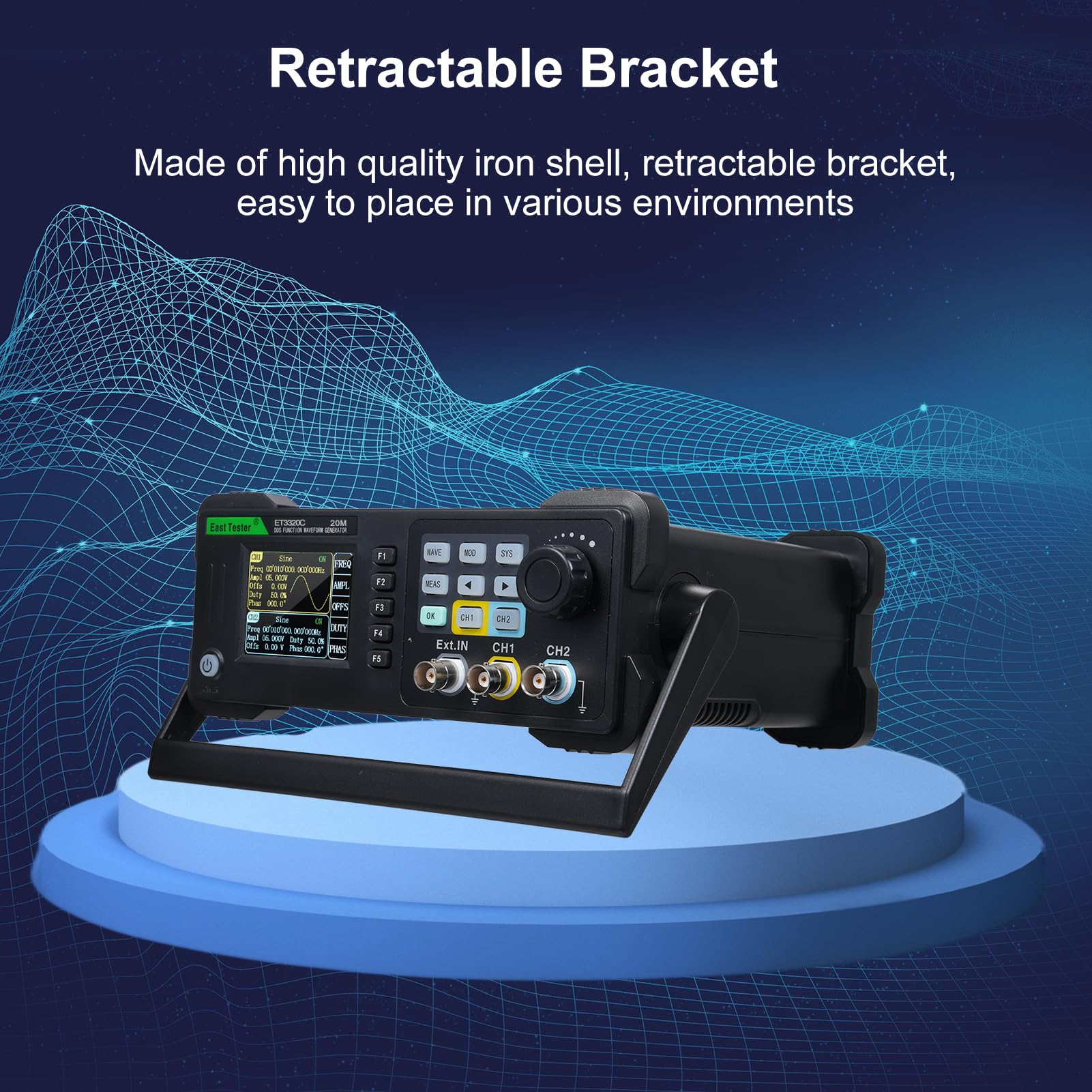

ItemName : KKnoon Two-Channel Function/Arbitrary Waveform Generator 20MHz Frequency Meter ET3320C Pulse Signal Source 200MSa/s Sampling Rate
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 12 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
Manufacturer : KKnoon
ModelName : E25493US-20
ModelNumber : HHXE25493US-20
NumberOfItems : 1
PartNumber : E25493US-20
PowerSourceType : ac/dc
ProductDescription : 50~60Hz
Display: 2.4 inch TFT LED
Frequency Characteristics:
Sine: 1μHz~20MHz
Square: 1μHz~15MHz
Triangle: 1μHz~15MHz
Pulse: 100μHz~6MHz
Arbitrary: 1μHz~6MHz
Frequency Resolution: 1μHz
Frequency Accuracy: ±20ppm
Frequency Stability: ±1ppm / 3 hour
Waveform Characteristics:
Waveform Types: Sine, square, triangle, pulse, noise and arbitrary waves (including DC). There are 32 kinds of arbitrary waves and 50 kinds of user-defined waves.
Waveform Length: 8192 points
Waveform Sampling Rate: 200MSa/s
Waveform Vertical Resolution: 13bits
Sine Wave Characteristics:
Sine Wave: Harmonic Suppression Degree: ≥45dBc (＜1MHz); ≥40dBc (1MHz~20MHz)
Total Harmonic Distortion: ＜0.8% (20Hz~20kHz, 0dBM)
Square Wave Signal Characteristics:
Square Wave: Rise/Fall: ＜20ns
Overshoot: ＜5%
Duty Cycle: freq＜100kHz: 1%~99%
100kHz≤freq＜5MHz: 20%~80%
5MHz≤freq: 40%~60% (0.1% resolution)
Pulse Wave Characteristics:
Pulse Wave: Pulse Width: Min 20ns; 1ns resolution
Edge jump time: Min 20ns
Overshoot: ＜5%
Jitter: 6ns+0.1%Period
Sawtooth Wave Characteristics:
Sawtooth Wave: Linearity Degree: ≥98% (0.01Hz~10kHz)
Symmetry: 0.0~100.0% (resolution 0.1%)
Item Size: 195 * 185 * 80mm / 7.67 * 7.28 * 3.15in
Item Weight: 598g / 1.32lb
Package Weight: 1152g / 2.54lb
Package Size: 27.5 * 23.5 * 12cm / 10.82 * 9.25 * 4.72in

Package List:
1 * Signal Generator
1 * Power Cable
2 * BNC Coaxial Cables
1 * USB Data Cable
1 * Straight Signal Cable
1 * User Manual (English)


ProductSiteLaunchDate : 2024-05-16T06:59:24.710Z
Size : US Plug
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 27112700
