Specification
Brand : YILUBAO
BulletPoint1 : Output frequency range 0.1~5000 Hz
BulletPoint2 : output frequency resolution 0 1 HZ
BulletPoint3 : 3-phase phase shift range 0~360 degrees
BulletPoint4 : dimensions 56 * 45 * 20 mm length X width X height
BulletPoint5 : Low distortion (≤1% 0.5Hz-100KHz), the function signal generator outputs seven waveforms including sine wave, square wave, triangle wave and ramp wave.
Color : Green
ExternallyAssignedProductIdentifier : 7429803331655
IncludedComponents : see details

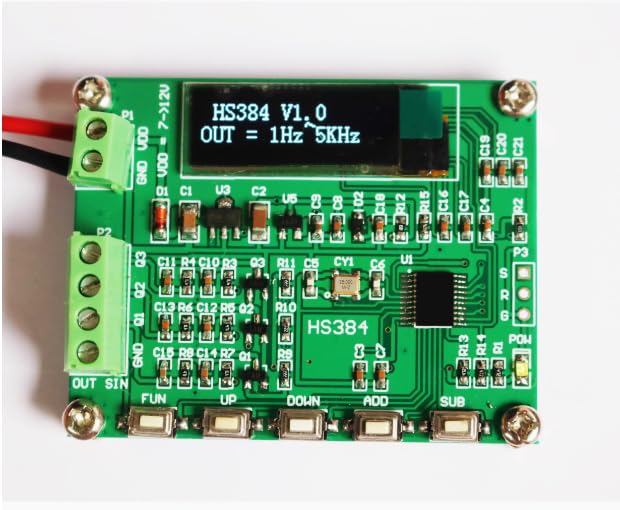

ItemName : OLED 1Hz~5KHz Three-Phase sine Wave Signal Generation Instrument Resolution 1 Degree
ItemPackageDimensions_Height : 3.94 inches
ItemPackageDimensions_Length : 10.24 inches
ItemPackageDimensions_Width : 9.84 inches
ItemTypeKeyword : function-generators
Manufacturer : YILUBAO
ModelName : Function Signal Generator
ModelNumber : FSG-80
NumberOfItems : 1
OutputWattage : 35
PartNumber : YILUBAO
PowerSourceType : Battery Powered
ProductDescription : Technical parameters
HS384
Number Project Parameters Unit Remarks
1. Output frequency range 0.1~5000 Hz
2 output frequency resolution 0 1 HZ
3-phase phase shift range 0~360 degrees
4-phase phase-shifting resolution of 1 degree
5 signal amplitude 1-5 VDC maximum amplitude 5.0Vpp< br/> 6 working voltage 7-12 VDC
7 working current<50 mA
8 dimensions 56 * 45 * 20 mm length X width X height
9 Weight 50g
4、 Interface display and operation instructions:
(1) Button Description:
FUN: Function key; UP: Change interface downwards; Down: towards Set up a new interface; ADD: Self added key; SUB : 4.1. Set output frequency
Interface display font:
The first line "1 Frequency
Second line "* 1
100. OHz
Button operation:
FUN: (Select the operation bit for setting data) (Long press the FUN key to save the set parameter values)
ADD: Self added key< br/> SUB: Self reducing key< br/>
ProductSiteLaunchDate : 2022-07-29T01:09:20.576Z
Size : 0.1Hz~2MHz
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 32101500
WarrantyDescription : 1 year
WebsiteShippingWeight : 4 kilograms
