Specification
BatteriesRequired : 1
Brand : RuoShui
BulletPoint1 : VICTOR 2003A with 3.5-inch TFT LCD screen,Resolution480×320,16M color
BulletPoint2 : Interface:RS232,USB Device;USB Host(optional)
BulletPoint3 : Multi-functional arbitrary waveform editing software equipped
BulletPoint4 : Chinese / English menu available,5 basic waveforms and 32 arbitrary waveforms in-built
BulletPoint5 : Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k
Color : Orange
ExternallyAssignedProductIdentifier : 7504357775008
IncludedComponents : RUOSHUI 2003A
ItemName : RUOSHUI 2003A(25MHz)/2004A(40MHz)/2006A(60MHz) signal generator Two-Channel Function/Arbitrary Waveform Generator High Accuracy Frequency 32-Bit Counter​(RUOSHUI 2003A)
ItemPackageDimensions_Height : 18 centimeters
ItemPackageDimensions_Length : 20 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : function-generators
LowerTemperatureRating : -20 degrees_celsius
Manufacturer : Xi'an Beicheng Electronics Co.Ltd(RUOSHUI)
Material : acrylonitrile_butadiene_styrene
MeasurementAccuracy : 0.1%
ModelName : 2255800292988938
ModelNumber : EO-RUOSHUI 2003A
NumberOfItems : 1
PackageLevel : unit
PartNumber : EO-RUOSHUI 2003A
PowerSourceType : Battery Powered
ProductDescription : RUOSHUI 2003A(25MHz) / 2004A(40MHz) /2006A (60MHz) 15M/25M/40M/60M Two-Channel Function/ Arbitrary Waveform Generator With 100MHz High Accuracy Frequency 32-Bit Counter

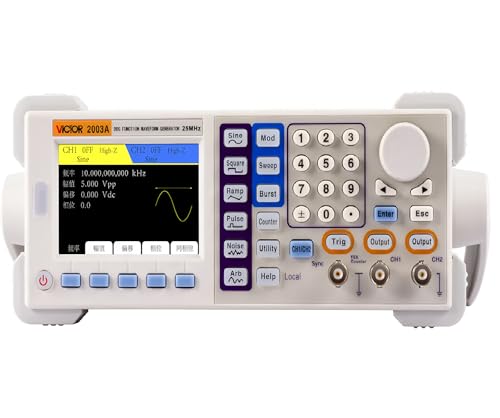

15M/25M/40M/60M Two-channel Function/ Arbitrary Waveform Generator

These series two-channel function/arbitrary waveform generator is equipped with direct digital synthesis (DDS) technology which enables output signal to be stable and accurate.

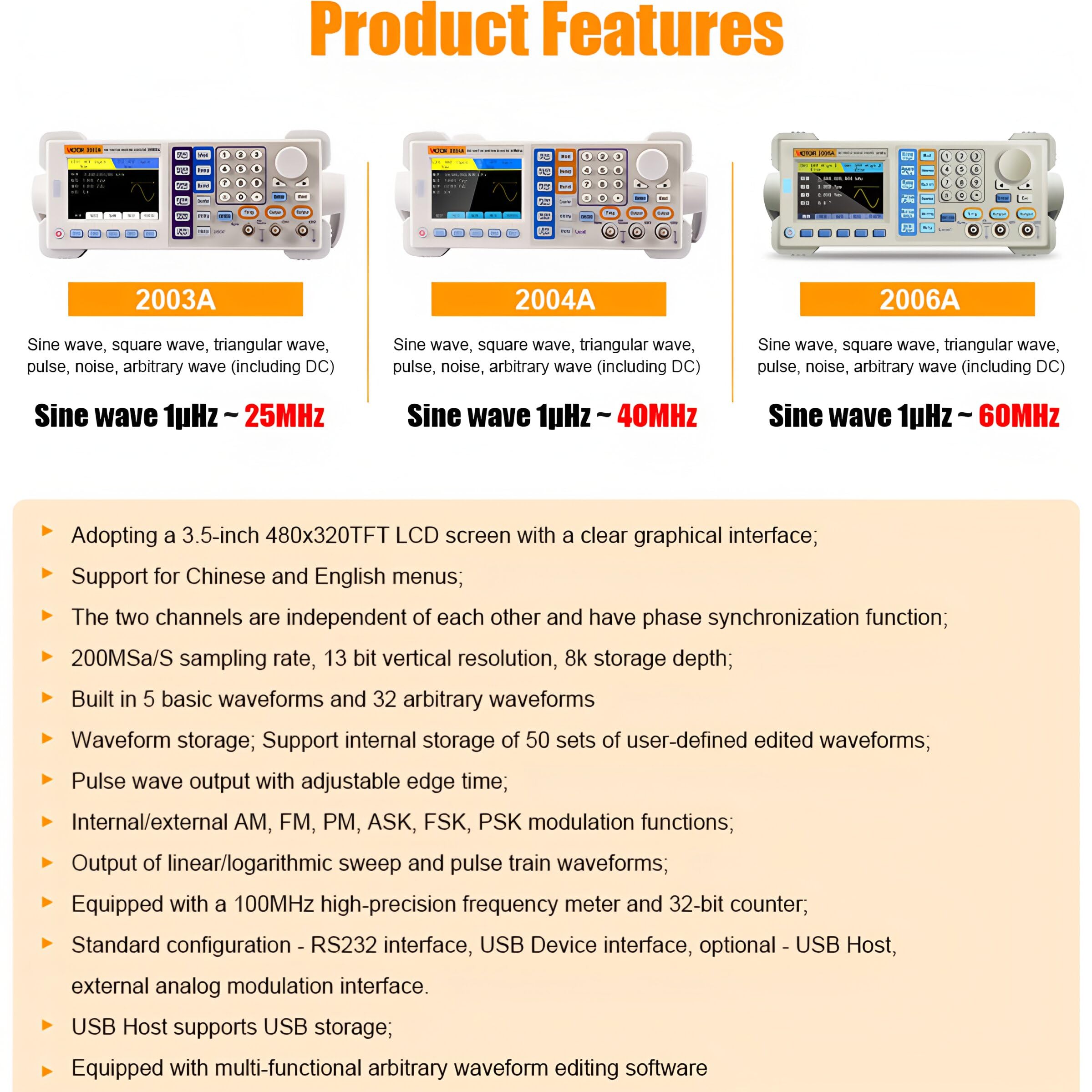

Key Features

3.5-inch 480×320TFT LCD with clear graphic interface
Chinese / English menu available
Press key for help and information
File management supporting USB flash disk and local storage
Two-channel output with the highest output frequency is “15M type” Model is 15MHz,“25M type” Model is 25MHz, “40M type” Model is 40MHz, “60M type” Model is 60MHz.
Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k
5 basic waveforms and 32 arbitrary waveforms in-built
Pulse wave output set in edge time
Internal/external AM, FM, PM, ASK, FSK and PSK modulation function
Output of linear/logarithmic frequency sweep and burst waveform
Frequency meter of high precision of 100MHz and 32-bit counter
With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage (USB Host Optional)
Multi-functional arbitrary waveform editing software equipped
General Technical Specifications

Supply voltage:220V±10%,45~65Hz,Or 110V±10%,45~65Hz
Power consumption:< 15W
Types:3.5-inch TFT LCD screen,Resolution480×320,16M color
Environment:Operation 10 ℃ ~ +40 ℃,Non-operation -10℃~+60℃
Humidity range:Within the range of 0 ~ 40 ℃,≤90％ relative humidity
Interface:RS232,USB Device;USB Host(optional)
Display:3.5 inch TFT LCD screen, 480 x 320 resolution
Size:265 * 105 * 305 mm (width x height x deep)
Weight:2.6 kg
ProductSiteLaunchDate : 2025-03-30T07:03:54.423Z
Size : RUOSHUI 2003A
SpecificationMet1 : CE
SpecificationMet2 : RoHS
SpecificationMet3 : UL
Style : Arbitrary Waveform Generator
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26111600
UpperTemperatureRating : 60 degrees_celsius
Wattage : 5 watts
