Specification
Brand : HCDC
BulletPoint1 : Work voltage: AC or DC 5~32V, total current rating 40Amp. Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
BulletPoint2 : Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
BulletPoint3 : P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
BulletPoint4 : P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function
BulletPoint5 : FR-4 fiber glass PCB, dual copper layers.
CenterlineLength : 176.93 millimeters
Color : Grey
ConnectorType : Screw
CurrentRating : 6.3 amps
CurrentRating1 : 5 amps
CurrentRating2 : 10 amps
CurrentRating3 : 40 amps
ExternallyAssignedProductIdentifier : 6956601852705
ExternallyAssignedProductIdentifier1 : 791162197669
ExternallyAssignedProductIdentifier2 : 0791162197669
ExternallyAssignedProductIdentifier3 : 00051712706339
IncludedComponents : 1 Bussman branded product

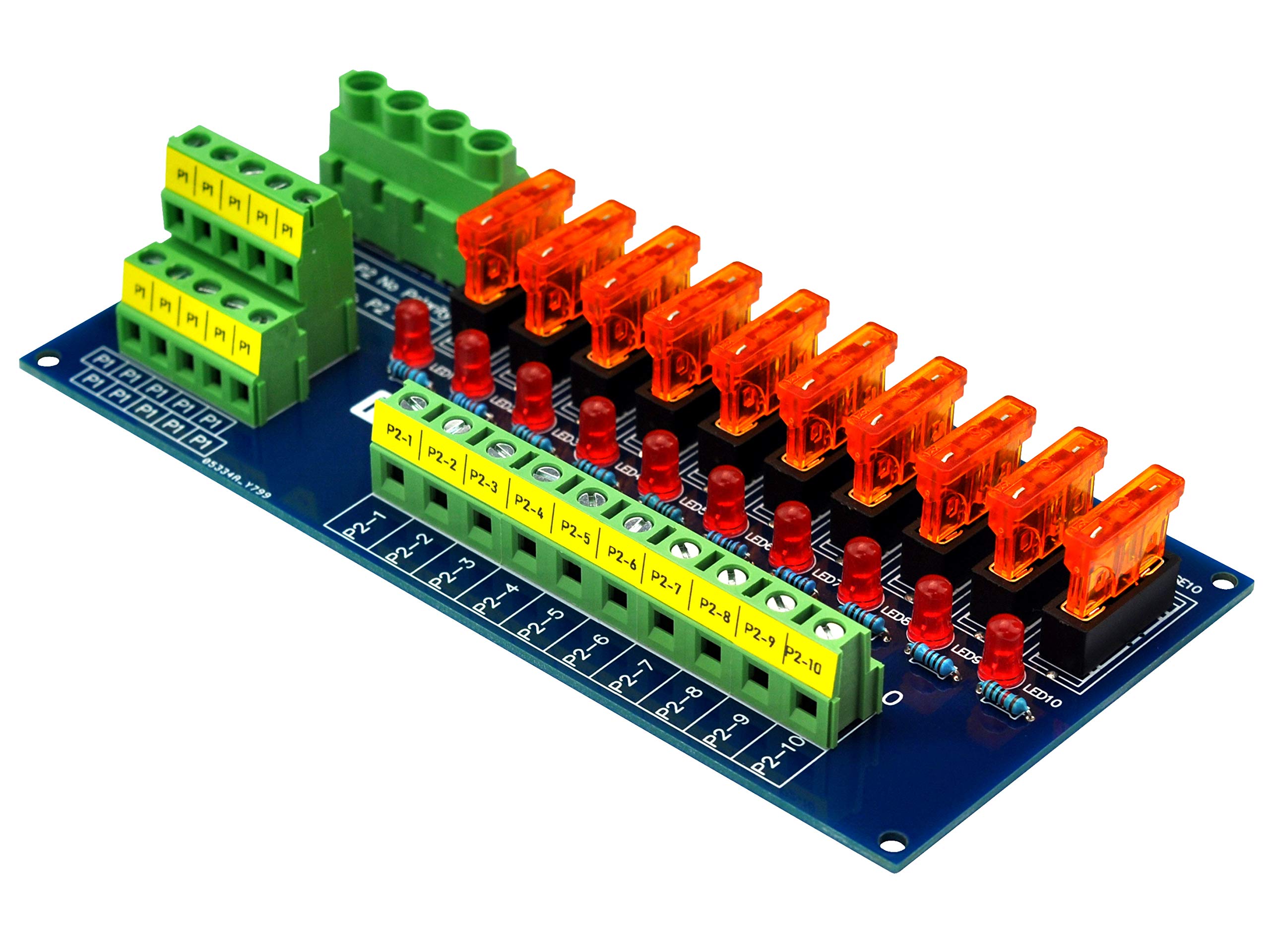

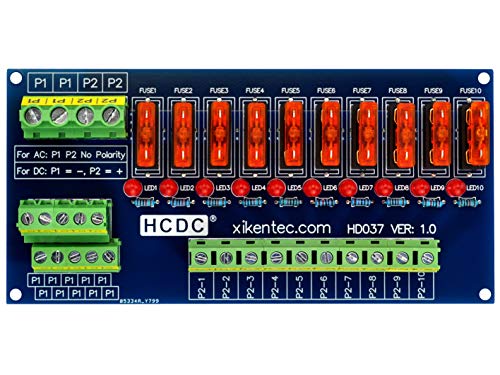

ItemName : Screw Mount 10 Position Power Distribution Fuse Module Board, for 5 to 32V
ItemPackageDimensions_Height : 16.7894 centimeters
ItemPackageDimensions_Length : 3.4036 centimeters
ItemPackageDimensions_Width : 8.509 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : fuse-blocks
Manufacturer : Xiken Electronic Technology Co., Ltd.
Material : Copper
MaximumCurrent : 250 amps
ModelNumber : HD037
MountingType : PCB Mount
MountingType1 : surface
MountingType2 : din_rail
NationalStockNumber : 5920-01-162-2617
NumberOfItems : 5
NumberOfPoles : 10
NumberOfPositions : 10
PackageLevel : unit
PartNumber : HD037
ProductDescription : Work voltage: AC or DC 5~32V, total current rating 40Amp. Dimensions: 150mm x 72.5mm x 29mm (W x L x H).
Input terminals: pitch - 7.62mm/0.3", current 30A for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
P1 output terminals: pitch - 5.08mm/0.2", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw.
P2-1 to P2-10 output terminals: pitch - 7.5mm/0.295", maximum current 10A for per position, wire size 26~12 AWG, stripping length 7mm, Metric M2.5 slotted screw. Fuse holders for Medium Blade ATO/ATC Fuse, factory-installed fuses 5Amp. with fuse fail indication function.
FR-4 fiber glass PCB, dual copper layers.
ProductSiteLaunchDate : 2018-09-17T08:43:06.000Z
Size : with LED indicated
SpecificationMet : Sae
SpecificationMet1 : CSA
SpecificationMet2 : CE
SpecificationMet3 : UL
StreetDate : 2017-05-15T00:00:01Z
Style : 6pack-Grey
SupplierDeclaredDgHzRegulation : not_applicable
TerminalType : Non Fused Disconnect
UnitCount : 1
UnspscCode : 39121400
Voltage : 32 volts
