Specification
Brand : JVC
BulletPoint : Brass adjusting screw with forged T-Handle | Delrin insert bushing for durability, easier adjusting | Die forged brass spring housing cap provides greater strength and durability | Stem type seat mechanism | Stainless steel diaphragm gives accurate long lasting service | Stainless ball in key for easy adjustment | Adjusting spring pretested for quality assurance | Sintered inlet filter electroless nickel plated bronze | Precision machined nozzle for optimum flow control
BulletPoint1 : Delivery range is 4-80 PSIG
BulletPoint2 : Gauge range inlet is 4000 and the outlet is 100
BulletPoint3 : CGA inlet connection is 580 and the outlet connection is 5/8 inch - 18 F RH
BulletPoint4 : Maximum inlet pressure is 3000 PSIG
BulletPoint5 : Flow coefficient is 0.082 Cv
ExternallyAssignedProductIdentifier1 : 716352094696
ExternallyAssignedProductIdentifier2 : 0716352094696
ExternallyAssignedProductIdentifier3 : 00716352094085
Hazmat1 : DANGEROUS GOODS IN APPARATUS
Hazmat10 : EG_Unregulated
Hazmat11 : ES_Unregulated
Hazmat12 : FR_Unregulated
Hazmat13 : GB_Unregulated
Hazmat14 : IE_Unregulated
Hazmat15 : IN_Unregulated
Hazmat16 : IT_Unregulated
Hazmat17 : JP_Unregulated
Hazmat18 : MX_Unregulated
Hazmat19 : NL_Unregulated
Hazmat2 : UN3363
Hazmat20 : PL_Unregulated
Hazmat21 : SA_Unregulated
Hazmat22 : SE_Unregulated
Hazmat23 : SG_Unregulated
Hazmat24 : TR_Unregulated
Hazmat25 : US_Unregulated
Hazmat26 : ZA_Unregulated
Hazmat27 : 9
Hazmat3 : AE_Unregulated
Hazmat4 : AU_Unregulated
Hazmat5 : BE_Unregulated
Hazmat6 : BR_Unregulated
Hazmat7 : CA_Unregulated
Hazmat8 : CN_Unregulated
Hazmat9 : DE_Unregulated
IncludedComponents : Unit^Instruction Guide
ItemDisplayWeight : 0.338 kilograms

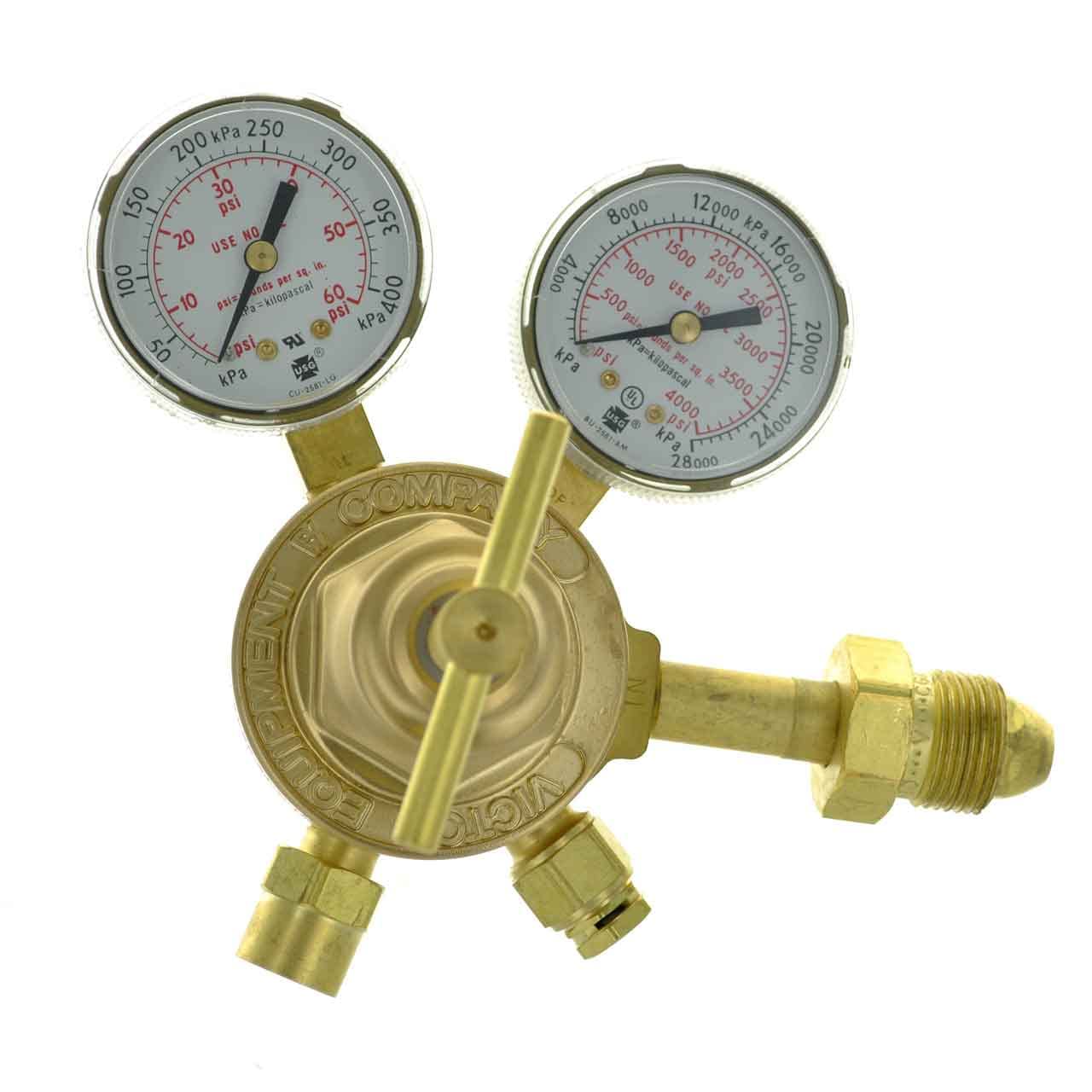

ItemName : VTS250B-580 Regulator
ItemPackageDimensions_Height : 8 inches
ItemPackageDimensions_Length : 7 inches
ItemPackageDimensions_Width : 8 inches
ItemPackageQuantity : 1
ItemTypeKeyword : welding-gas-regulators
Manufacturer : Victor
Material : Brass
ModelNumber : 0781-3508
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 0781-3508
ProductDescription : Victor 0781-3508 VTS 250 Series Two Stage Medium Duty Inert Gas Regulator (Model VTS250B-580) offers 2 - 40 PSIG delivery range and is ideal for applications that need a constant delivery pressure over a range of decreasing inlet pressures. Regulator with maximum inlet pressure of 3000 PSIG features die-forged brass body and spring housing cap for strength as well as durability. Regulator featuring 2" steel gauges has 4000 inlet gauge range and 60 outlet gauge range. Regulator has accurate two-stage regulation that offers high operating characteristics for applications where change in delivery pressure would impact performance characteristics of work or test results. Regulator with 580 CGA inlet connection and 5/8"-18 RH(F) outlet connection has 1.3", 1 3/4" fabric reinforced neoprene diaphragm that provides precise long lasting service. Two stage regulator is specifically suited for various medium to high capacity general-purpose applications that need accurate and uniform outlet pressures. Regulator with 0.082 Cv flow coefficient has electro less nickel plated bronze sintered inlet filter. Regulator comes with long-lasting Delrin insert bushing and stainless ball in key for easy adjustment. Regulator with adjusting spring is pretested for quality assurance and has precision-machined nozzle for maximum flow control. Regulator includes stem-type seat mechanism inlet pressure that helps in sealing and external self-reseating relief valve. Regulator measuring 6 1/2" X 6.13" X 5.63" delivers at least the stated upper range and in some cases may surpass the stated upper range. Recommended for applications that require a constant delivery pressure over a range of decreasing inlet pressures. This precise two stage regulation provides superior operating characteristics for applications where change in delivery pressure would affect performance characteristics of work or test results. Brass adjusting Screw with forged T handle (VTS 700 only). Delrin Insert Bushing
ProductSiteLaunchDate : 2004-11-09T05:00:01-00:00
Size : CGA 580
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 31161500
