Product Information
Editorial Review

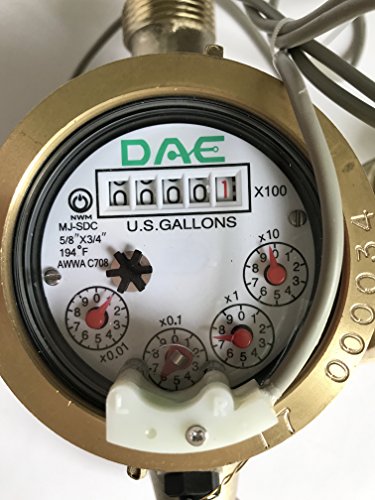

Type: NSF61 Certified, Lead-Free Hot Water Meter, 3/4" NPT Couplings at both ends, with Pulse Pulse/Reed Switch Output, Multi-Jet.Model: DAE MJ-75RMount: Horizontal Inline mount with dial facing upward.Unit: Totalizer Measuring in Gallon, GPMAccuracy: +/-1.5% within normal flow rate range as per AWWA StandardGallon Per Pulse: 1. The pulse emitter device consists of a plastic housing with Reed Switch and 1.5 m cable with 2 cores in red and black. Max. Voltage: 24VAC/DC, Max. Current: 0.01AMeter body: Lead-Free BronzeLength without couplings: 7.5 inches, Length with couplings: 11.5 inchesItem dimension: 7.5" length, 3.7" wide, 4.23" height. Weight: 3 lbs 10 once.Lead Free Couplings IncludedMax. Reading: 9,999,999 gallons, Min. Reading: 0.005 gallons, The last digit has a multiplier of 100 gallons. The reading on 6th picture of the listing is 97.61 gallons.Only two wire connection between water meter and AMR or AMR130.Max. working pressure: 150 psiMax temperature: 194ËsF (90ËsC)Conforms to AWWA C708.Safe Maximum Flow Rate: 20 GPM, Recommended Maximum Continuous Flow Rate: 10 GPM, Minimum Test Flow Rate: 0.25 GPM Normal Test Flow Limits: 1-20 GPMThe DAE meters have been tested by our QC inspectors in the production line to certify their quality. Therefore the reading will not be zero.The max. working pressure is 150 psi, the requirement from AWWA standard.Install meter in a location with at least 10 diameters of straight pipe at the inlet and 5 diameters at the outlet to assure proper flow profile to meter.2 year warranty from the seller.See DAE Controls website for more information.
Features
1) Cloud Metering available with DAE 2030 Gateway. DAE CC2030 gateway will get the water consumptions from DAE AMR (Auto Meter Reading Module with RS485 communication for 16 water meters with Pulse Output) or DAE AMR130 (for 1 meter) and send them to the cloud (DAE server) through Ethernet. With PC or cell phone or tablet, the building owners or property managers will therefore be able to get access to real time data as well as the monthly water consumption and billing reports to their tenants.
2) Factory calibration certificates available for government contracts.
3) Wireless remote reading available with DAE RF converters. If you are interested in cloud metering or wireless water management or looking for a large quantity, please contact us.
4) Ready for use with CO-10 Electronic Pulse Counter - An inexpensive remote reading solution. Ready for use with DAE AMR130 (http://www.amazon.com/dp/B01DCDH90U , Auto Meter Reading Module for single water meter) and AMR (http://www.amazon.com/dp/B01DBB8CQ8 , for 16 water meters) for remote reading
5) Most of our customers will be able to receive their items in 3 business days (Continental US). If you order by 4:30pm Eastern Time Monday through Friday and by 1pm Saturday, we shall deliver in the same day.
Specification
Brand : DAE
Color : Bronze
EAN : 0730707518361
Label : DAE Controls LLC
Manufacturer : DAE Controls LLC
Model : MJ-75R
ProductGroup : Home Improvement
ProductTypeName : HOME_LIGHTING_ACCESSORY
Publisher : DAE Controls LLC
Size : Small
Studio : DAE Controls LLC

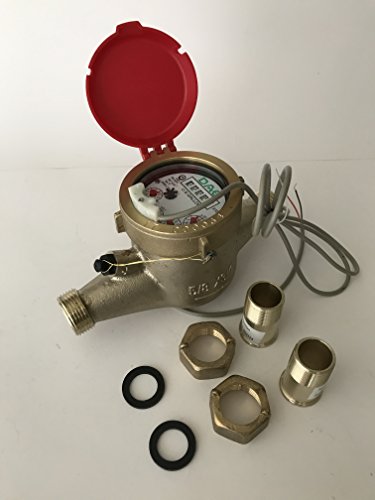

Title : DAE MJ-75R Lead Free Potable Water Meter, 3/4" NPT Couplings, Pulse Output, Gallon
Type: NSF61 Certified, Lead-Free Hot Water Meter, 3/4" NPT Couplings at both ends, with Pulse Pulse/Reed Switch Output, Multi-Jet.Model: DAE MJ-75RMount: Horizontal Inline mount with dial facing upward.Unit: Totalizer Measuring in Gallon, GPMAccuracy: +/-1.5% within normal flow rate range as per AWWA StandardGallon Per Pulse: 1. The pulse emitter device consists of a plastic housing with Reed Switch and 1.5 m cable with 2 cores in red and black. Max. Voltage: 24VAC/DC, Max. Current: 0.01AMeter body: Lead-Free BronzeLength without couplings: 7.5 inches, Length with couplings: 11.5 inchesItem dimension: 7.5" length, 3.7" wide, 4.23" height. Weight: 3 lbs 10 once.Lead Free Couplings IncludedMax. Reading: 9,999,999 gallons, Min. Reading: 0.005 gallons, The last digit has a multiplier of 100 gallons. The reading on 6th picture of the listing is 97.61 gallons.Only two wire connection between water meter and AMR or AMR130.Max. working pressure: 150 psiMax temperature: 194ËsF (90ËsC)Conforms to AWWA C708.Safe Maximum Flow Rate: 20 GPM, Recommended Maximum Continuous Flow Rate: 10 GPM, Minimum Test Flow Rate: 0.25 GPM Normal Test Flow Limits: 1-20 GPMThe DAE meters have been tested by our QC inspectors in the production line to certify their quality. Therefore the reading will not be zero.The max. working pressure is 150 psi, the requirement from AWWA standard.Install meter in a location with at least 10 diameters of straight pipe at the inlet and 5 diameters at the outlet to assure proper flow profile to meter.2 year warranty from the seller.See DAE Controls website for more information.
Features
1) Cloud Metering available with DAE 2030 Gateway. DAE CC2030 gateway will get the water consumptions from DAE AMR (Auto Meter Reading Module with RS485 communication for 16 water meters with Pulse Output) or DAE AMR130 (for 1 meter) and send them to the cloud (DAE server) through Ethernet. With PC or cell phone or tablet, the building owners or property managers will therefore be able to get access to real time data as well as the monthly water consumption and billing reports to their tenants.
2) Factory calibration certificates available for government contracts.
3) Wireless remote reading available with DAE RF converters. If you are interested in cloud metering or wireless water management or looking for a large quantity, please contact us.
4) Ready for use with CO-10 Electronic Pulse Counter - An inexpensive remote reading solution. Ready for use with DAE AMR130 (http://www.amazon.com/dp/B01DCDH90U , Auto Meter Reading Module for single water meter) and AMR (http://www.amazon.com/dp/B01DBB8CQ8 , for 16 water meters) for remote reading
5) Most of our customers will be able to receive their items in 3 business days (Continental US). If you order by 4:30pm Eastern Time Monday through Friday and by 1pm Saturday, we shall deliver in the same day.
Specification
Brand : DAE
Color : Bronze
EAN : 0730707518361
Label : DAE Controls LLC
Manufacturer : DAE Controls LLC
Model : MJ-75R
ProductGroup : Home Improvement
ProductTypeName : HOME_LIGHTING_ACCESSORY
Publisher : DAE Controls LLC
Size : Small
Studio : DAE Controls LLC
Title : DAE MJ-75R Lead Free Potable Water Meter, 3/4" NPT Couplings, Pulse Output, Gallon
