Specification
Brand : MIAOSHE
BulletPoint1 : Input Flange Model: 63B5/ 71B5/ 71B14/ 80B5/ 80B14
BulletPoint2 : NMRV050 Model Worm Gearbox Speed Reducer Output Bore Size: 25mm 0.99", Keyway 8mm ≈ 0.31"
BulletPoint3 : Input Bore Size: 11mm / 14mm /19mm
BulletPoint4 : Smooth and Quiet Operation: Experience seamless transmission with minimal noise, thanks to advanced engineering that ensures stable performance and low vibration.
BulletPoint5 : The output Bore exits at a perfect 90-degree angle, making it ideal for CNC machines, 3D printers, robotics, and industrial automation requiring superior torque for precise movements.
Color : One Color
Department : Unisex Adult
ExternallyAssignedProductIdentifier : 9366593182938
ExternallyAssignedProductIdentifier1 : 0722066132975
ExternallyAssignedProductIdentifier2 : 722066132975
ItemDisplayDimensions_Height : 100 centimeters
ItemDisplayDimensions_Length : 100 centimeters
ItemDisplayDimensions_Width : 100 centimeters
ItemDisplayWeight : 1.95 kilograms

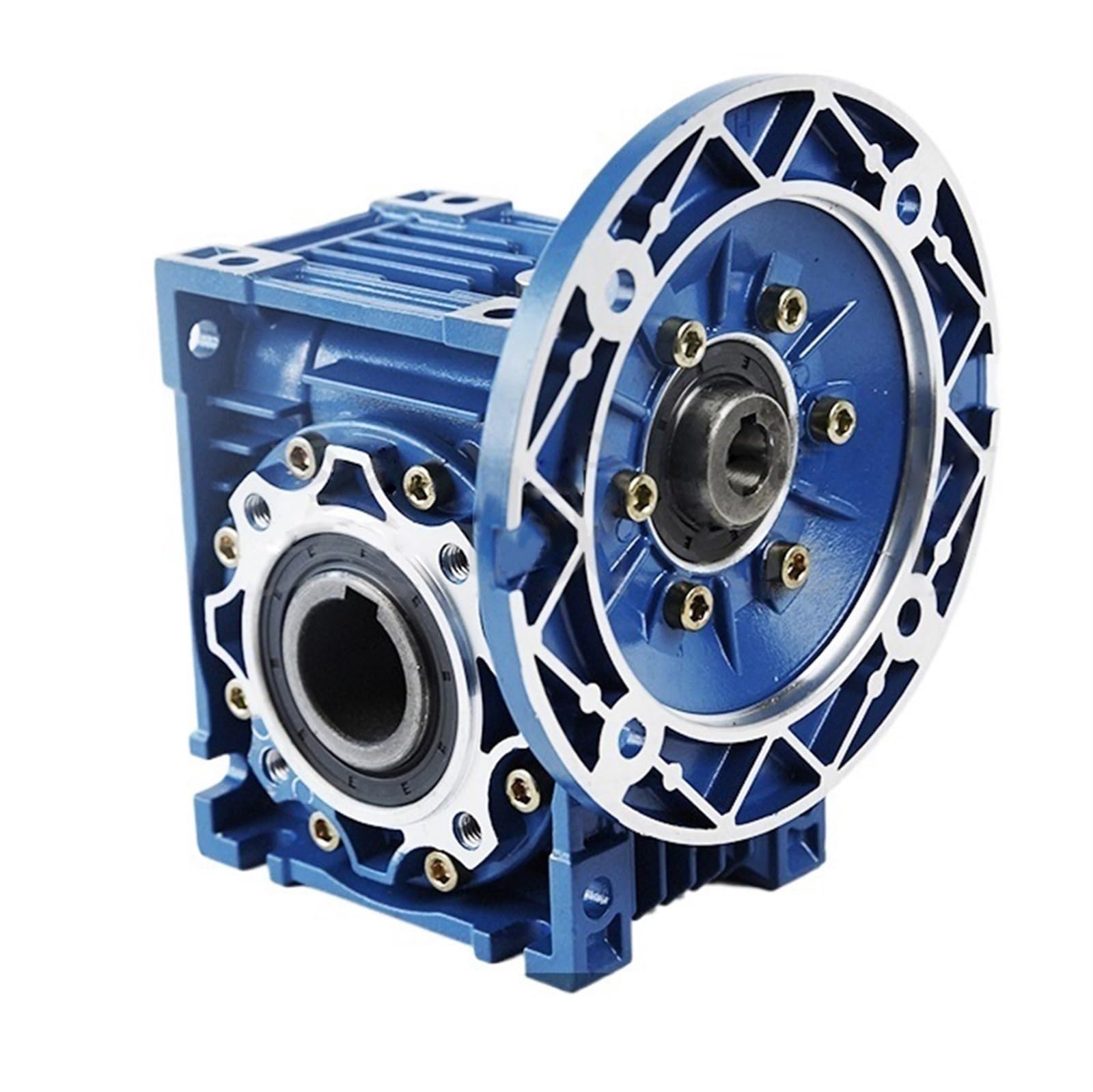

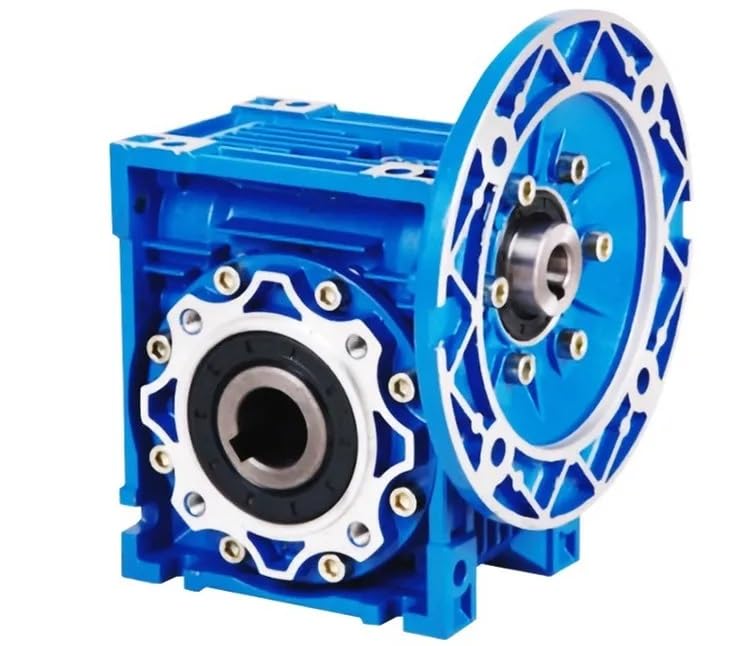

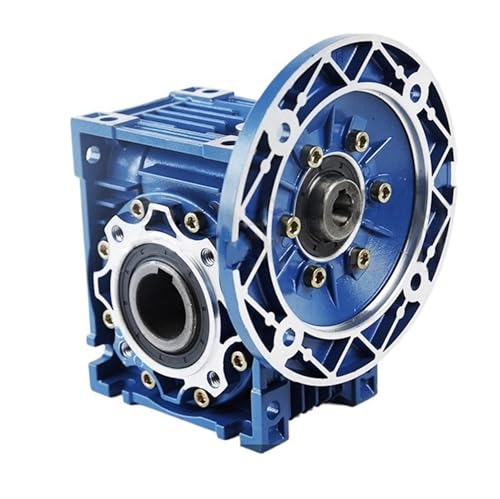

ItemName : Motor Reducer NMRV050 Worm Gear Gearbox 63B5 71B5 71B14 80B5 80B14 Round Flange 0.99" 25mm Output Hole Speed Reducer Reduction Machine(40 to 1 Input 80B14)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : mechanical-gearboxes
Manufacturer : MIAOSHE
ModelName : DYYUAMCDB-40TO1INPUT80B14
ModelNumber : DYYUAMCDB-40TO1INPUT80B14
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DYYUAMCDB-40TO1INPUT80B14
ProductDescription : Speed Ratio Range: 5/7.5/10/15/20/25/30/40/50/60/80/100, please choose the correct ratio you need.
NMRV050 Model Worm Gearbox Speed Reducer Output Bore Size: 25mm 0.99", Keyway 8mm ≈ 0.31"

Input Flange Model: 63B5
Input Bore Size: 11mm 0.43" keyway 4mm 0.16"
Input Flange Rabbet: 95mm ≈ 3.74"
Input Flange Pitch: 115mm ≈ 4.53"
Input Flange Outer diameter: 140mm ≈ 5.51",
Speed Ratio Range: 5/7.5/10/15/20/25/30 to 1,
Application: Matched with 63 Round Mounting 120W / 180W / 250W Motor

Input Flange Model: 71B14
Input Bore Size: 14mm 0.55" keyway 5mm 0.2"
Input Flange Rabbet: 70mm ≈ 2.76"
Input Flange Pitch: 85mm ≈ 3.35"
Input Flange Outer diameter: 105mm ≈ 4.13"

Input Flange Model: 71B5
Input Bore Size: 14mm 0.55" keyway 5mm 0.2"
Input Flange Rabbet: 110mm ≈4.33"
Input Flange Pitch: 130mm ≈ 5.12"
Input Flange Outer diameter: 160mm ≈ 6.30"
Speed Ratio: 100 to 1,
Application: Matched with 70 Round Mounting 250W / 370W / 550W / 750W Motor

Input Flange Model: 80B14
Input Bore Size: 19mm 0.75" keyway 6mm 0.24"
Input Flange Rabbet: 80mm ≈ 3.15"
Input Flange Pitch: 100mm ≈ 3.94"
Input Flange Outer diameter: 120mm ≈ 4.70"

Input Flange Model: 80B5
Input Bore Size: 19mm 0.75" keyway 6mm 0.24
Input Flange Rabbet: 130mm ≈5.11"
Input Flange Pitch: 165mm ≈ 6.5"
Input Flange Outer diameter: 200mm ≈ 7.87"
Speed Ratio: 40/50/60/80/100 to 1,
Application: Matched with 80 Round Mounting 550W / 750W Motor

Attention: These all ratios are non-standard reduction ratios for NMRV050 63B5/71B5/71B14/80B5/80B14 gearbox, So They need to be customized, Might not be the optimal reduction ratio for your motor if you mind, You can choose another models of NMRV reducer to achieve the best matching conditions(Or yo
ProductSiteLaunchDate : 2024-10-30T02:24:12.387Z
Size : 40 to 1 Input 80B14
UnitCount : 1
UnspscCode : 26111500
