Specification
Brand : QTSEGSEE
BulletPoint1 : Industrial Motors
BulletPoint2 : Nema 14 gear ratio 20:1 high precision gearbox stepper motor reducer with magnetic encoder
Color : One Color
ExternallyAssignedProductIdentifier : 9010064496498

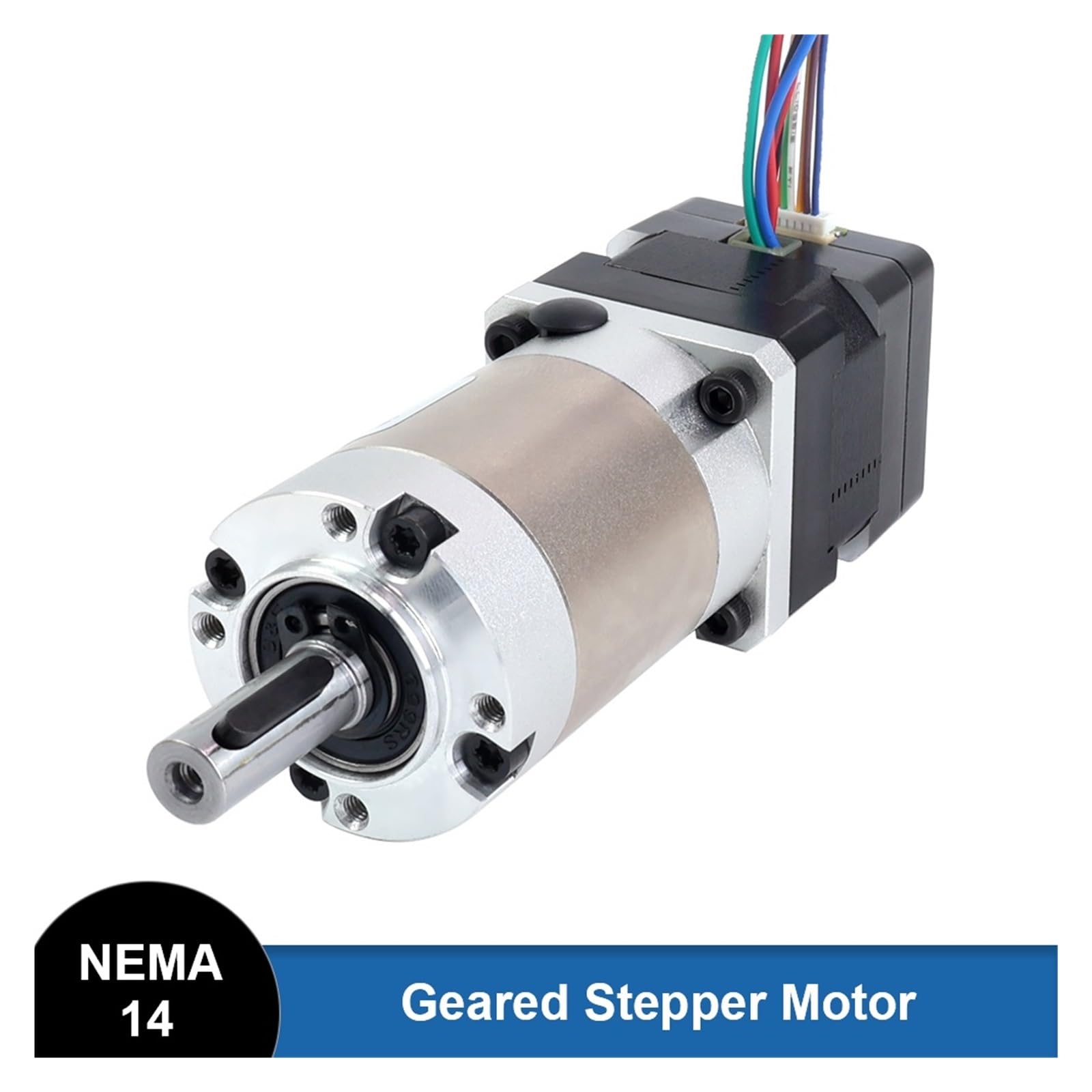

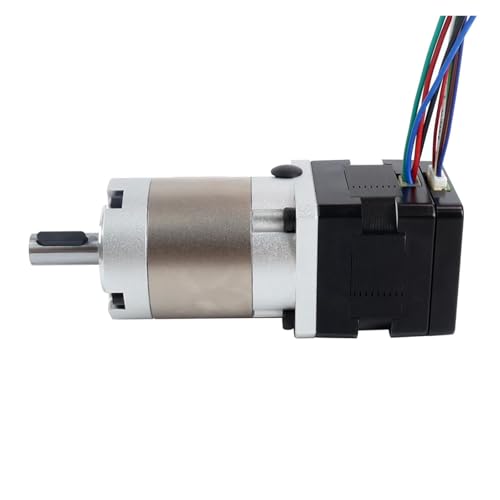

ItemName : Nema 14 gear ratio 20:1 high precision gearbox stepper motor reducer with magnetic encoder
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : mechanical-gearboxes
Manufacturer : QTSEGSEE
ModelName : QTSEGSEE
ModelNumber : QTSEGSEE
NumberOfItems : 1
PartNumber : QTSEGSEE
ProductDescription : Industrial Motors
This motor is an upgraded version of the 14HS11-1004D-PG19-AR4 motor. It is the J6 motor in the AR4-3 kit. It integrates a high-precision planetary reducer with a 20:1 reduction ratio and a 3-channel 1000PPR (4000CPR) resolution encoding. It has higher precision and can also meet the higher requirements of other applications.
Manufacturer Part Number: 14HS11-1004D-EGS20-AR4
Motor Type: Bipolar Stepper
Step angle: 1.8 degrees
Holding torque without gearbox: 12.5Ncm (17.7oz.in)
Rated current/phase: 1.0A
Phase resistance: 3.5os
Inductance: 3.5mH±20% (1KHz)
Gearbox type: planetary
Gear ratio: 20:1
Efficiency: 94%
<;=20 cents
Maximum allowable torque: 8.5Nm (1203.7oz.in)
Allowable torque: 17Nm (2407.4oz.in)
Ambient temperature: -10 - 500°C (14°F~122°F)
Insulation grade: B
Temperature rise: up to 80°C
Body length: 77.5mm
Motor length: 28mm
Gearbox length: 49.5mm
Front axle diameter: 8mm
Front axle length: 20mm
Keyway length: 12mm
Number of leads: 4
Lead length: 500mm
Weight: 0.38kg
Output circuit type: Differential
Encoder type: Magnetic incremental
Encoder resolution: 1000PPR (4000CPR)
Output signal channel: 3 channels
Minimum supply voltage: 3.3V
Maximum supply voltage: 5.5V
Output current: 20mA
Output high voltage: 5V
Output low voltage: 0.2V
Maximum output frequency: 400kHZ
Motor and encoder connections
==========
Gear ratio: 20:1
Current/Phase: 1.0A
Holding torque: 12.5Ncm (17.7oz.in)
Step angle (degrees): 1.8 degrees
Model: 14HS11-1004D-EGS20-AR4
Certification: ce, ROHS
Origin: Mainland China
Motor Type: Bipolar Stepper
Gearbox type: planetary
ProductSiteLaunchDate : 2024-10-22T08:45:03.381Z
Size : One Size
UnitCount : 1
UnspscCode : 26111500
