Specification
AgeRangeDescription : adult
Brand : KACOME
BulletPoint1 : Stability: Can be used stably for a long time
BulletPoint2 : Design: Robust design, easy to maintain
BulletPoint3 : Easy to install: simple operation, easy to install
BulletPoint4 : Application Scenario:Widely used in many industrial environments
BulletPoint5 : Correct use:Correct use can extend the service life of the product
Color : Ratio 100 to 1
ExternallyAssignedProductIdentifier : 7684581992553

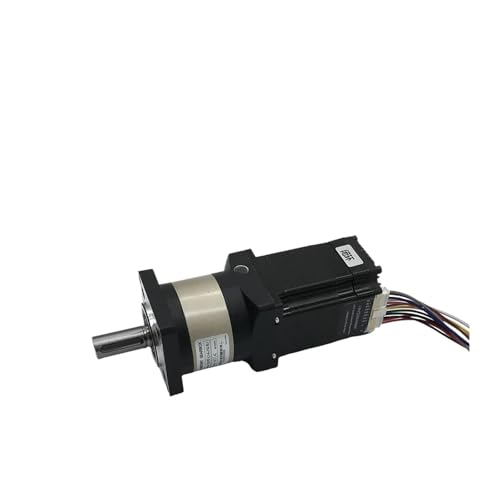

ItemName : Planetary Gearbox 57 Motor TB6600 Driver Kit Ratio 4~100 14mm Output Nema23 Open Loop/Closed-Loop Stepper Motor Reducer(All-in-one Kit,Ratio 100 to 1)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : mechanical-gearboxes
Manufacturer : KACOME
ModelName : KACOME
ModelNumber : KACOME
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : KACOME

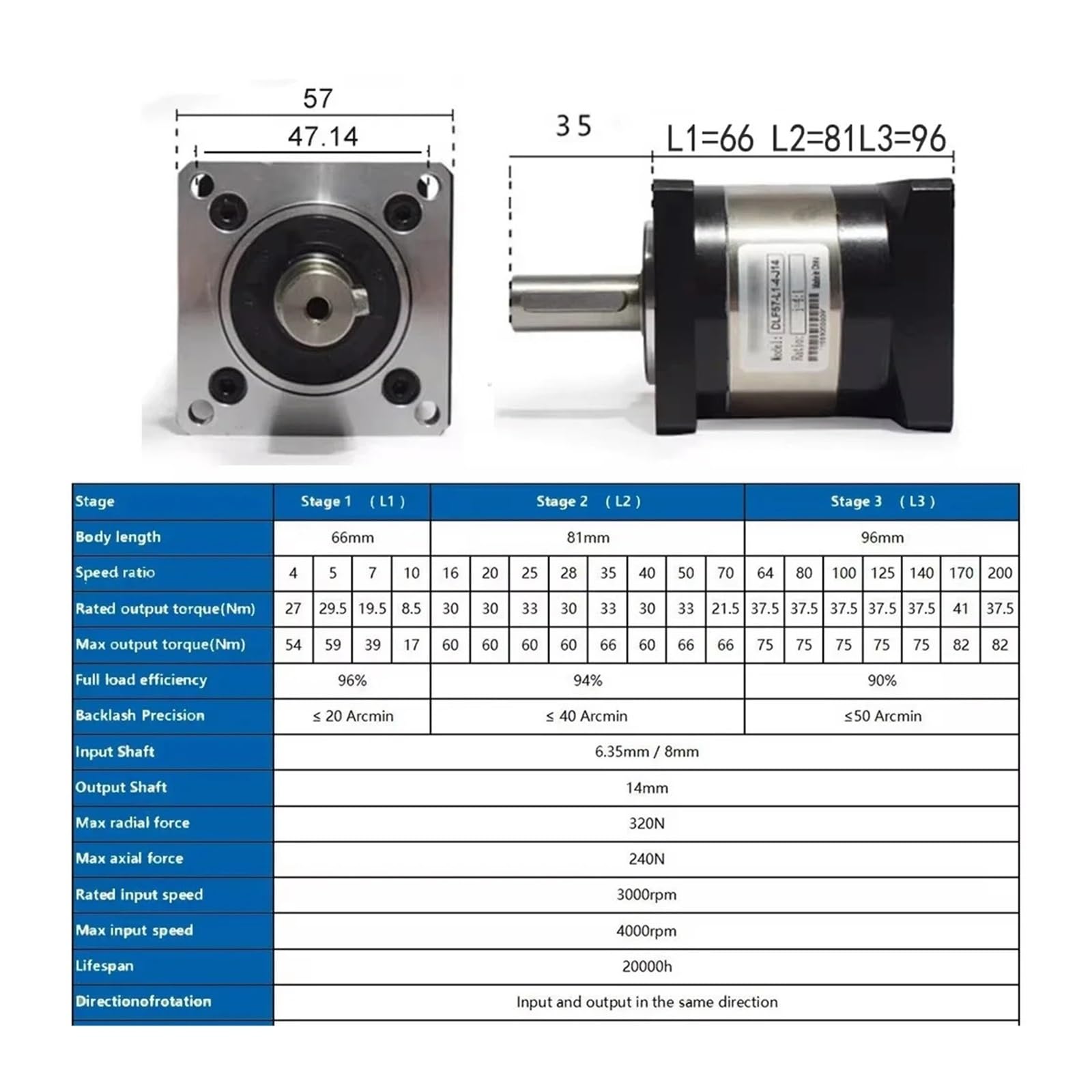

ProductDescription : Reducer parameters :
Input shaft: 6.35 mm (1/4 inch) / 8 mm
Output shaft: 14 mm
Maximum force: 320N
Maximum axial force: 240N
Speed ratio
Level 1 (L1): 4:1 / 5:1 / 7:1 / 10:1
Level 2 (L2): 16:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1
Level 3 (L3): 100:1
Rated output torque
8Nm (10:1);
19Nm (7:1);
27Nm (4:1);
29Nm (5:1);
30Nm (16:1 / 20:1 / 40:1);
33Nm (25:1 / 35:1 / 50:1);
37Nm (100:1);
Body length: L1=66mm, L2=81mm L3=96mm
Full load efficiency: L1 95%, L2 90%, L3 87
Maximum input speed: 4000 rpm
Rated input speed: 3000 rpm
Service life: 20,000 hours
Gap accuracy: L1 20 Arcmin , L2 40 Arcmin , L3 50 Arcmin L1 20 Arcmin , L2 40 Arcmin , L3 50 Arcmin
Nema 23 stepper motor parameters:
Motor type Hybrid stepper motor
Stepping angle: 1.8
Phase: 2 phase 2 phase
Current: 3A
Holding torque (body length): 1.2Nm (56mm) 1.2 Nm (56mm)
Drive specification:
Model TB6600
Adapted motor 42mm/57mm flange stepping motor
Input voltage: DC 9-42V
Input/Output Current: 0.5-3.5A
Maximum power: 150W
Subdivision: 1,2,4,8,16,32
1.Flange NEMA23 57MM
2. Stepping angle: 1.8 degrees
3.Phase 2PH
4. Holding torque: 2N.M
5. Motor length: 80MM
6. Rated speed: 1000RPM
7. Encoder: 1000 lines
8.Resistance 0.7(Ohm)
9.Inductance: 2mH
10.Insulation class B
Drive parameters
1.Model HB808C
2.Type DSP Closed Loop Stepper Driver
3.Maximum peak current: 13A
4. Impulse response frequency: 200KHz
5. Micro-stepping driver: 200~25600ppr
6. Input voltage: 24-80VDC
ProductSiteLaunchDate : 2025-05-06T01:03:52.819Z
Size : All-in-one Kit
UnitCount : 1
UnspscCode : 26111500
