Specification
Brand : TFCFL
BulletPoint1 : 【High Quality Material】The 86 stepper motor reducer gearbox 6:1 is made of high quality cast aluminum and 45# steel, hobbing processing, wear-resistant, impact-resistant, rust-resistant, which well protects the internal parts and ensures a longer service life. The rectangular base increases the contact area with the flat surface to ensure its stability when working
BulletPoint2 : 【Precise Speed Adjustment】The 86 stepper motor reducer gearbox has a 6:1 reduction ratio, you can change the motor speed more easily. Its input shaft and sun wheel are of one-piece construction, which provides higher precision and concentricity, and withstands greater torque, thus providing greater accuracy and stability
BulletPoint3 : 【Low Noise Design】The optimized gear design and lubrication mechanism can reduce the noise level during operation(≤ 70dB), creating a quieter working environment for you
BulletPoint4 : 【Easy Maintenance】The stepper motor planetary gearbox supports disassembly-free external maintenance, which reduces downtime and maintenance costs and increases productivity. The bearings at both ends also act as dust protection, relieving you of the burden of maintenance
BulletPoint5 : 【High Compatibility】The bottom standard interface makes it easy to connect with stepper motors, simplifying the installation process and shortening the equipment commissioning time. It is mainly used to reduce the speed of 86 stepper motors and increase holding torque. It is widely applied in CNC machines, such as engraving machines, mills, lathes, work benches, benches, bandsaw machines, grinding machines, etc.
Color : One Color
ExternallyAssignedProductIdentifier : 7619005918437
IncludedComponents : 1* 86 Stepper Motor Reducer Gearbox, Other Accessories Required for Installation

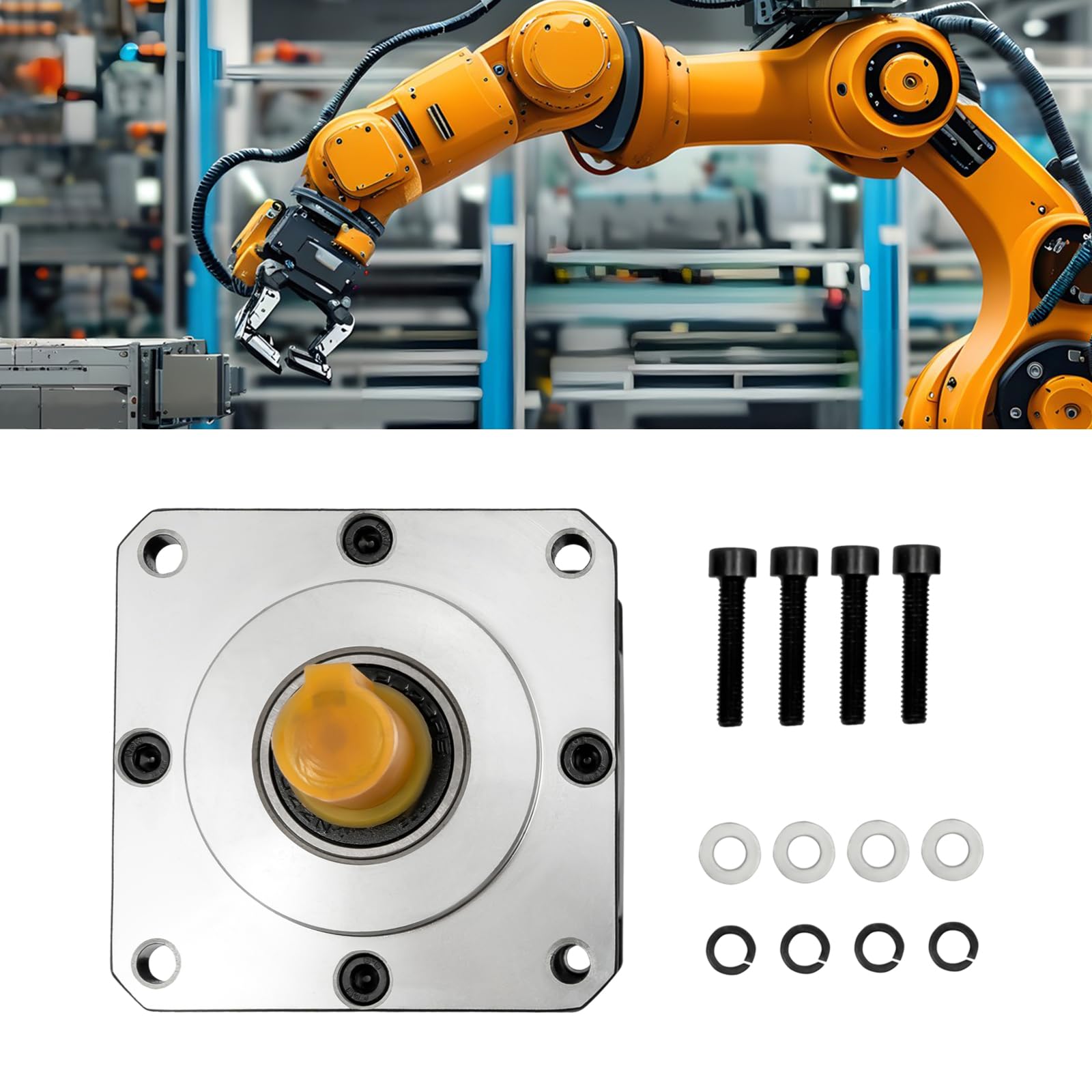

ItemName : TFCFL Stepper Motor Planetary Gearbox, 86 Stepper Motor Reducer Gearbox 6:1 for 86 Stepper Motor, Speed Reducer for 86 Stepper Motor, Input Speed 100-3000rpm, Output Speed 16-500rpm
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : mechanical-gearboxes
Manufacturer : TFCFL
Material : Cast Aluminum, 45#Steel
ModelName : Stepper Motor Planetary Gearbox
ModelNumber : Speed Reducer
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : 86 Stepper Motor Reducer Gearbox
ProductDescription :

Details

Smooth Edges: The smooth and burr-free edges enhance the beauty of the product and ensure your safety when installing and cleaning it.

Positioning Pin: The horizontal structure and positioning pin make your installation more convenient and efficient.

Rectangular Base: It increases the contact area with the plane to ensure its stability when working.



Application

It is mainly used to reduce the speed of 86 stepper motors and increase holding torque. It is widely applied in CNC machines, such as engraving machines, mills, lathes, work benches, benches, bandsaw machines, grinding machines, etc.



Specifications

Material: Cast Aluminum, 45#Steel

Process: Hobbing

Color: Black

Style: Modern

Assembly Required: No

Installation Form: Vertical

Gear Type: Cylindrical Gear Reducer

Input Speed: 100-3000rpm

Output Speed: 16-500rpm

Max. Holding Torque: 40N·m

Reduction Ratio: 6:1

Operating Noise: ≤ 70dB

Input Hole Spacing: 69.6mm/2.74in

Output Hole Spacing: 70mm/2.76in

Product Size: 8.6*8.6*11.1cm/ 3.39*3.39*4.37in

Package Size: 11*11.5*13cm/4.33*4.53*5.12in

Gross Weight: 1.8kg/3.97 lbs

Net Weight: 1.76kg/3.88 lbs



Package Included

1* 86 Stepper Motor Reducer Gearbox

Other Accessories Required for Installation

Notes

1. Please note that the output shaft is not recommended to be disassembled by non-professionals.

2. Please note that the gear reducer output shaft-mounted fittings shall not be knocked downward with force to avoid excessive up-and-down tampering. When installing the circular gearbox, the length of the mounting screws should be controlled, and the screws screwed in too long will damage the internal structural parts of the box.

3. Please note that the reducer must not be rotated directly on the output, which may cause internal gear breakage.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

ProductSiteLaunchDate : 2024-11-05T05:25:14.008Z
Size : Onesize
Speed : 3000 rpm
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnitCount : 1
UnspscCode : 26111500
WarrantyDescription : 12 Months
