Specification
AgeRangeDescription : Adult
Brand : SPARKHOBBY
BulletPoint1 : SAM-M10Q uses multi-constellation GNSS module powered by SAM-M10Q-00B.
BulletPoint2 : The SAM-M10Q features the M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. SAM-M10Q supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals.
BulletPoint3 : This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.
BulletPoint4 : The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.The default configuration on SAM-M10Q-00B with FW 5.1 is concurrent reception of GPS, Galileo, GLONASS, and BeiDou B1C with QZSS and SBAS enabled.
BulletPoint5 : NEO-M9N, MAX-M10S, SAM-M10Q series all don't have dataflash built in. once GNSS is powered off and the supercapacitor run out. the settings will back to default.UBX(ublox) protocol is bidirectional. Flight controller firmware can change settings on GPS via UBX(ublox)-protocol. You don't need to set GNSS module Baud and Frequency in u-center.
Color : Black
ConnectivityTechnology : USB
ControlMethod : touch
CpsiaCautionaryStatement : no_warning_applicable
Edition : 2.4.8
ExternallyAssignedProductIdentifier1 : 0712096465419
ExternallyAssignedProductIdentifier2 : 712096465419
HumanInterfaceInput : unknown
Impedance : 50 ohm
IncludedComponents : M8N GPS Module with GPS Antenna Mount
IncludedComponents1 : Pixhawk Board
IncludedComponents10 : Foam Adhesive
IncludedComponents11 : Quick Start Guide Book
IncludedComponents2 : Power Module
IncludedComponents3 : Safety Switch
IncludedComponents4 : Buzzer
IncludedComponents5 : 8GB SD Card
IncludedComponents6 : Micro USB Data Cable
IncludedComponents7 : DuPont Wire
IncludedComponents8 : 4 Pin Wire
IncludedComponents9 : 6 Pin Wire
IsAssemblyRequired : 1

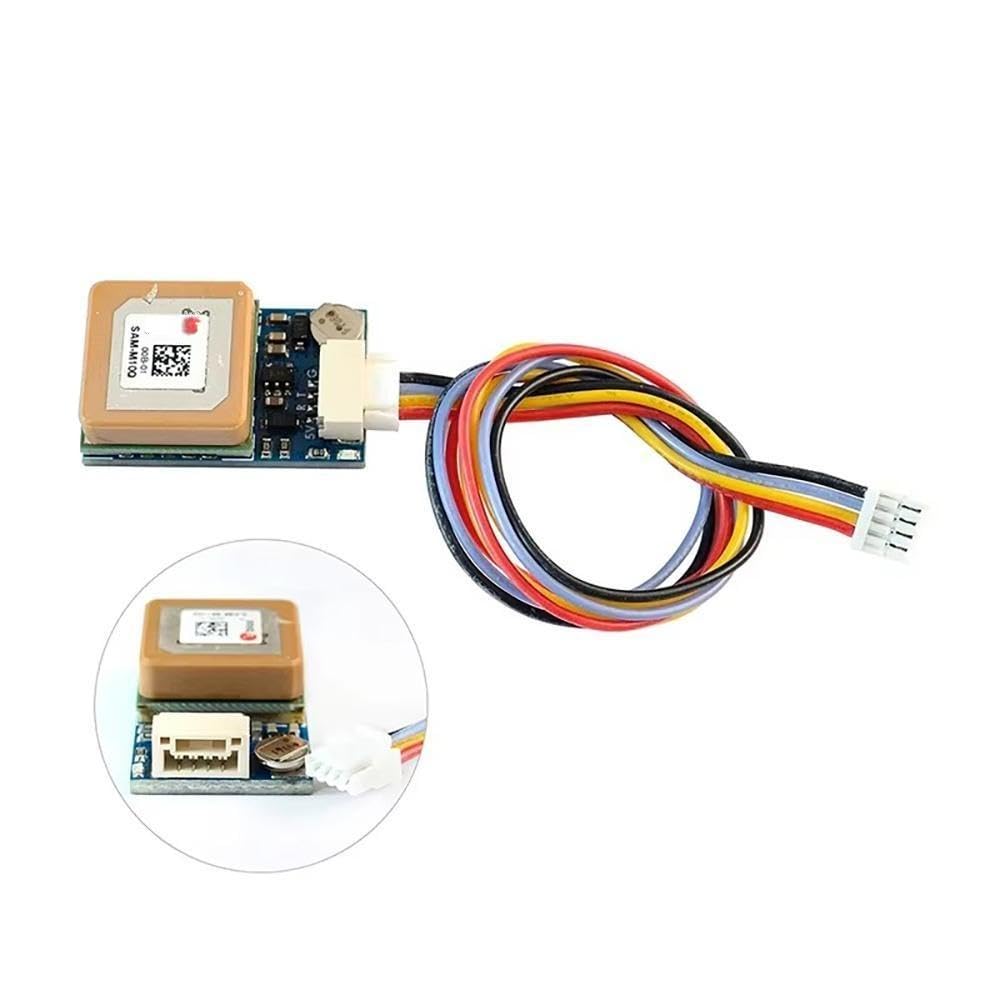

ItemName : SPARKHOBBY SAM-M10Q GNSS for Matek Systems GPS Module for RC FPV Racing Drone Long Range Parts (1PC SAM-M10Q)
ItemPackageDimensions_Height : 17.1 centimeters
ItemPackageDimensions_Length : 4.7 centimeters
ItemPackageDimensions_Width : 9.6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : hobby-rc-autopilot-and-gps-systems
Manufacturer : Matek Systems
ManufacturerMinimumAge : 8
MapType : Satellite
Material : Plastic
Material1 : Plastic
Material2 : Metal
ModelName : Pixhawk 2.4.8
ModelNumber : 64203
MountingType : Panel Mount
NumberOfChannels : 1
NumberOfItems : 1
OperationMode : Manual
PartNumber : SAM-M10Q 002

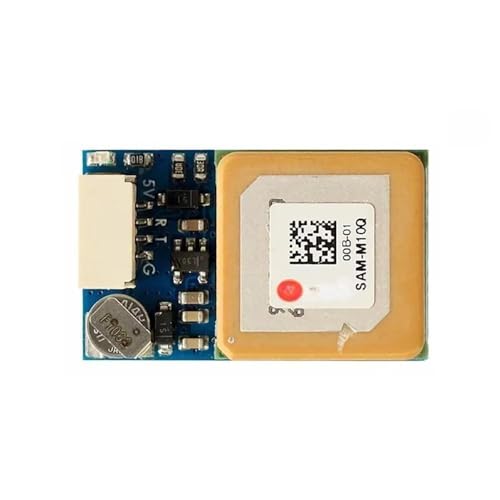

ProductDescription : Item: GNSS, SAM-M10Q

Specifications:
GNSS SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)
No Magnetic Compass built-in
Patch antenna 15*15*4mm
Input voltage range: 4~9V (5V pad/pin)
Power consumption: 10mA
UART baudrate: 9600 default
Operating Temperatures: -20~80 °C
UART(TX, RX) interface for GNSS SAM-M10Q-00B
JST-GH-4P connector (SM04B-GHS-TB). 1.27mm pitch
GNSS PPS LED, Green. (Solid ON after powering on,  blinking(1Hz) when GNSS get 3D fix)
Protocol: UBX(ublox)  5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
26mm*16mm*8mm
7.5g
Includes:
1x SAM-M10Q
1x JST-GH-4P to JST-GH-4P 20cm silicon wire

Wiring and settings:
SAM-M10Q 5V  to Flight controller 4~9V
SAM-M10Q RX to Flight controller UART_TX
SAM-M10Q TX to Flight controller UART_RX
SAM-M10Q G   to Flight controller GND

Tips and Notes
INAV 5.0.0, Betaflight 4.3.0,  ArduPilot 4.3 or newer is required.
Start with UBX(ublox) GNSS FW3.01, timepulse is aligned with UTC time and that time is set valid only after leap second is downloaded. That could take up to 12.5 min. Probably PPS LED will not blink immediately after GPS has 3D fixed.
The SAM-M10Q provides the ability to reset the receiver. Bridging "RST" pad to Ground for at least 100 ms will trigger a cold start. RESET will delete all information and trigger a cold start. It should only be used as a recovery option. If you are sure wiring and setup are all right. but flight controller can't detect the GNSS module(grey GPS icon), try doing reset.
The scratches on ceramic antenna are the result of tuning the antenna.
ProductSiteLaunchDate : 2025-01-10T02:07:33.556Z
RemoteControlTechnology : S.BUS / PPM / Spektrum
Size : Pixhawk
SkillLevel : Beginner
Style : 1PC SAM-M10Q
SupplierDeclaredDgHzRegulation : not_applicable
TargetAudienceKeyword : boys
TargetAudienceKeyword1 : boys
TargetAudienceKeyword2 : unisex-children
TargetGender : unisex
Theme : Electronics, Hobbyist
UnspscCode : 43220000
